Removal and Installation: Removal

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect negative battery terminal and positive battery terminal.
    CAUTION: When removing, remove negative battery terminal first.
  2. Remove battery fix frame mounting nuts and battery fix frame.
  3. Remove battery cover.
  4. Remove battery.

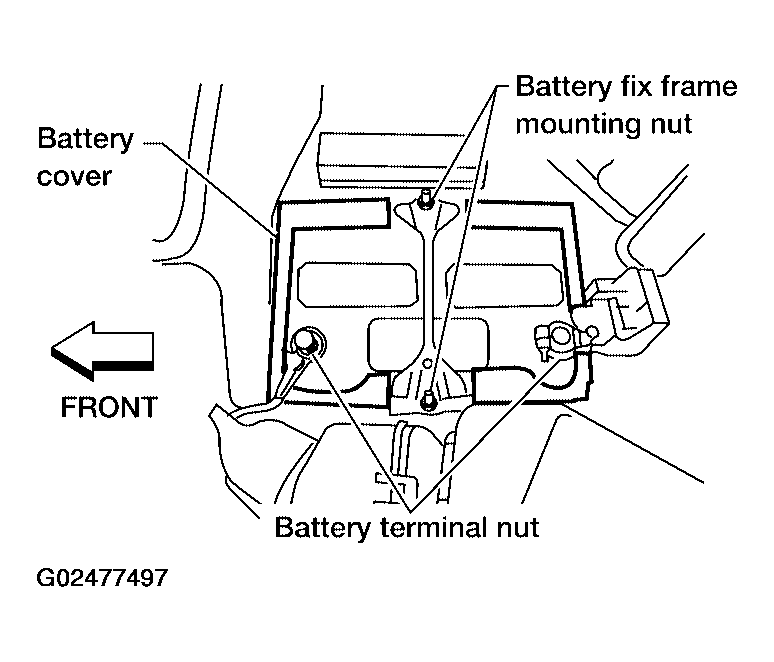

    Fig 1: Removing Battery
    G02477497Courtesy of NISSAN MOTOR CO., U.S.A.
