Fuse Block-Junction Box (J/B)

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For fuse block-junction block fuse and relay arrangement, see Fig 1 .

The fuse block-junction box (J/B) is located behind left side of dash.

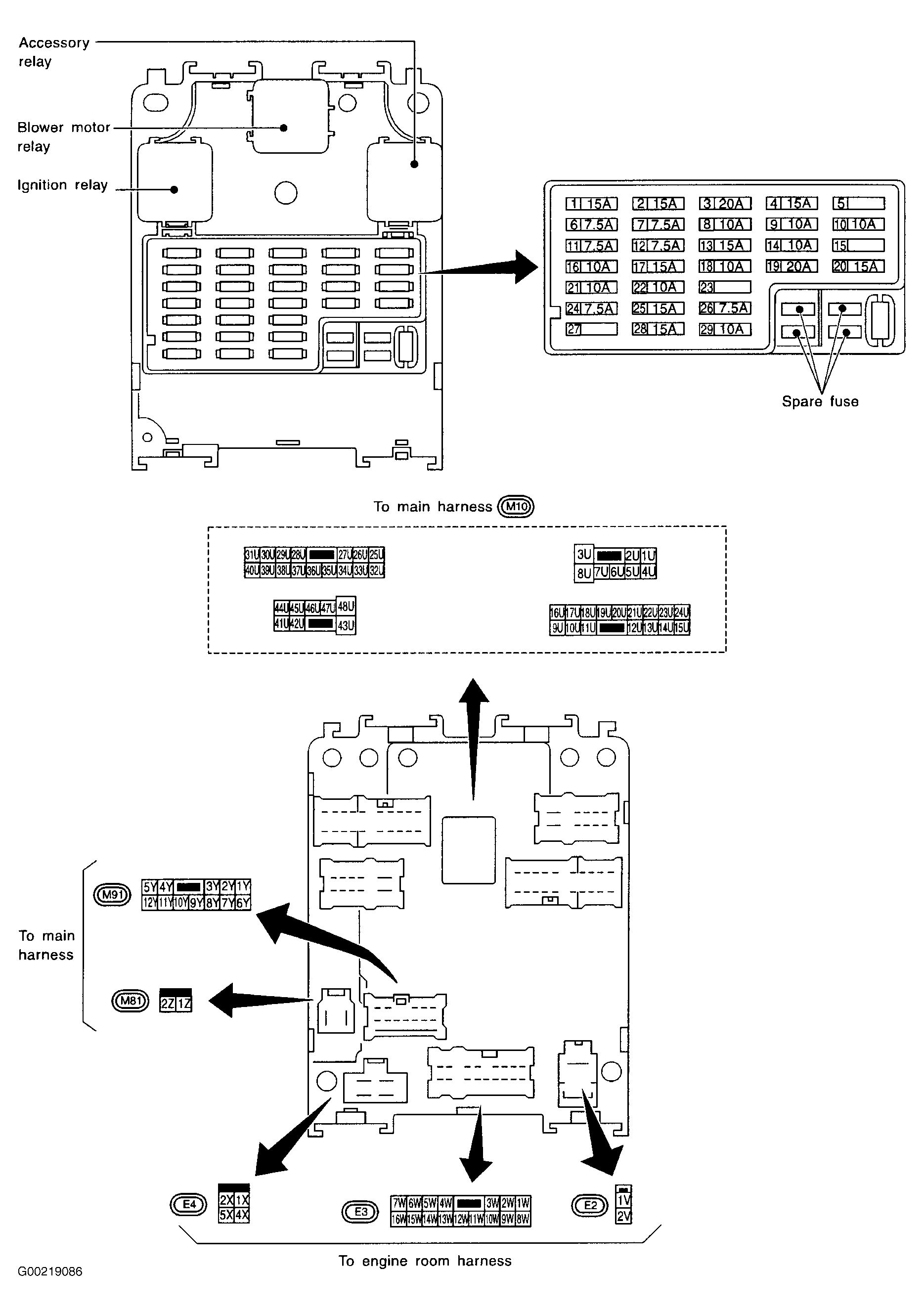

Fig 1: Identifying Fuse-Block Fuse, Relay & Connector Terminal Arrangements

Courtesy of NISSAN MOTOR CO., U.S.A.
