Fuse & Fusible Link Box

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For fuse and fusible link box fuse and link arrangement, see Fig 1 .

The fuse and fusible link box is located under the hood, next to the right strut tower.

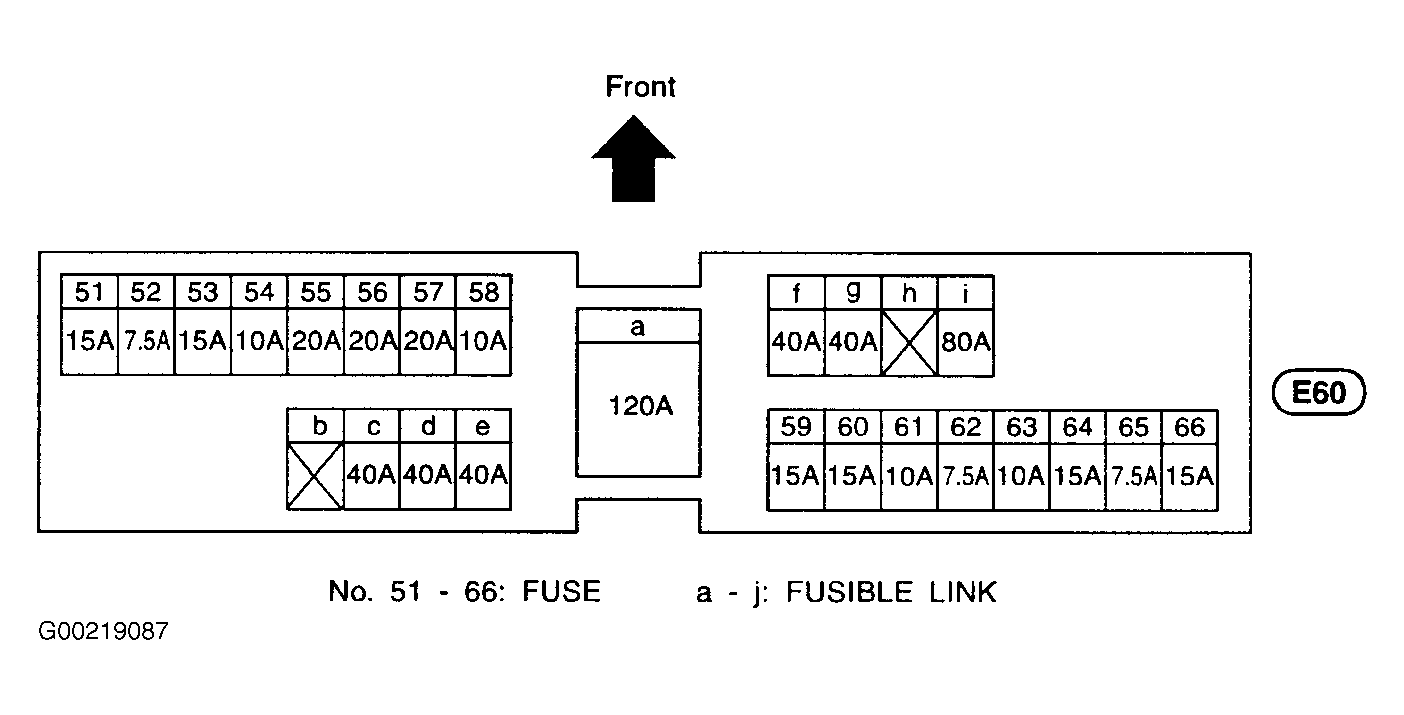

Fig 1: Identifying Fuse & Fusible Link Arrangement

Courtesy of NISSAN MOTOR CO., U.S.A.
