How To Alternate Diagnosis Mode

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 for alternating diagnosis mode.

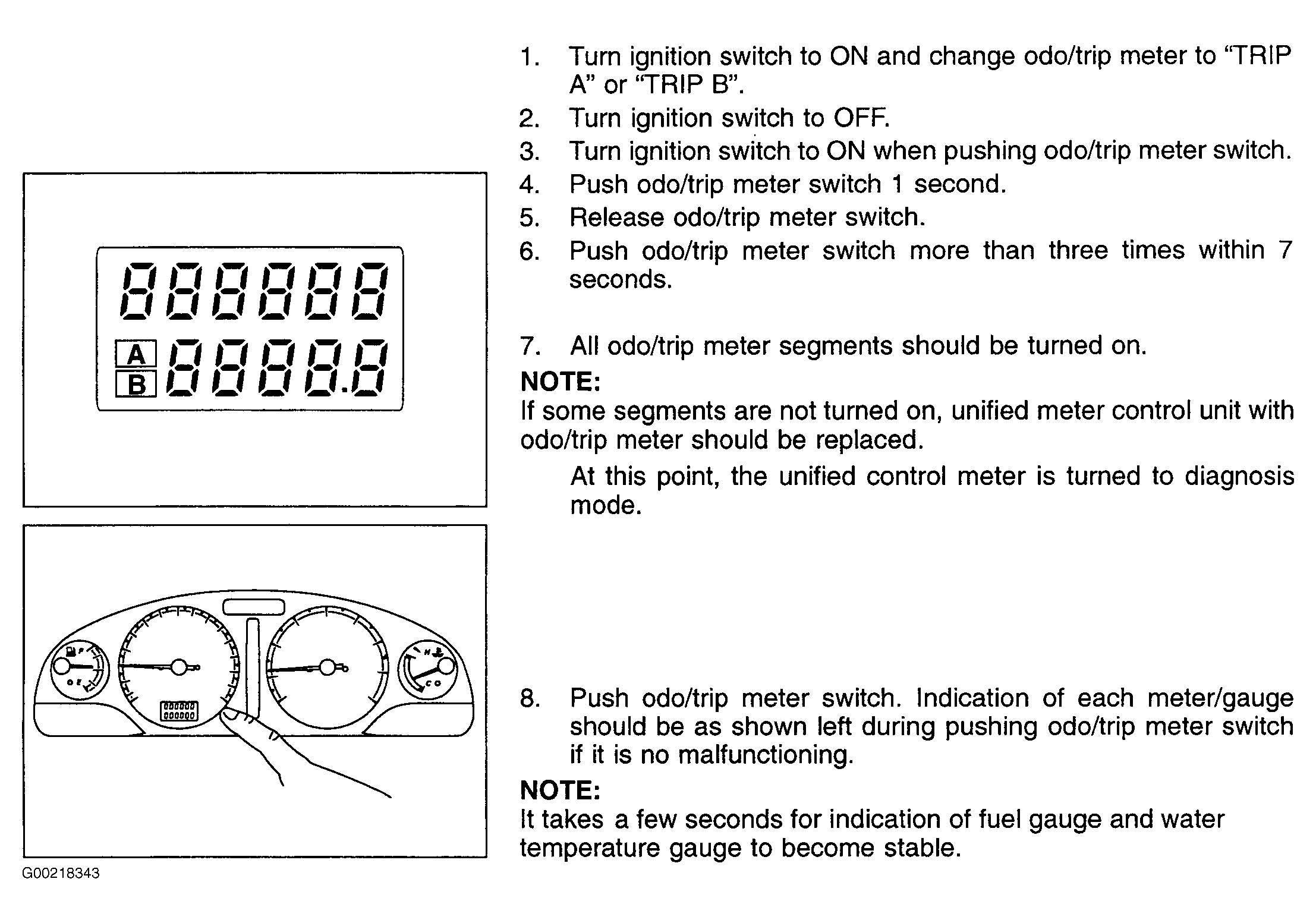

Fig 1: Identifying How To Alternate Diagnosis Mode
G00218343Courtesy of NISSAN MOTOR CO., U.S.A.
