Consult-II Function (Warning Chime)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For CONSULT-II inspection procedure, see Fig 1.

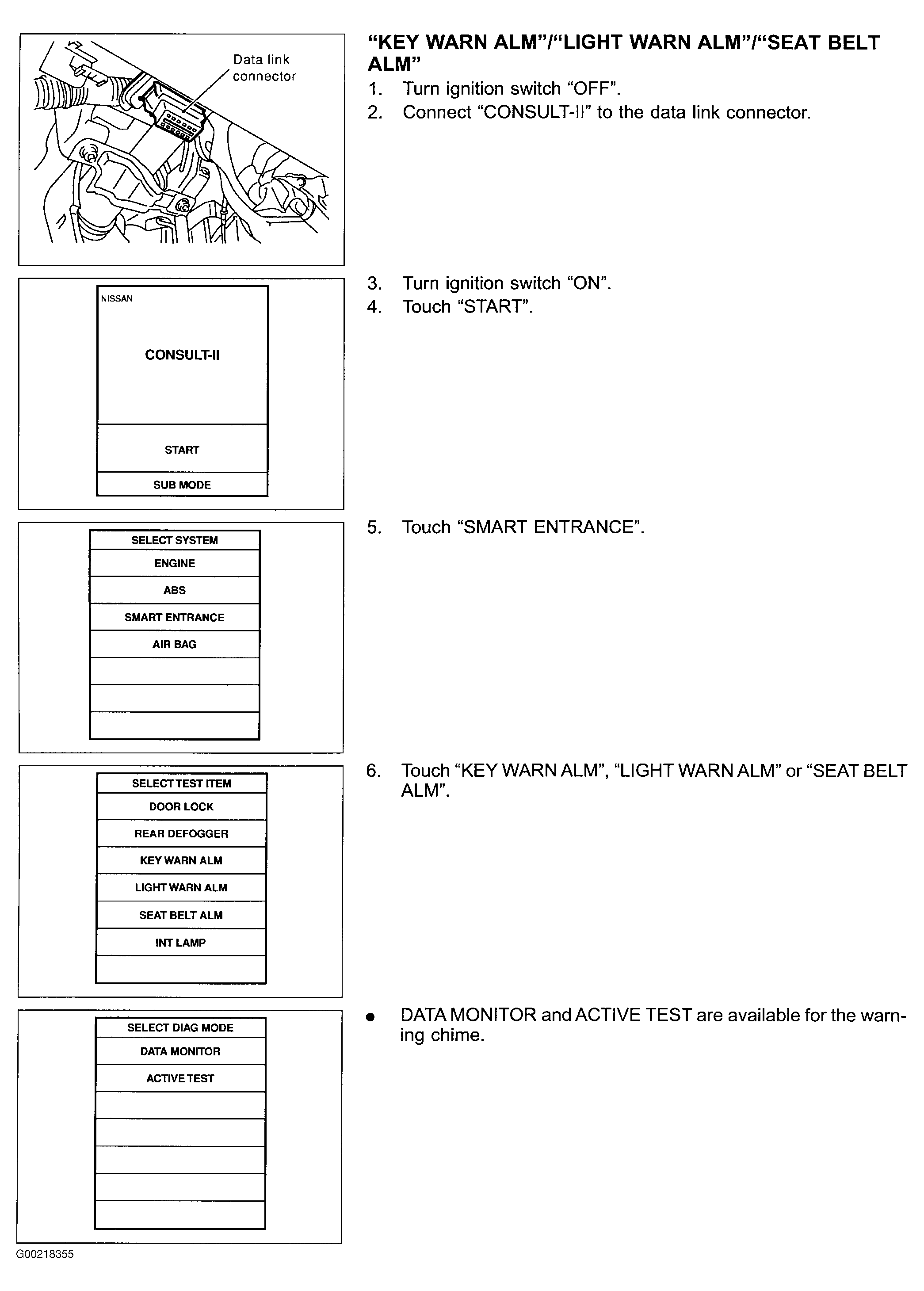

Fig 1: Identifying CONSULT-II Inspection Procedure

Courtesy of NISSAN MOTOR CO., U.S.A.
