Power Supply & Ground Circuit Tests (Warning Chime)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For power supply and ground circuit tests (warning chime), see Fig 1.

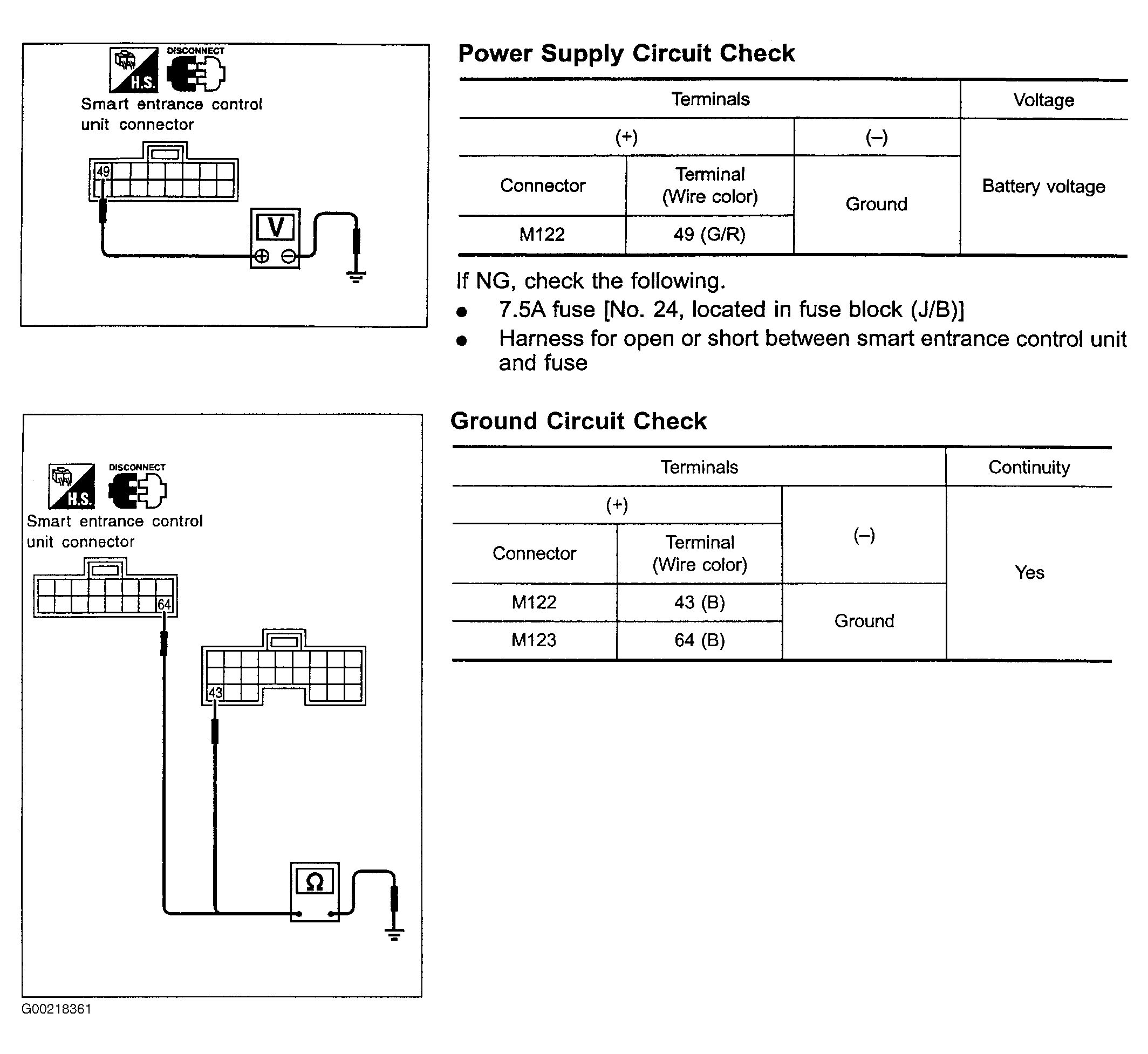

Fig 1: Identifying Power Supply & Ground Circuit Tests (Warning Chime)
G00218361Courtesy of NISSAN MOTOR CO., U.S.A.
