Power Supply & Ground Circuit Tests (Unified Control Meter)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For power supply and ground circuit tests (unified control meter), see Fig 1.

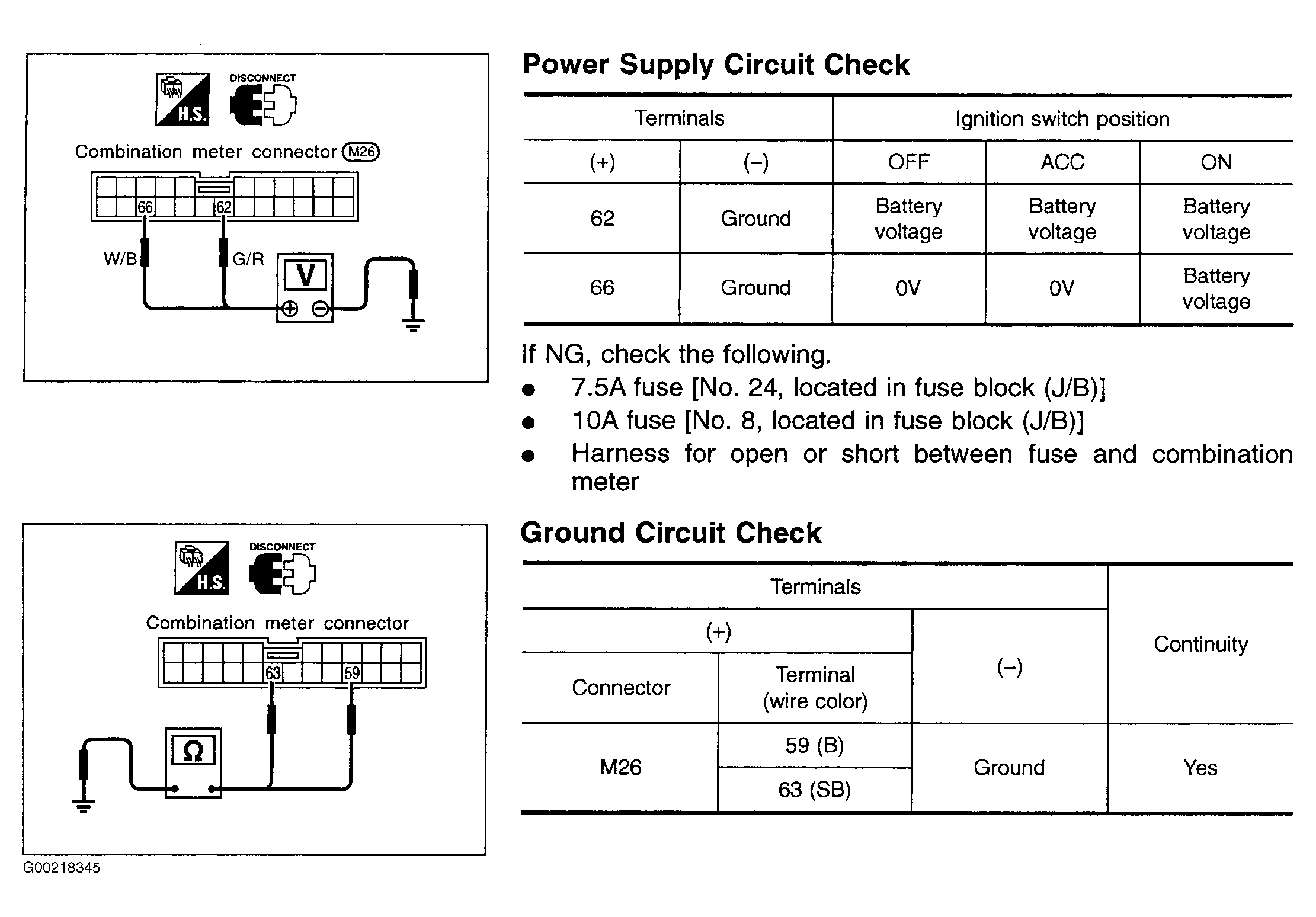

Fig 1: Identifying Power Supply & Ground Circuit Tests (Unified Control Meter)

Courtesy of NISSAN MOTOR CO., U.S.A.
