Diagnostic Procedure 3 (Seat Belt Buckle Switch Tests)

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure 3 (seat belt buckle switch tests), see Fig 1 and Fig 2 .

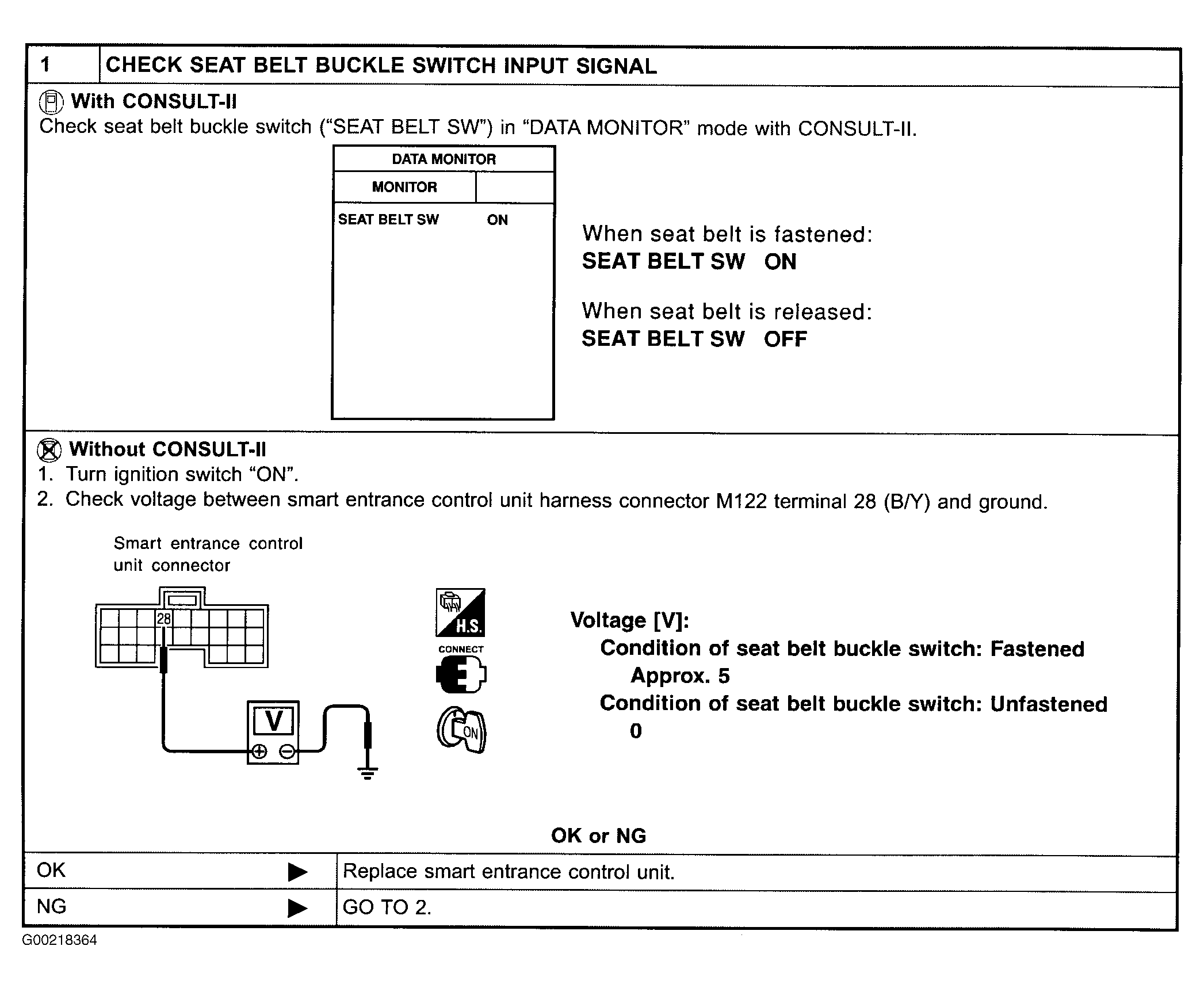

Fig 1: Identifying Diagnostic Procedure 3 (Seat Belt Buckle Switch Tests), Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

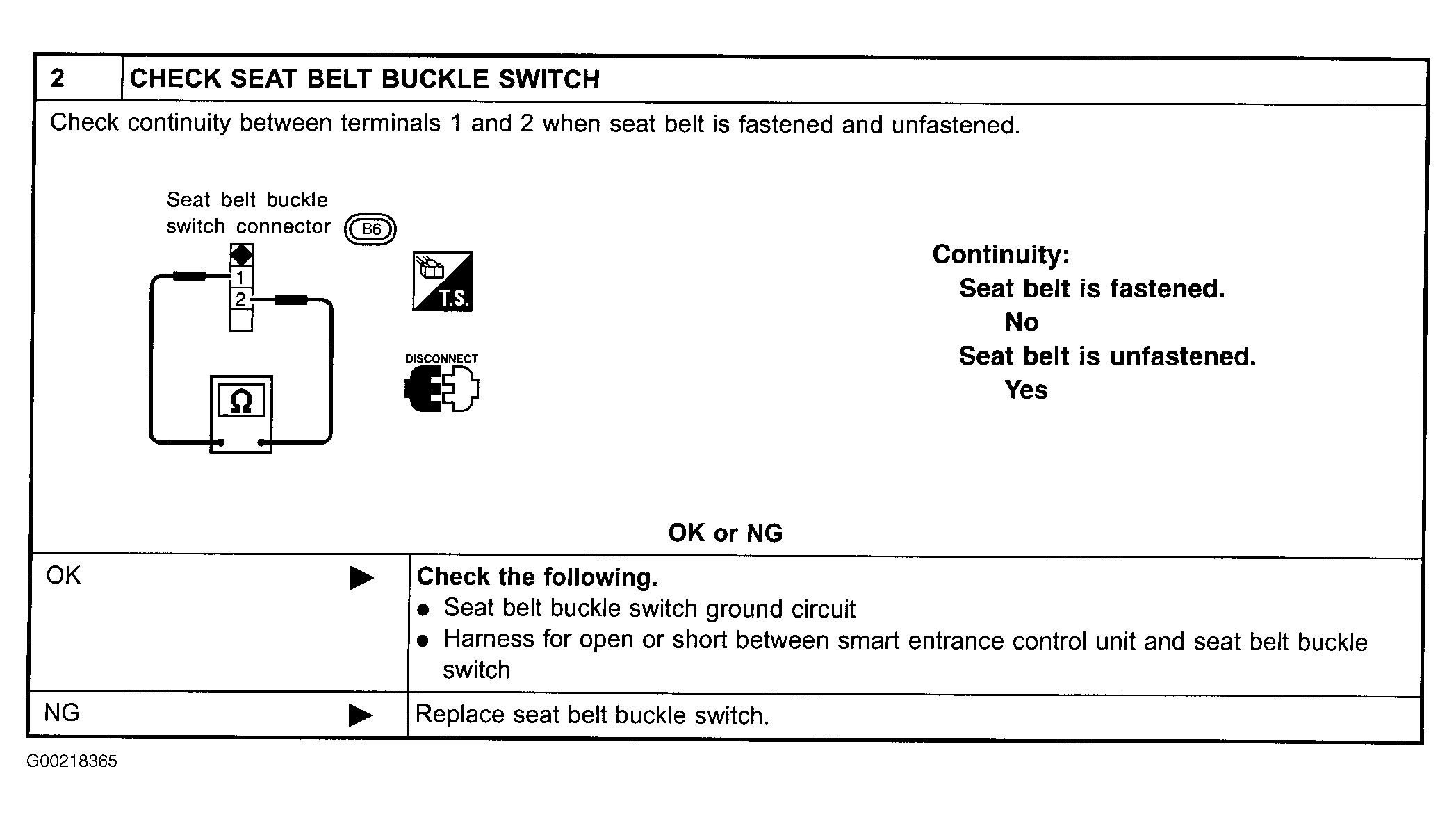

Fig 2: Identifying Diagnostic Procedure 3 (Seat Belt Buckle Switch Tests), Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
