Power Supply Circuit Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For power supply circuit test, see Fig 1 .

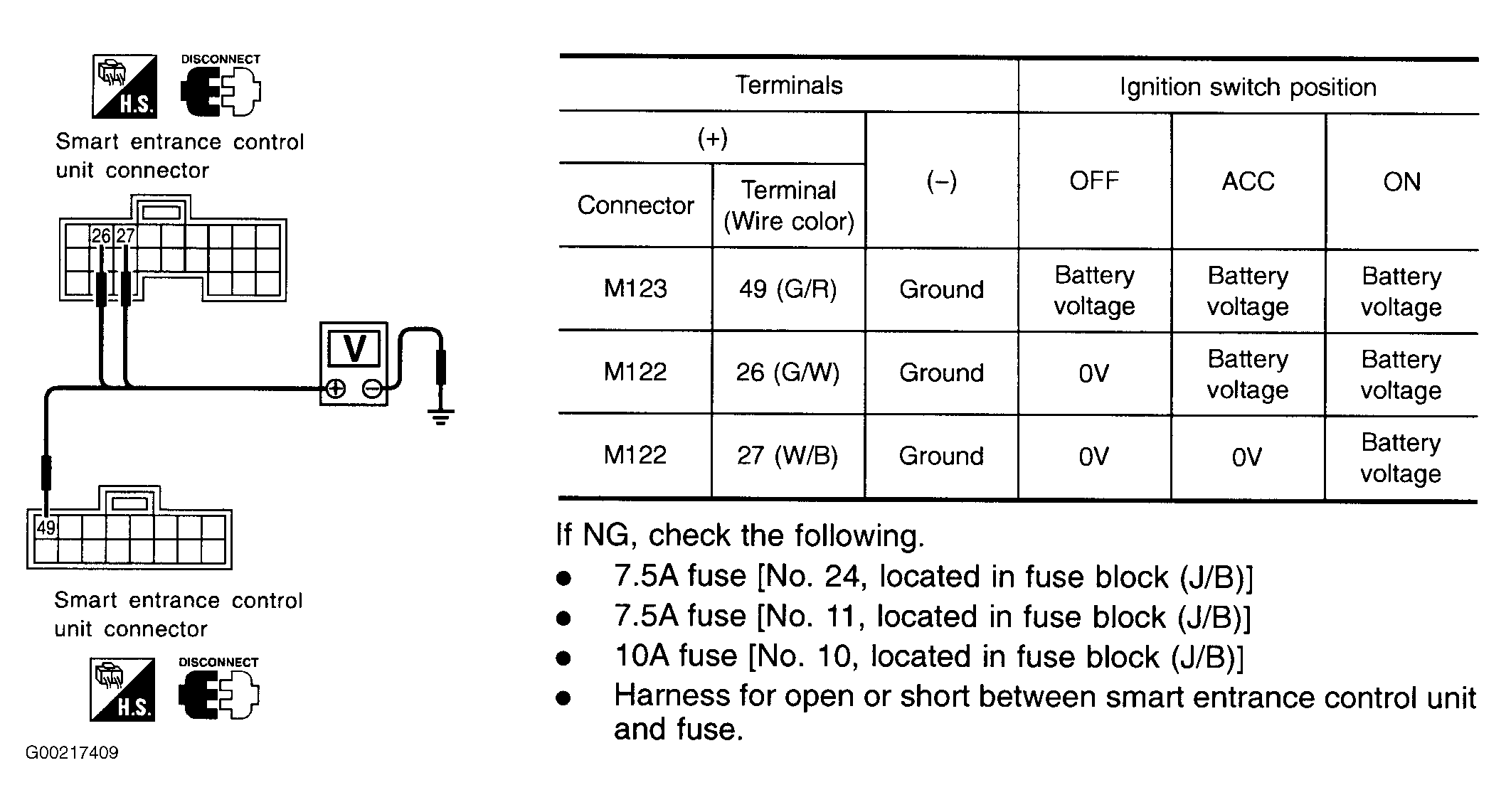

Fig 1: Identifying Power Supply Circuit Test
G00217409Courtesy of NISSAN MOTOR CO., U.S.A.
