Hood Switch Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For step 1, see Fig 1 .
For step 2, see Fig 2 .
For step 3, see Fig 3 .
For step 4, see Fig 4 .

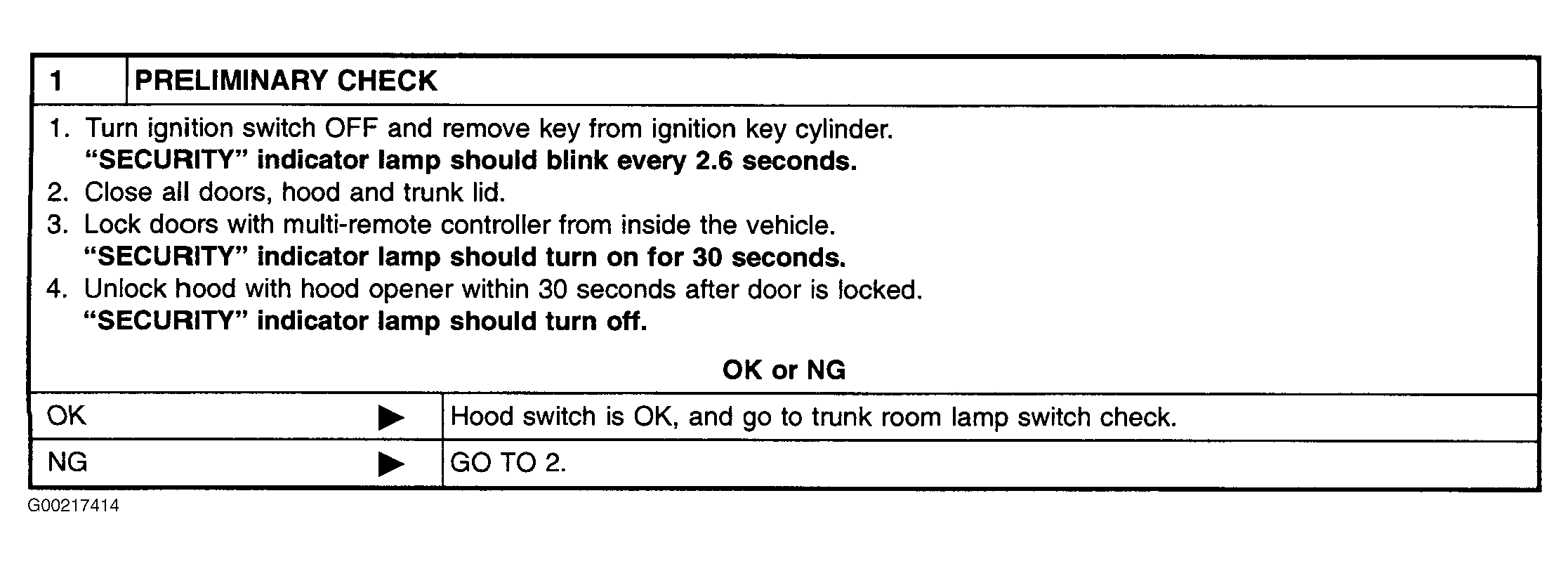

Fig 1: Identifying Hood Switch Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

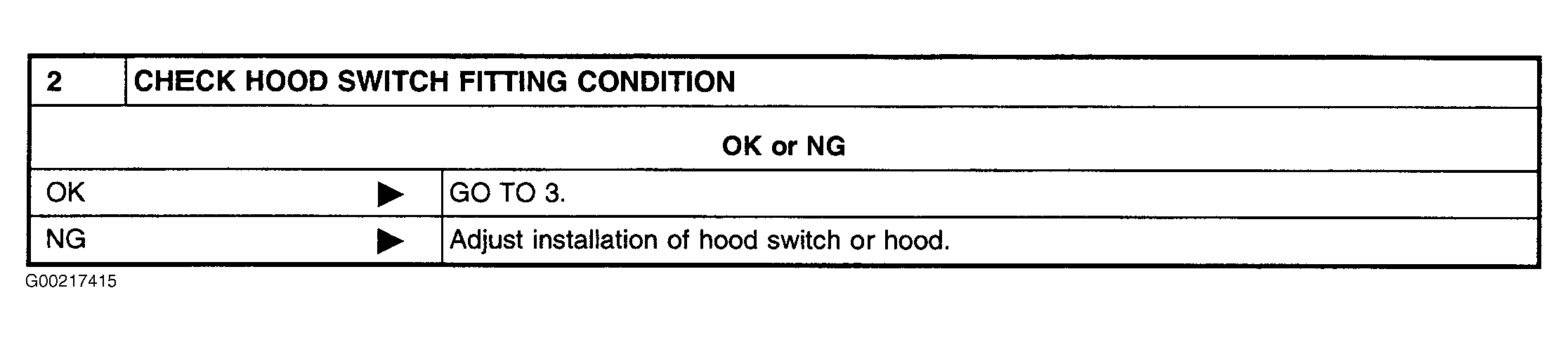

Fig 2: Identifying Hood Switch Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

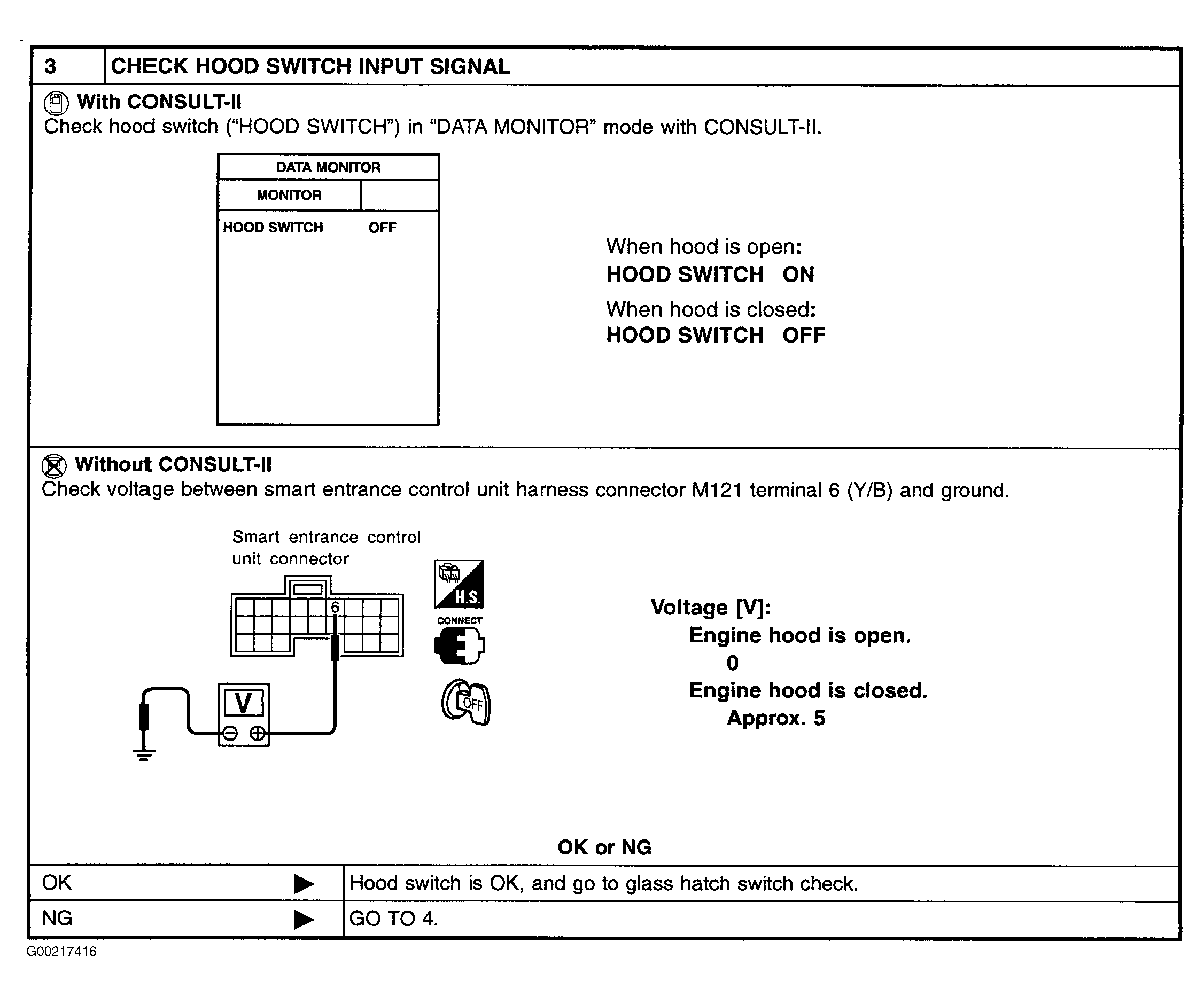

Fig 3: Identifying Hood Switch Test, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.

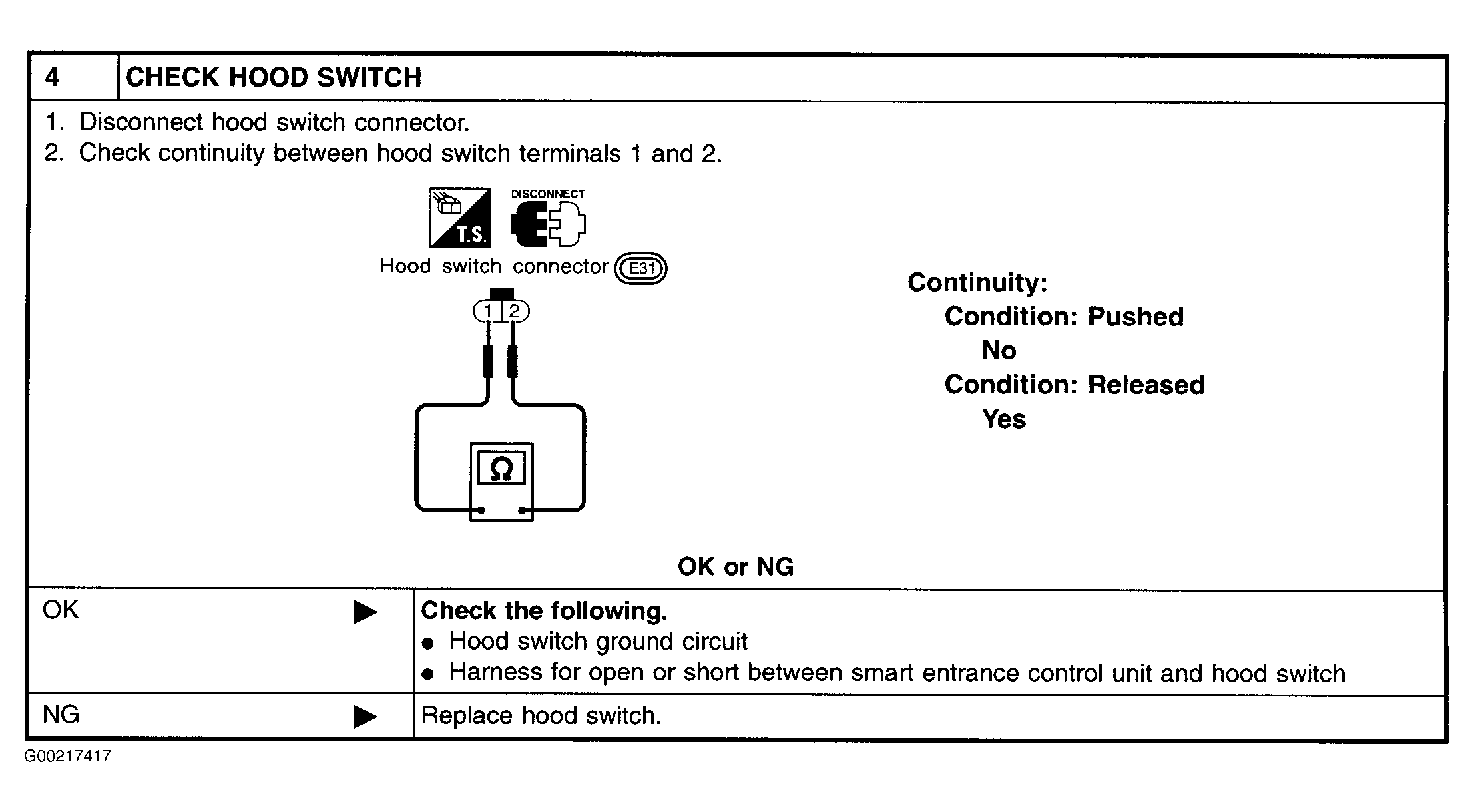

Fig 4: Identifying Hood Switch Test, Step 4

Courtesy of NISSAN MOTOR CO., U.S.A.
