Door Switch Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For door switch test, see Fig 1 -Fig 3 .

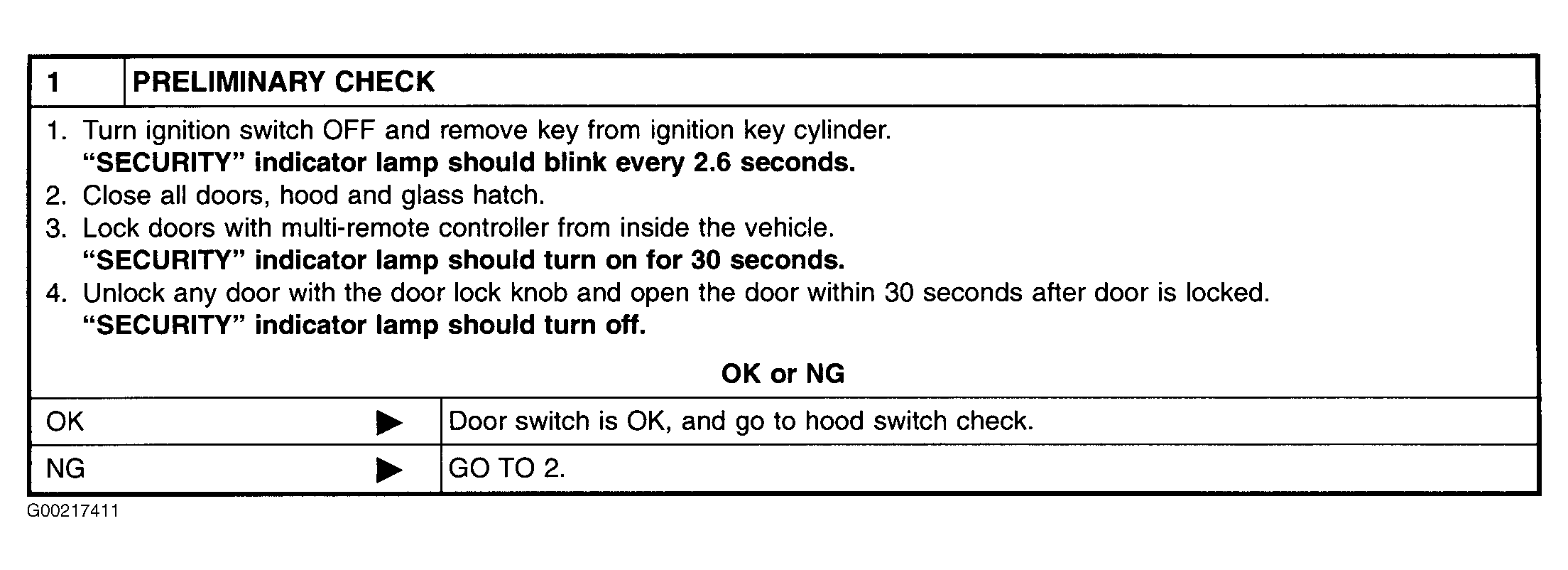

Fig 1: Identifying Door Switch Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

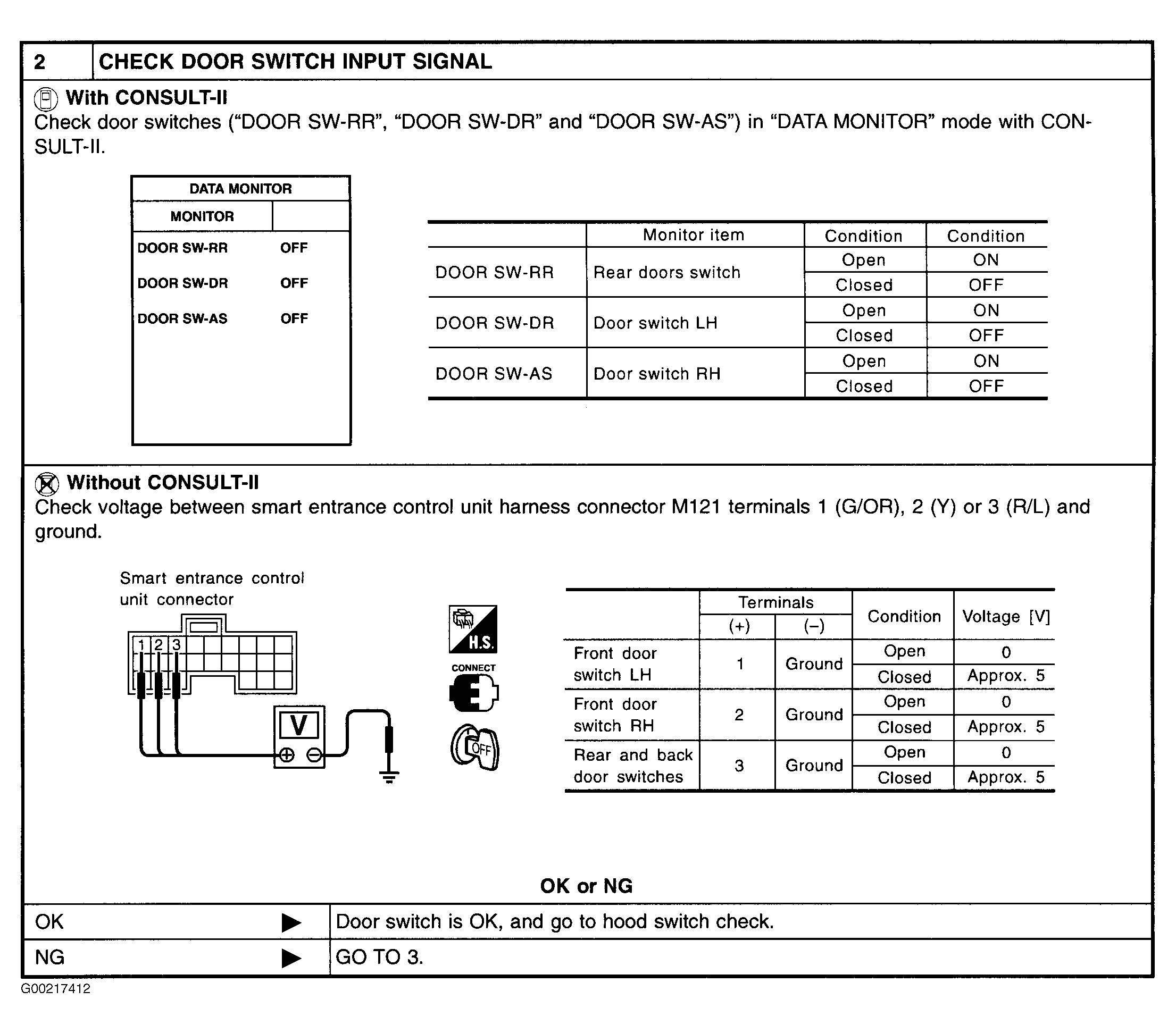

Fig 2: Identifying Door Switch Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

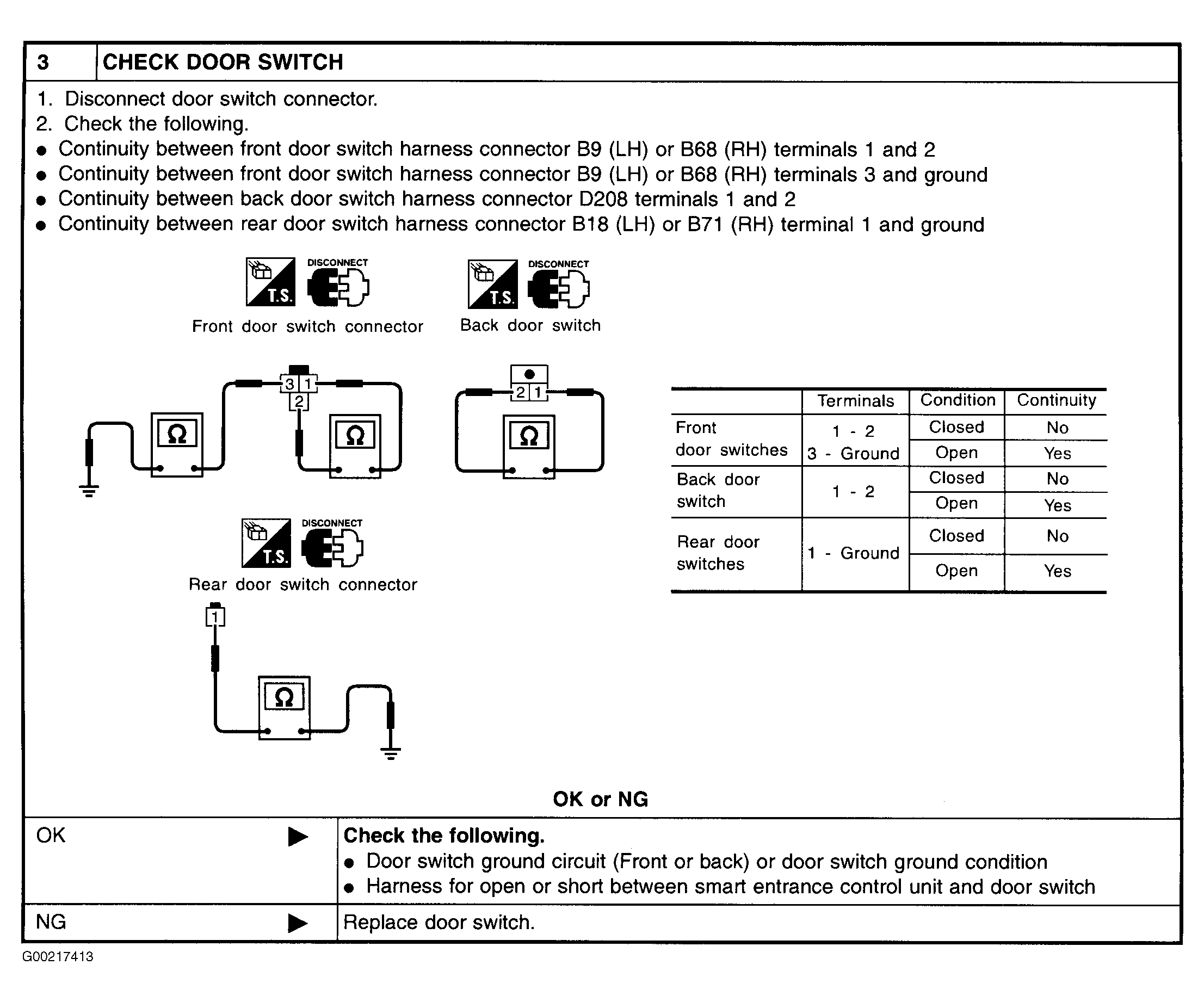

Fig 3: Identifying Door Switch Test, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.
