Diagnostic Item Description

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic item description, see Fig 1 .

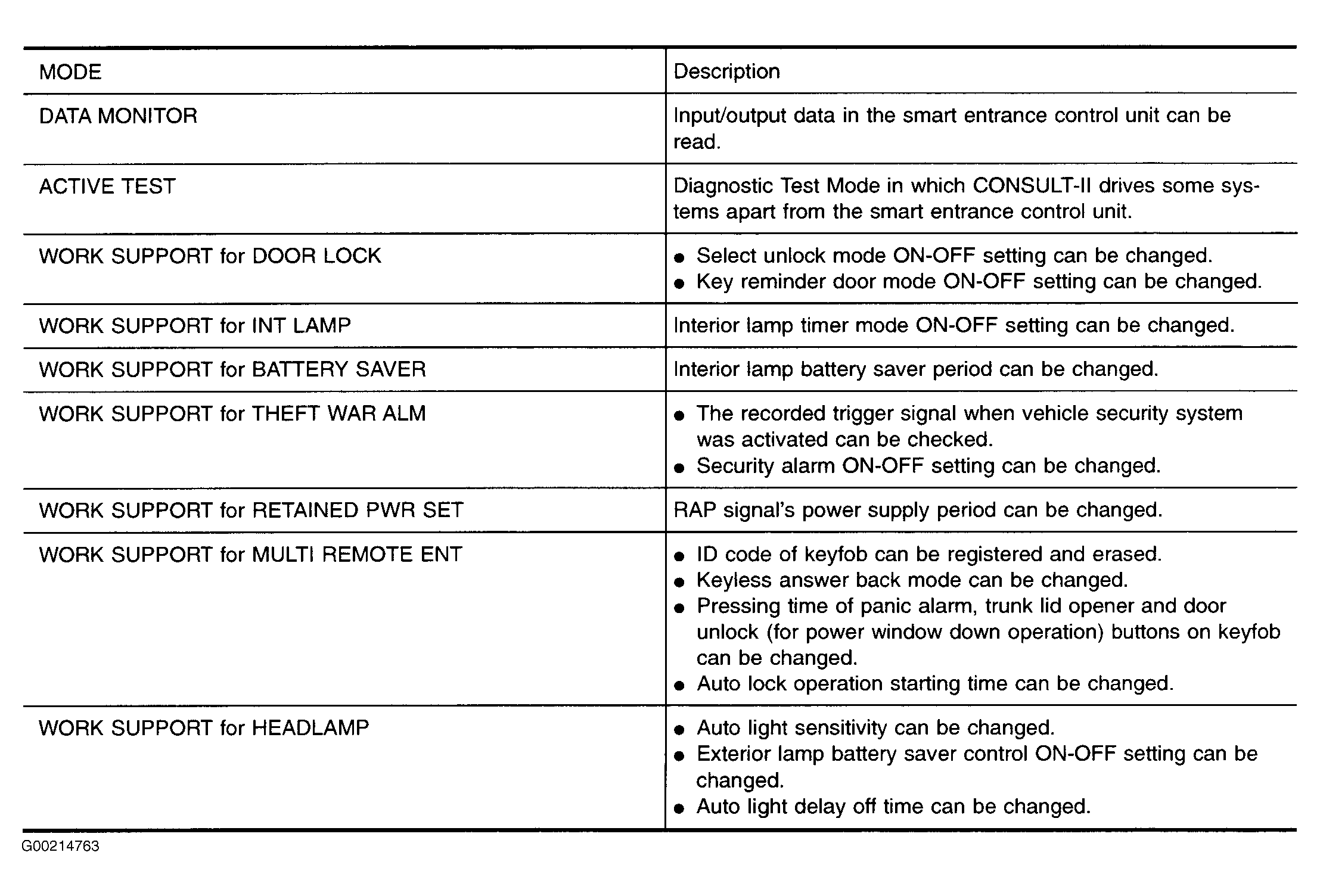

Fig 1: Identifying Diagnostic Item Description

Courtesy of NISSAN MOTOR CO., U.S.A.
