Rear Window Defogger Inoperative Or Does Not Turn "Off"

WARNING: This page is about a different car, the 2003 Nissan Pathfinder and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For defogger relay, see DEFOGGER RELAY  , for defogger circuit, see WIRING DIAGRAMS  and for defogger filament check, see FILAMENT CHECK  .
NOTE: For defogger switch, see DEFOGGER SWITCH  .

For rear window defogger inoperative or does not turn "off" test, see Fig 1 -Fig 5 .

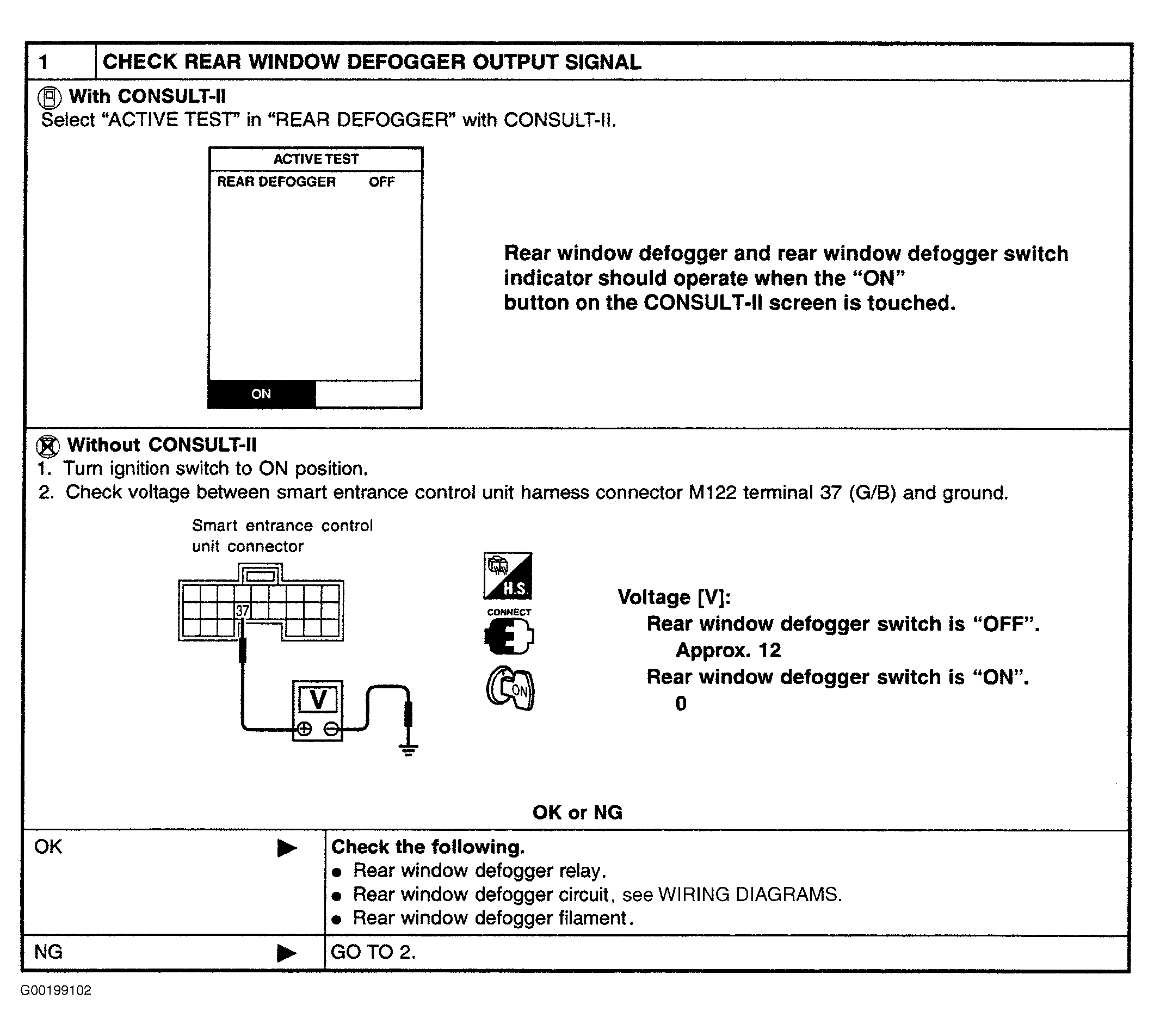

Fig 1: Identifying Rear Window Defogger Inoperative Or Does Not Turn "OFF", Step 1
G00199102Courtesy of NISSAN MOTOR CO., U.S.A.

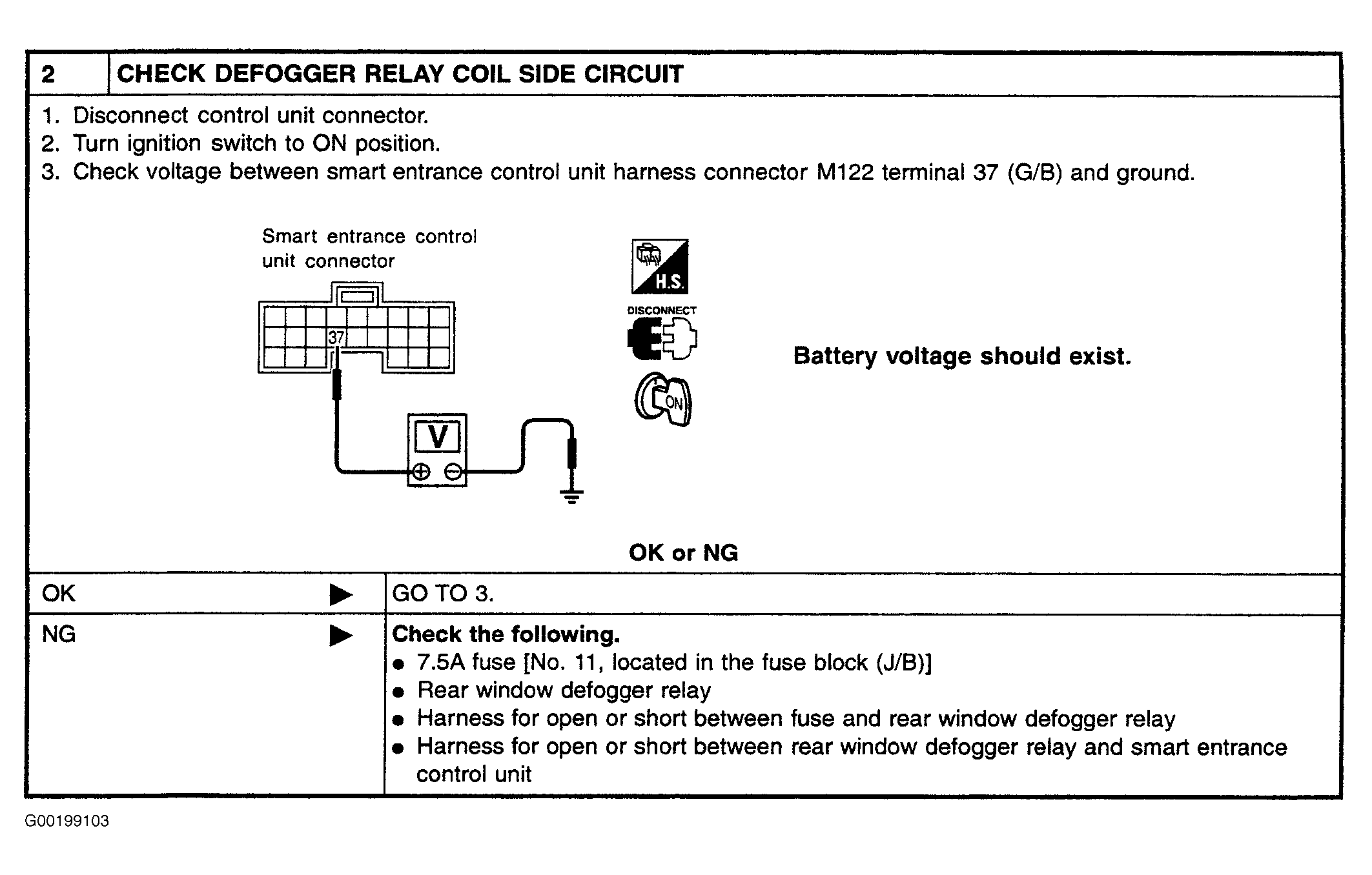

Fig 2: Identifying Rear Window Defogger Inoperative Or Does Not Turn "OFF", Step 2
G00199103Courtesy of NISSAN MOTOR CO., U.S.A.

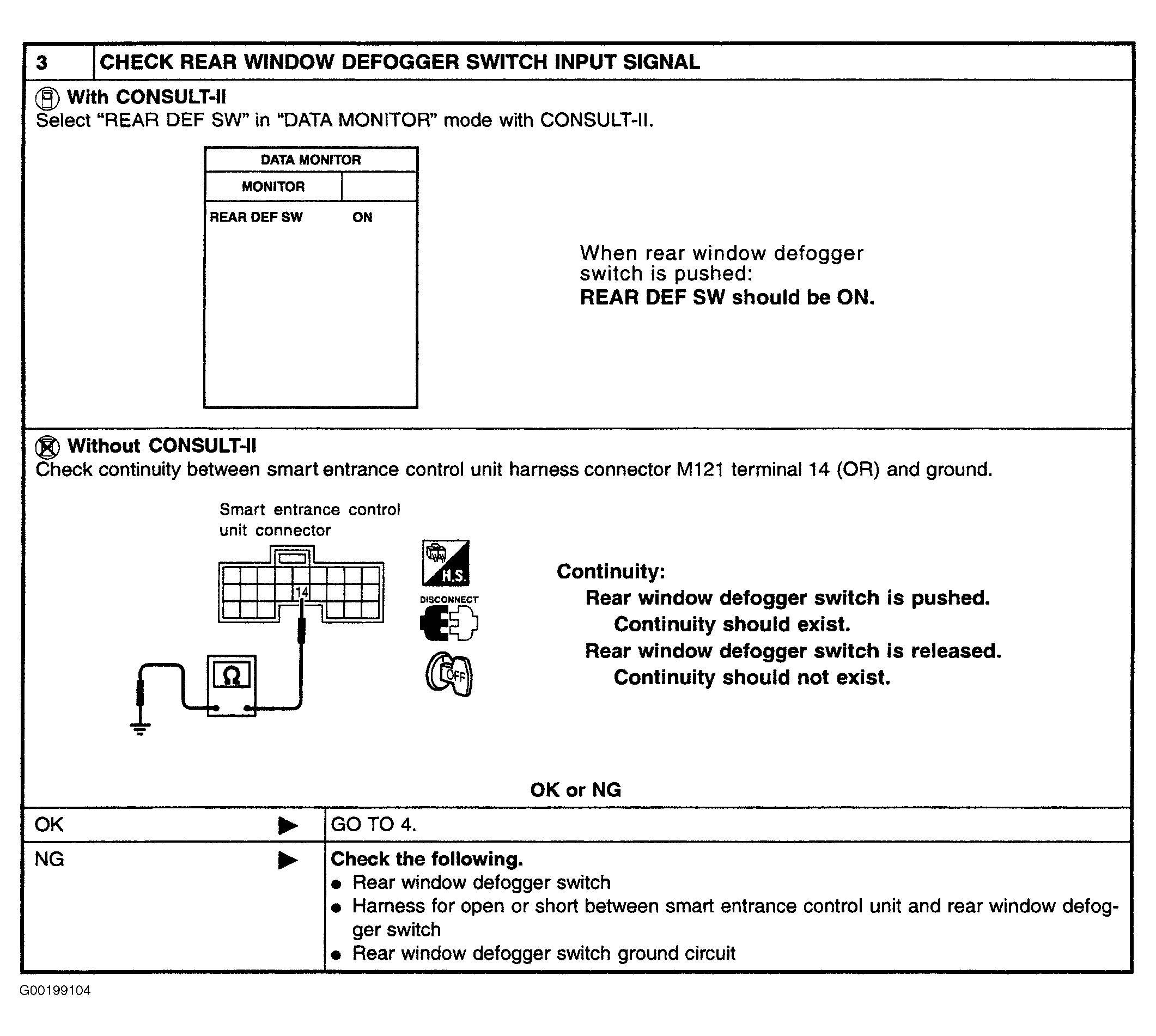

Fig 3: Identifying Rear Window Defogger Inoperative Or Does Not Turn "OFF", Step 3
G00199104Courtesy of NISSAN MOTOR CO., U.S.A.

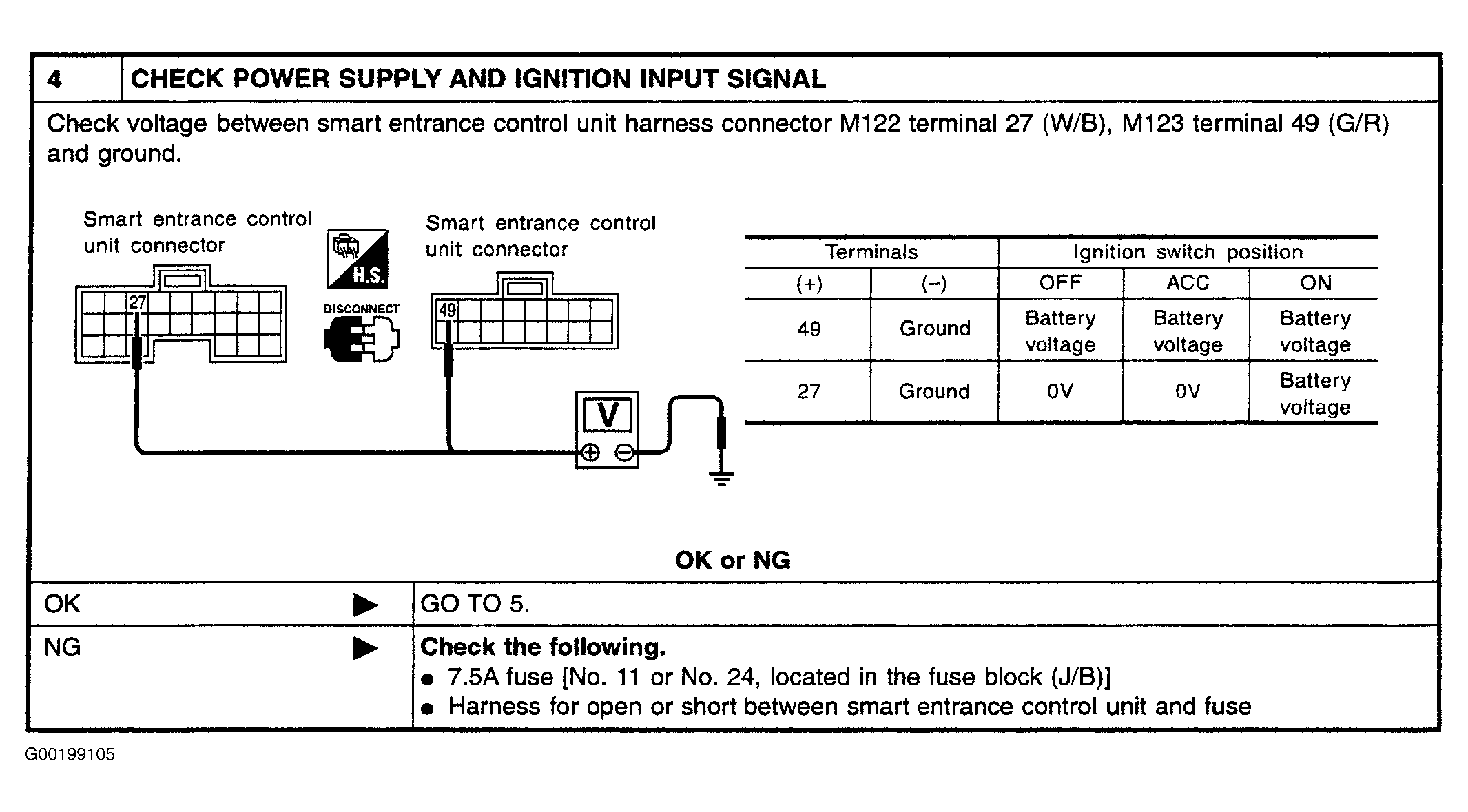

Fig 4: Identifying Rear Window Defogger Inoperative Or Does Not Turn "OFF", Step 4
G00199105Courtesy of NISSAN MOTOR CO., U.S.A.

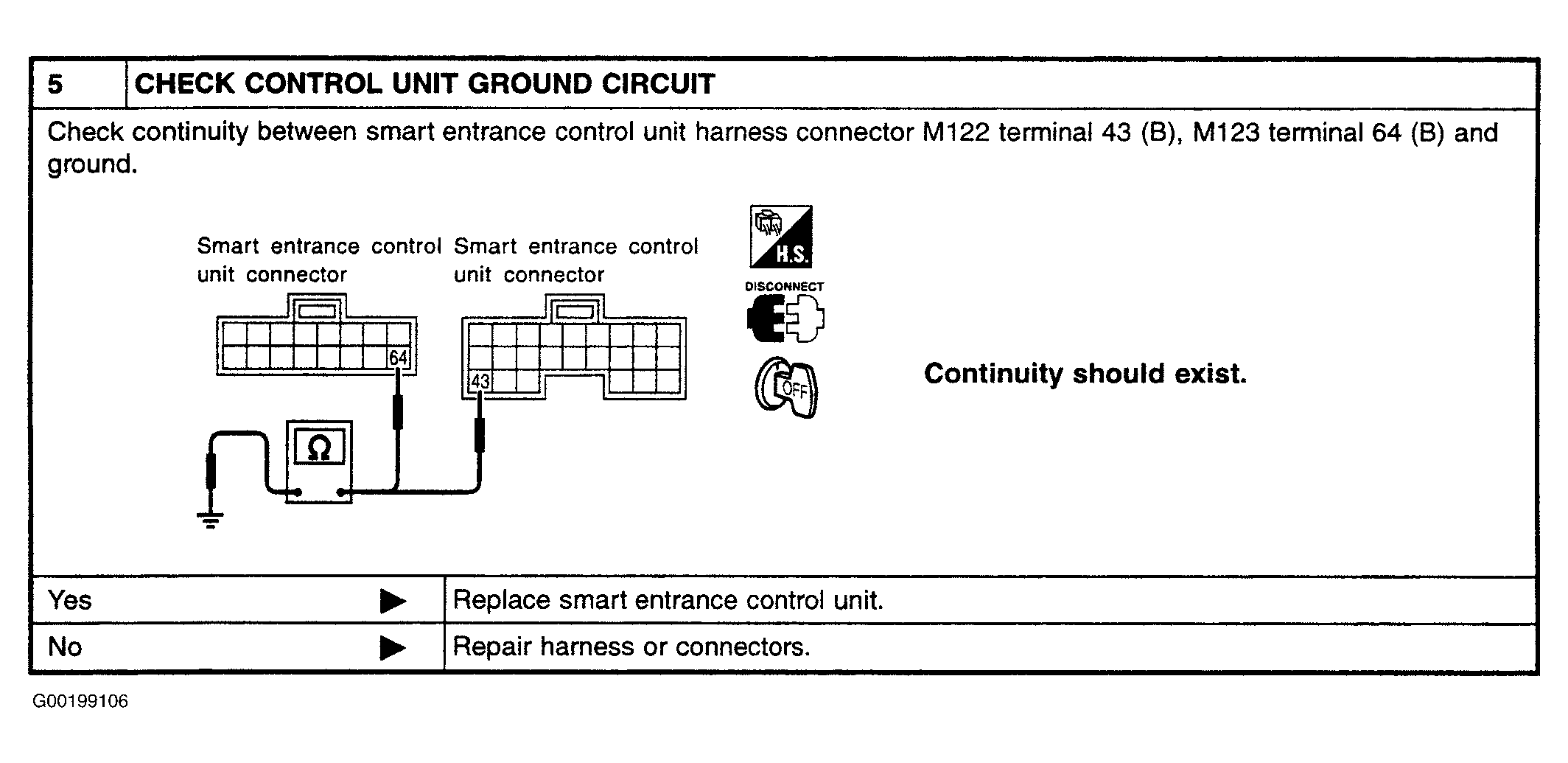

Fig 5: Identifying Rear Window Defogger Inoperative Or Does Not Turn "OFF", Step 5
G00199106Courtesy of NISSAN MOTOR CO., U.S.A.
