Sunroof Motor: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When removing the sunroof motor, be sure that the sunroof is in the fully closed position.
  • Never run the removed motor as a single unit.
  1. Position the sunroof glass lid in the fully closed position.
  2. Remove the front roof console assembly. Refer to REMOVAL AND INSTALLATION - HEADLINING .
  3. Disconnect the harness connector.
  4. Remove the mounting screws and motor assembly.

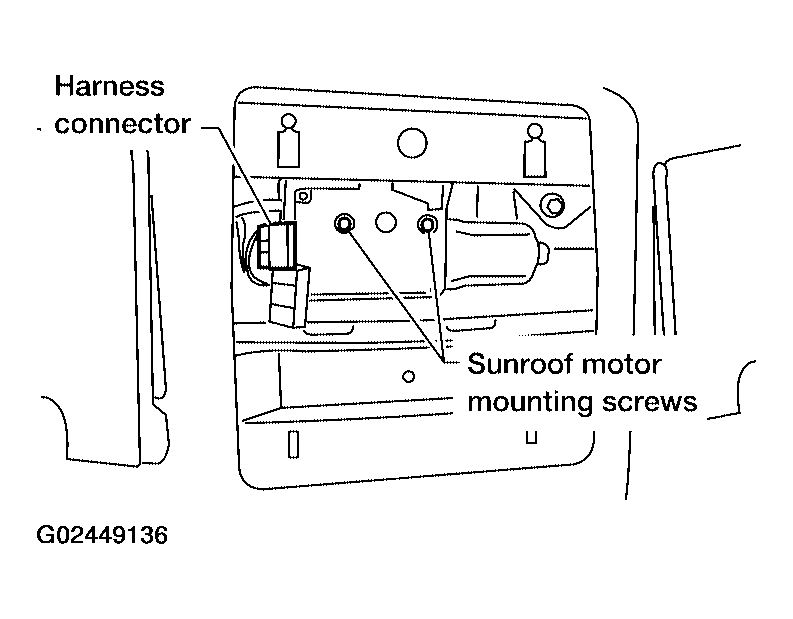

    Fig 1: Identifying Sunroof Motor Mounting Screws
    G02449136Courtesy of NISSAN MOTOR CO., U.S.A.
