Glass Lid: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open sunroof shade and confirm glass lid is closed.
  2. Remove the screws securing glass lid to the sunroof unit.

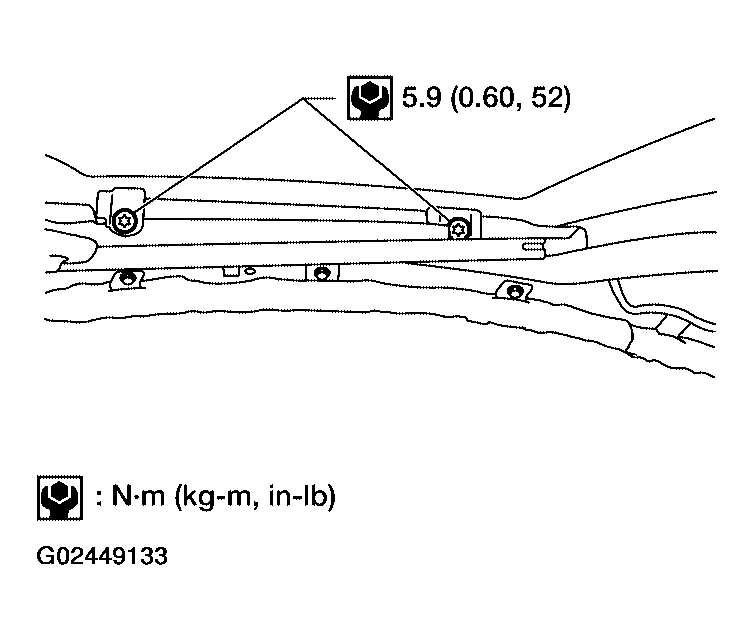

    Fig 1: Removing Screws Securing Glass Lid To Sunroof Unit
    G02449133Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Lift and remove the glass lid assembly.
