Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wiper arm and motor. Refer to "BODY SIDE TRIM ".
  2. Remove the connectors and grounds for the rear window defogger.
    • Remove glass using piano wire or power cutting tool and an inflatable pump bag.
    • If the rear window glass is to be reused, mark the body and the glass with mating marks.
      WARNING: When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent glass splinters from entering your eyes or cutting your hands.
      CAUTION:
      • When a windshield glass is to be reused, do not use a cutting knife or power cutting tool.
      • Be careful not to scratch the glass when removing.
      • Do not set or stand the glass on its edge. Small chips may develop into cracks.

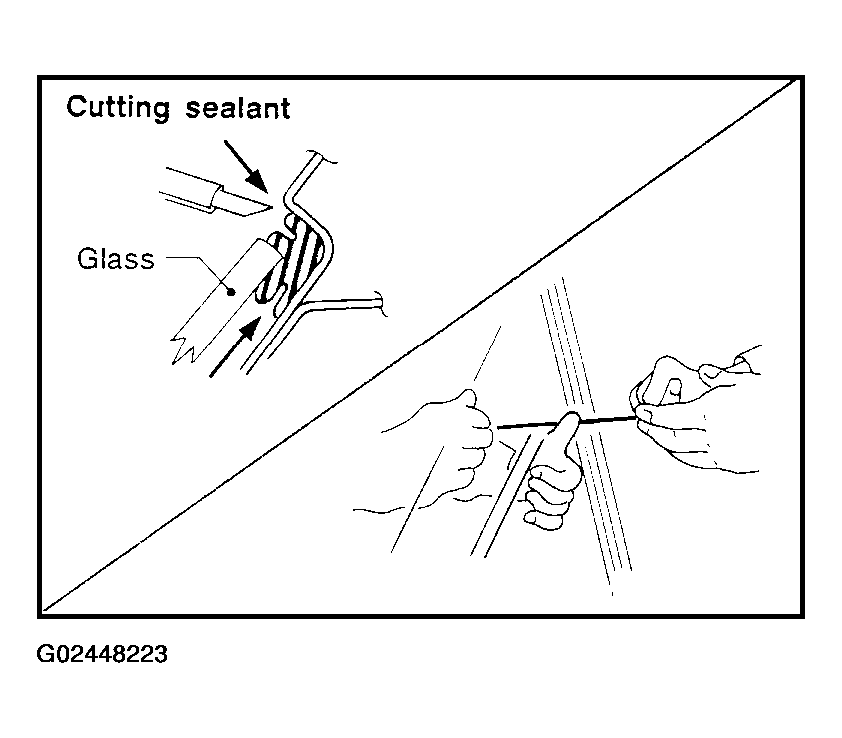

        Fig 1: Removing Windshield Glass
        G02448223Courtesy of NISSAN MOTOR CO., U.S.A.
