Wiring Diagram - WINDOW - (Without Rear Power Vent Windows)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

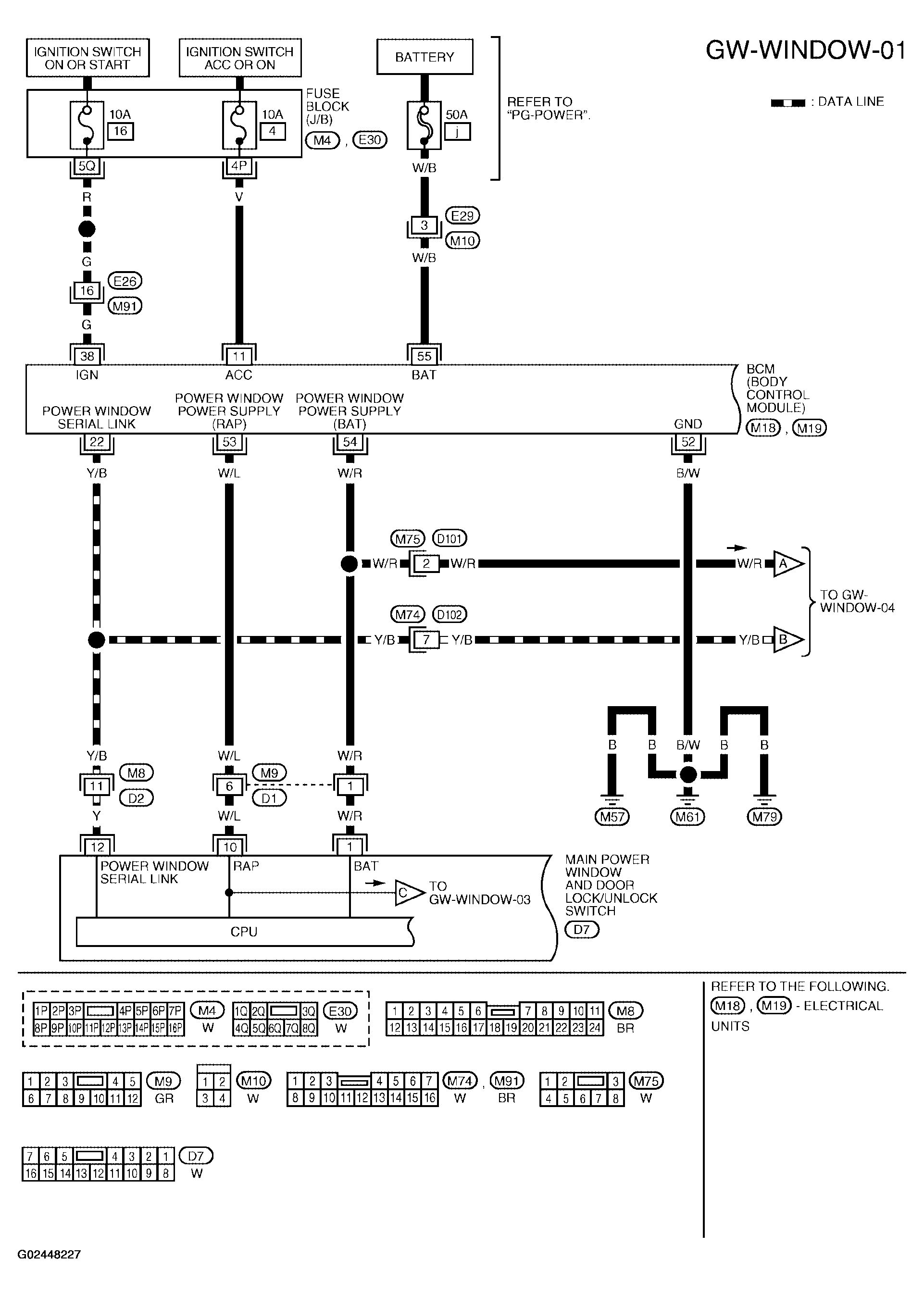

Fig 1: Wiring Diagram - WINDOW - (Without Rear Power Vent Windows) (1 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

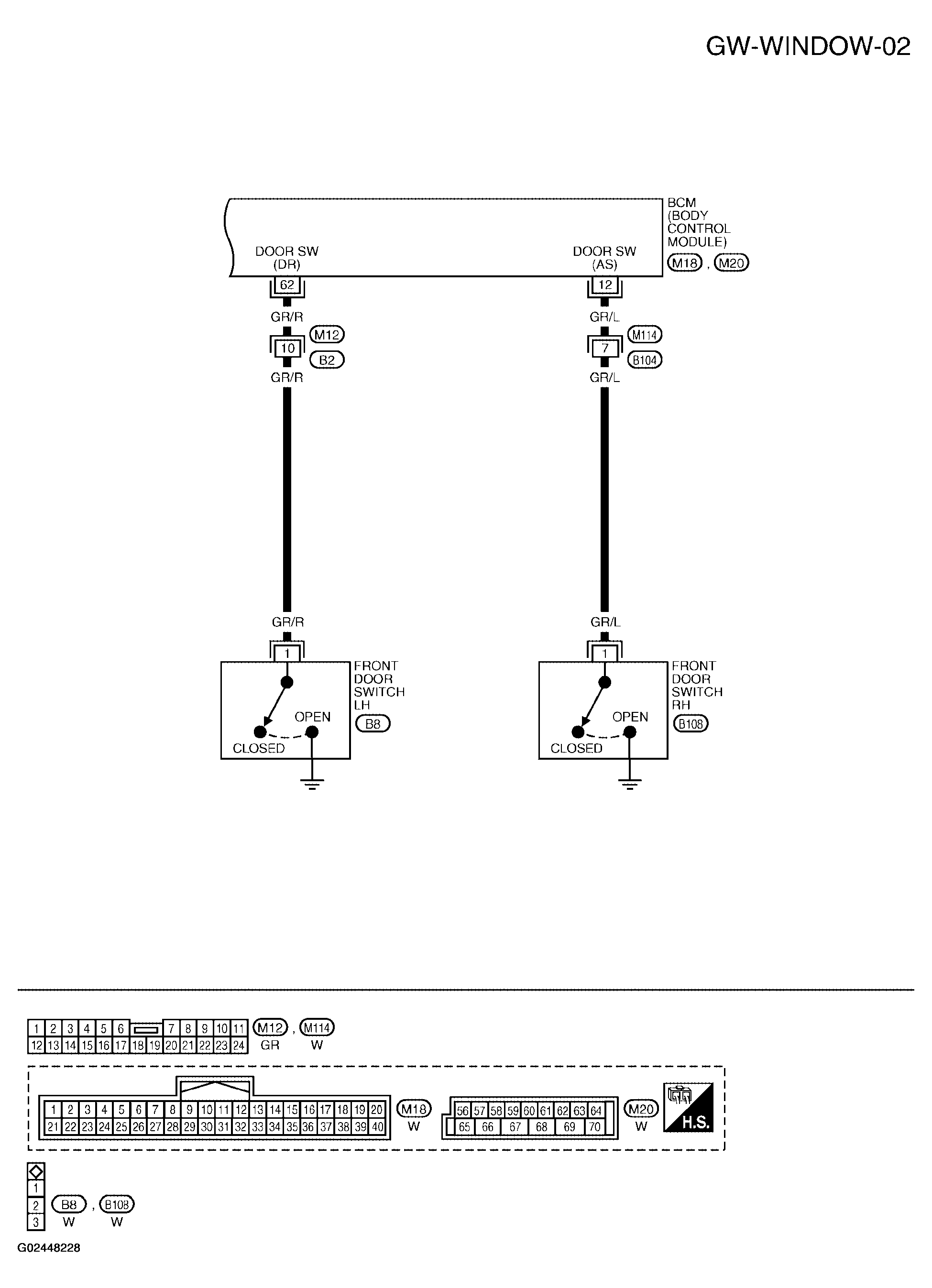

Fig 2: Wiring Diagram - WINDOW - (Without Rear Power Vent Windows) (2 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

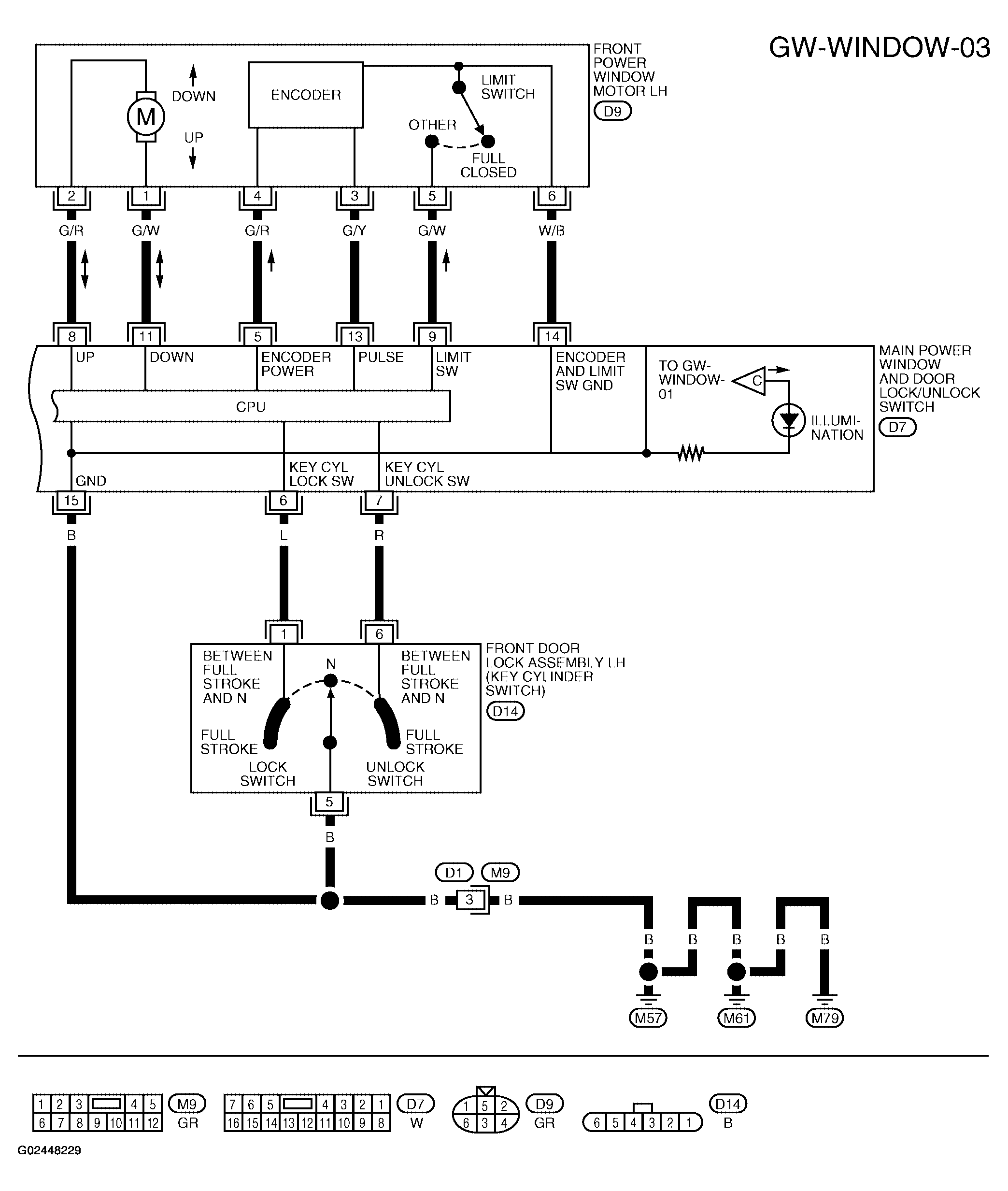

Fig 3: Wiring Diagram - WINDOW - (Without Rear Power Vent Windows) (3 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.

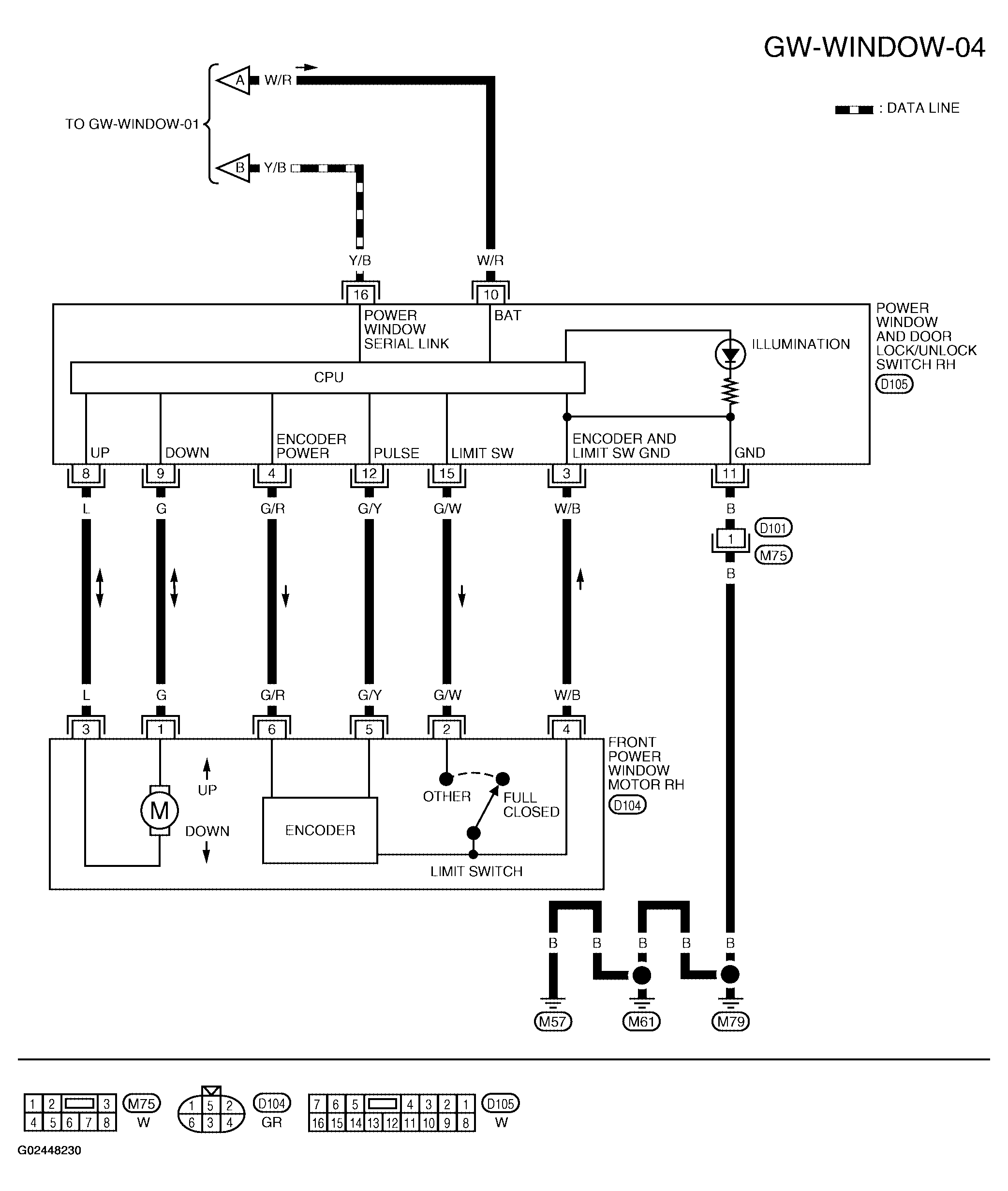

Fig 4: Wiring Diagram - WINDOW - (Without Rear Power Vent Windows) (4 Of 4)

Courtesy of NISSAN MOTOR CO., U.S.A.
