Wiring Diagram - WINDOW - (With Rear Power Vent Windows)
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Wiring Diagram - WINDOW - (With Rear Power Vent Windows) (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Wiring Diagram - WINDOW - (With Rear Power Vent Windows) (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Wiring Diagram - WINDOW - (With Rear Power Vent Windows) (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Wiring Diagram - WINDOW - (With Rear Power Vent Windows) (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

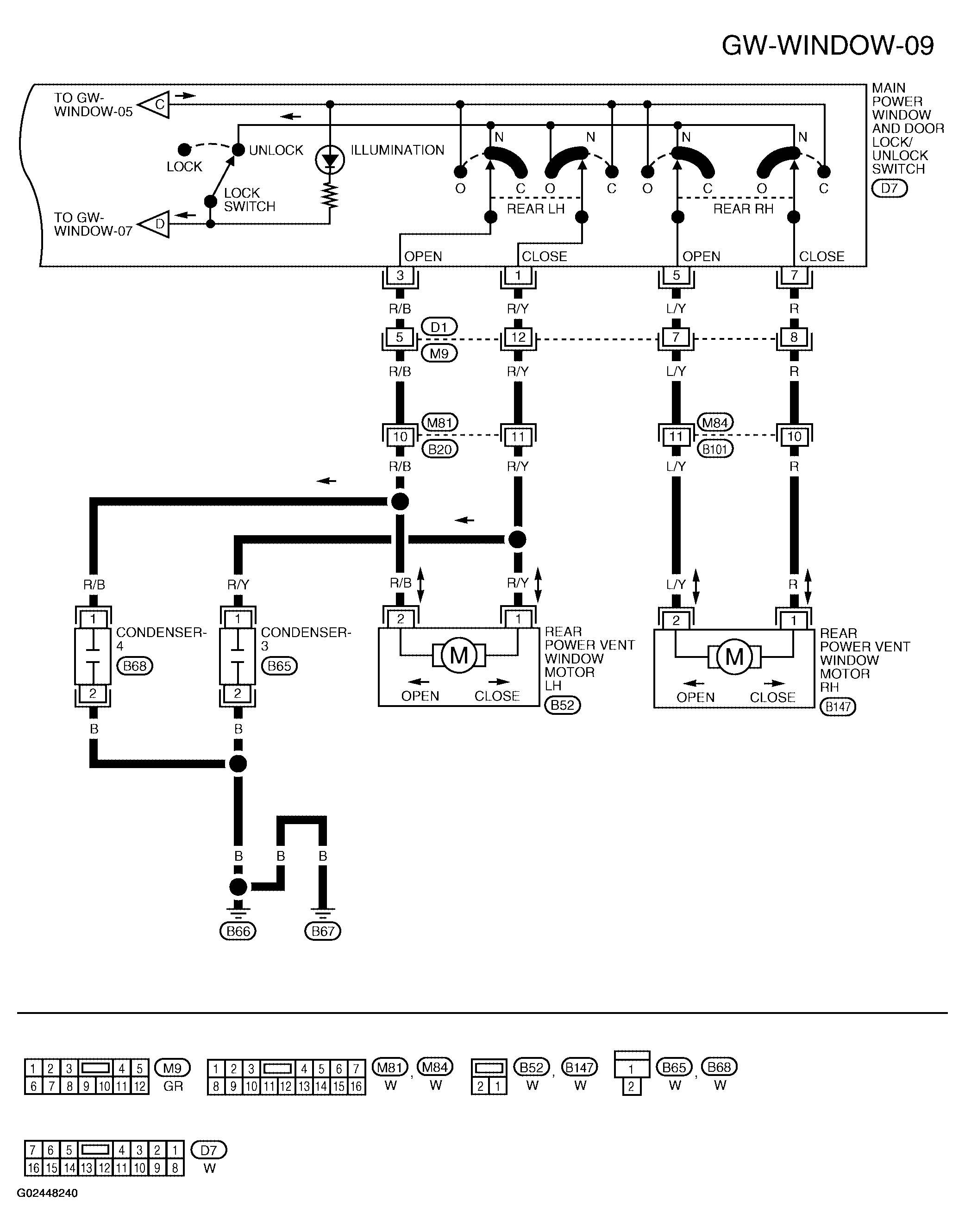

Fig 5: Wiring Diagram - WINDOW - (With Rear Power Vent Windows) (5 Of 5)
