Terminal and Reference Value for BCM (Without Rear Power Vent Windows)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

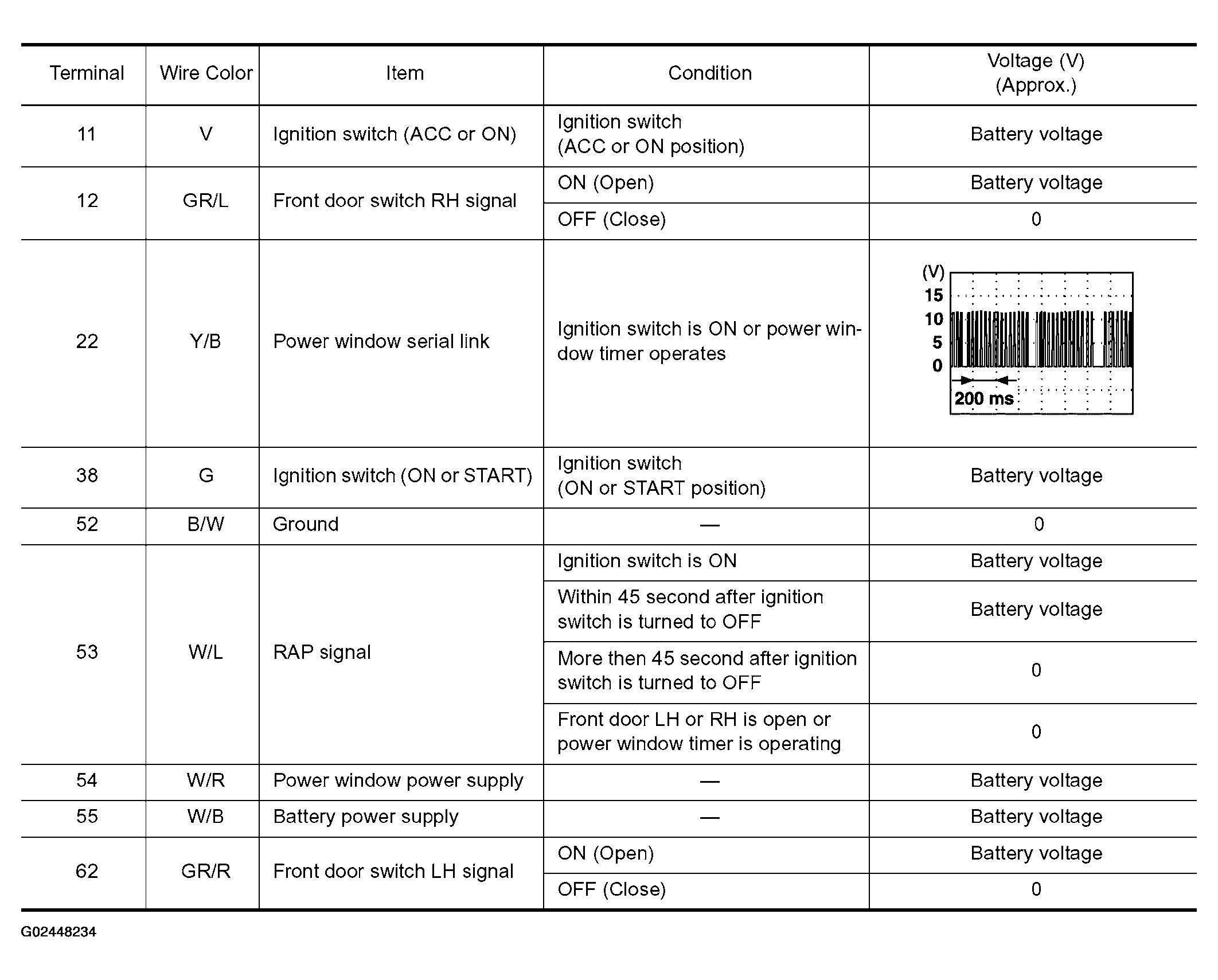

Fig 1: Terminal & Reference Value For BCM (Without Rear Power Vent Windows) Table
G02448234Courtesy of NISSAN MOTOR CO., U.S.A.
