Rear Power Vent Window Motor RH Circuit Check

1. Turn ignition switch OFF.
2. Disconnect rear power vent window motor RH.
3. Turn ignition switch ON.
4. Check voltage between rear power vent window motor RH connector B147 terminals 1, 2 and ground.

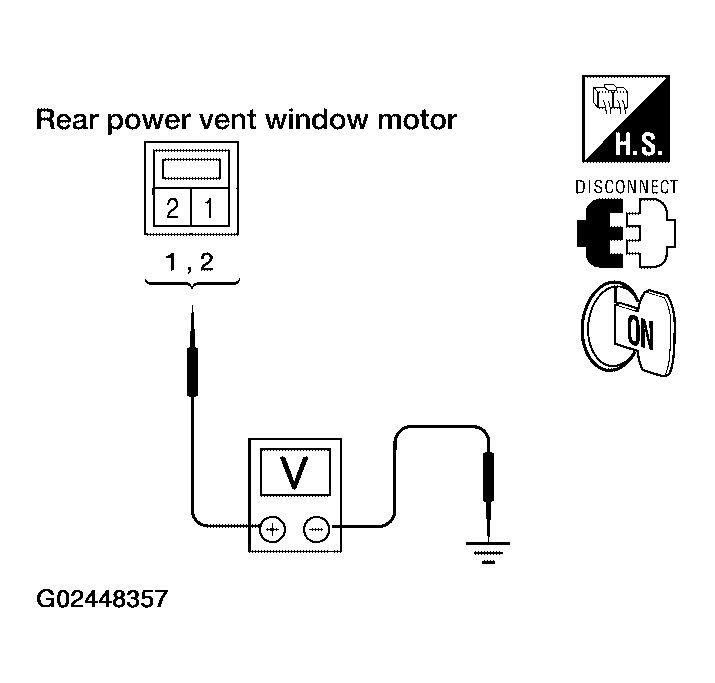

   Fig 1: Checking Voltage Between Rear Power Vent Window Motor RH Connector B147 Terminals 1, 2 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

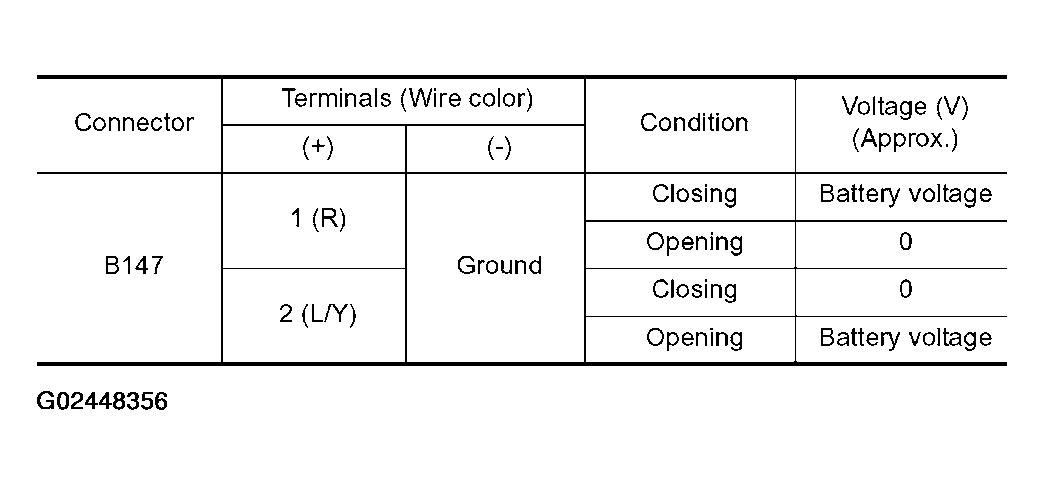

   Fig 2: Terminals Voltage Reference Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK: Replace rear power vent window motor RH. Refer to "REMOVAL AND INSTALLATION (WITH REAR POWER VENT WINDOWS) ".
• NG: GO TO 2.

1. Turn ignition switch OFF.
2. Disconnect main power window and door lock/unlock switch.
3. Check continuity between main power window and door lock/unlock switch connector D7 terminals 5, 7 and rear power vent window motor RH connector B147 terminals 1, 2.

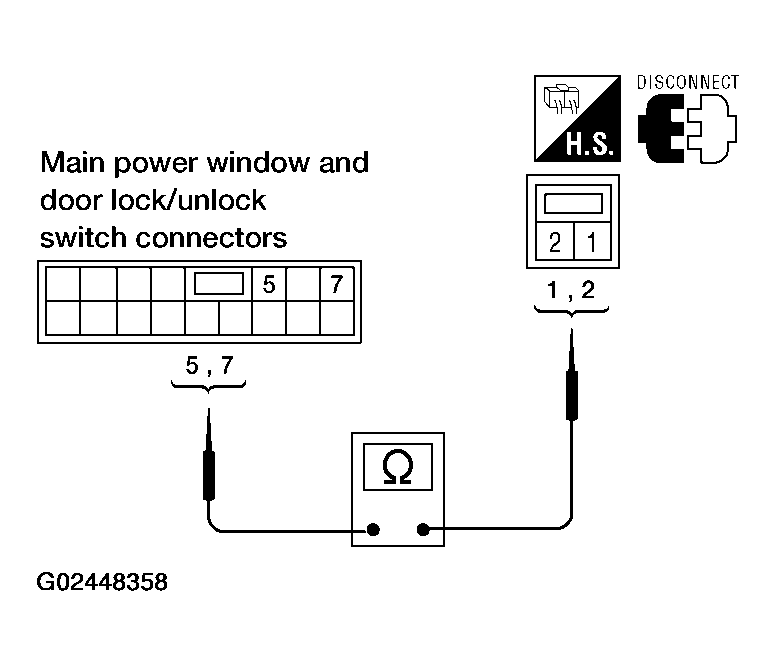

   Fig 3: Checking Continuity Between Connector D7 Terminals 5, 7 And Connector B147 Terminals 1, 2

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • 5(L/Y) - 2 (L/Y): Continuity should exist.
   • 7(R) - 1 (R): Continuity should exist.

OK or NG

• OK: GO TO 3.
• NG: Repair or replace harness.

1. Confirm that power window lock switch is in unlocked position.
2. Check continuity between main power window and door lock/unlock switch connector D7 terminals 5, 7 and connector D8 terminal 17.

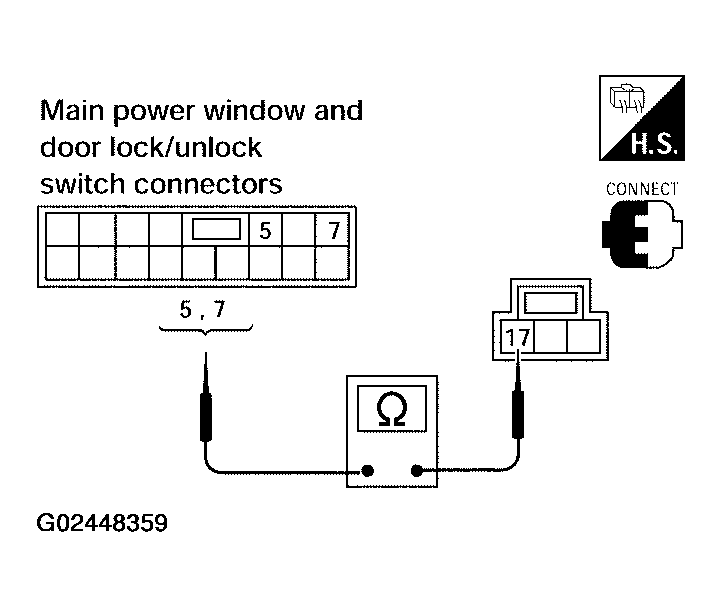

   Fig 4: Checking Continuity Between Main Switch Connector D7 Terminals 5, 7 And Connector D8 Terminal 17

   Courtesy of NISSAN MOTOR CO., U.S.A.
   • 5(L/Y) - 17 (B): Continuity should exist.
   • 7(R/B) - 17 (B): Continuity should exist.

OK or NG

• OK: Repair or replace harness.
• NG: Replace main power window and door lock/unlock switch. Refer to "FRONT DOOR ".
