Outside Handle

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove the sliding door finisher. Refer to SLIDING DOOR - FINISHER .

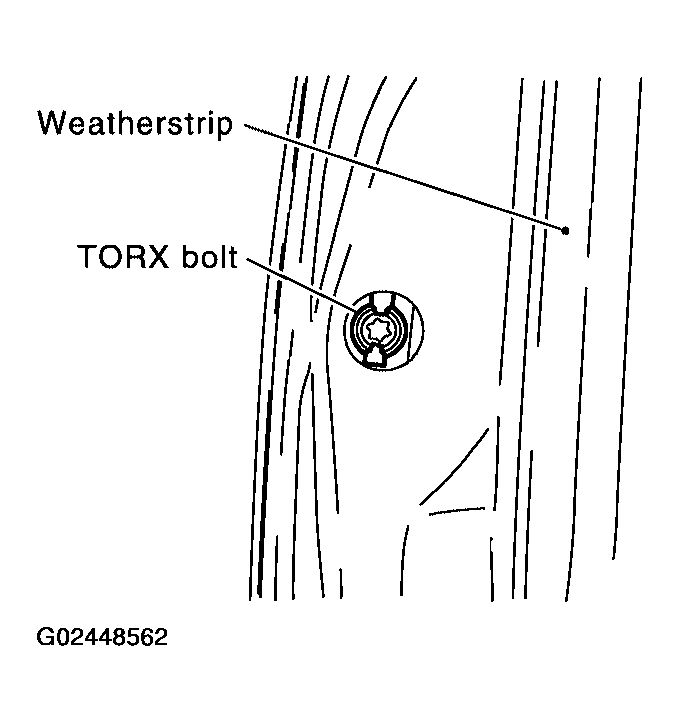

Remove outside handle escutcheon bolt (TORX T30) from grommet hole.
CAUTION: Do not forcibly remove the TORX bolts (T30).

Fig 1: Removing TORX Bolts
Courtesy of NISSAN MOTOR CO., U.S.A.

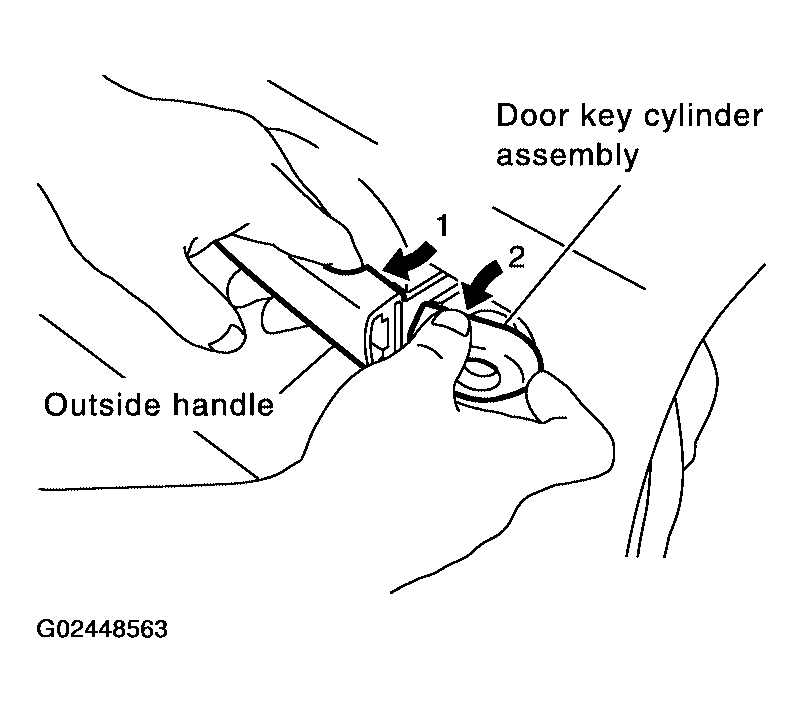

While pulling the outside handle, remove outside handle escutcheon.

Fig 2: Removing Outside Handle Escutcheon
Courtesy of NISSAN MOTOR CO., U.S.A.

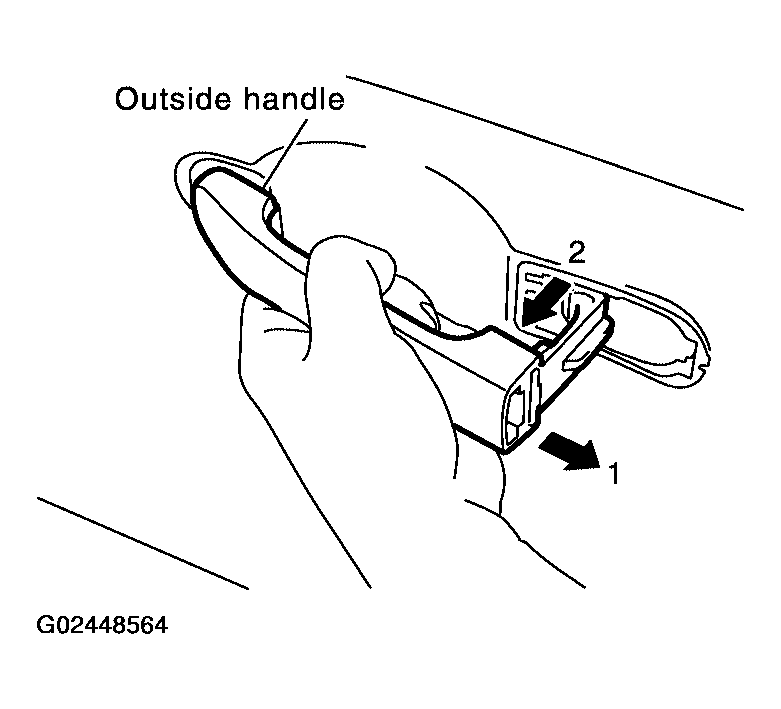

While pulling outside handle, slide toward rear of vehicle to remove outside handle.

Fig 3: Removing Outside Handle
Courtesy of NISSAN MOTOR CO., U.S.A.

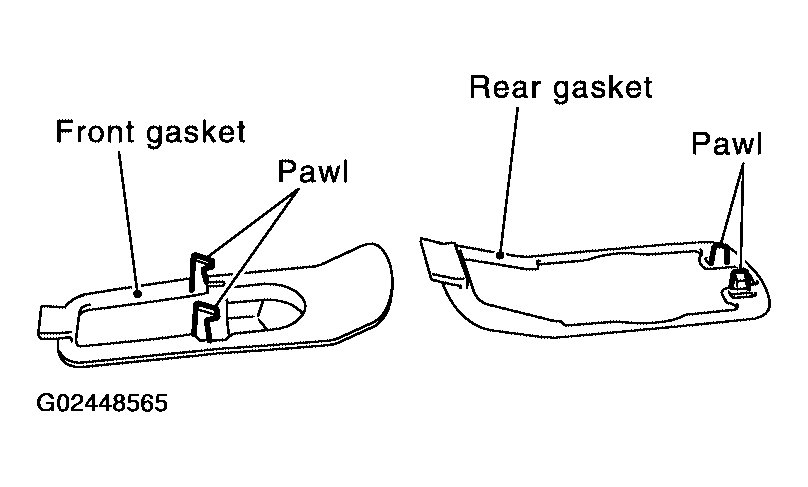

Remove the front gasket and rear gasket.

Fig 4: Removing Front Gasket & Rear Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

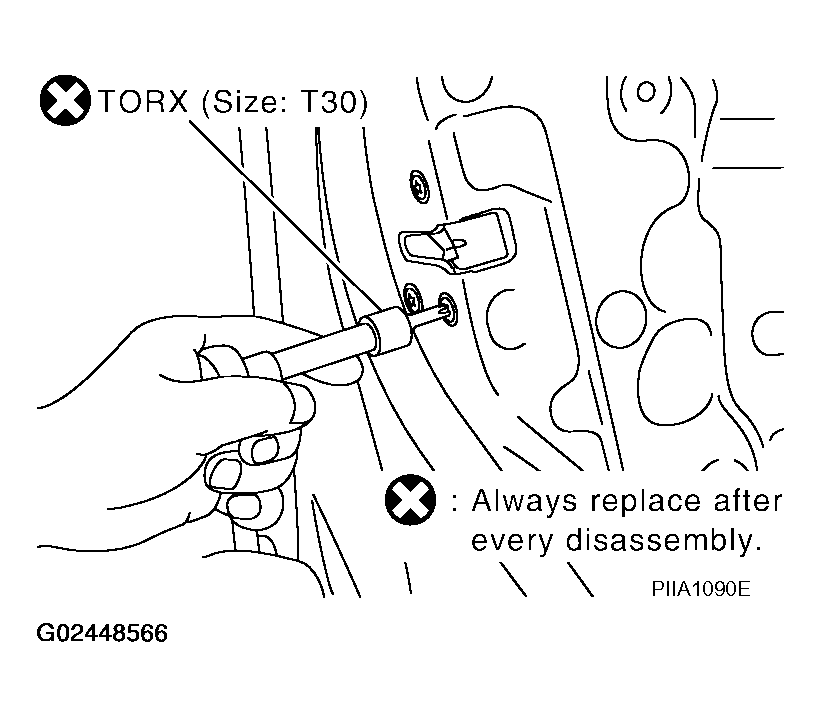

Remove the TORX bolts (T30), remove the door lock assembly.

Fig 5: Removing Door Lock Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.

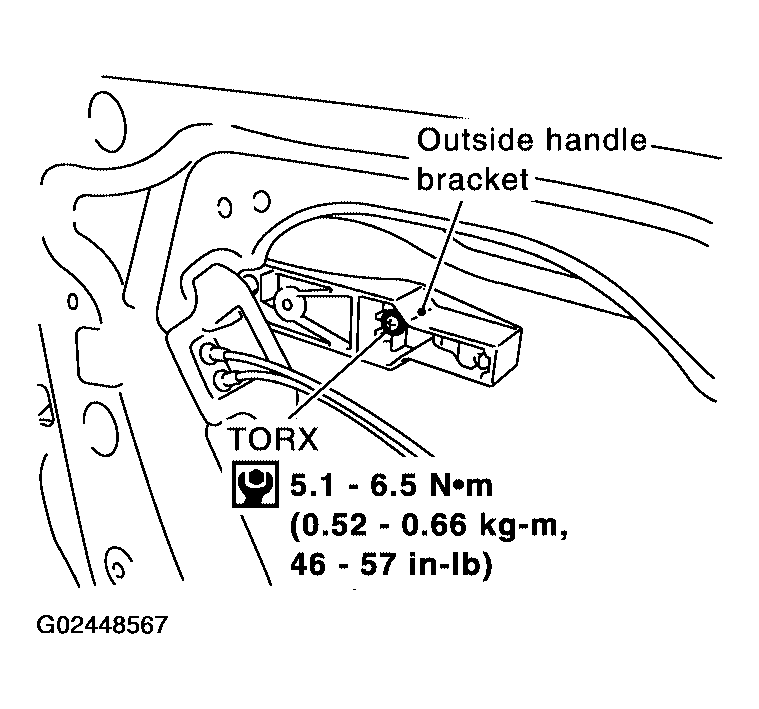

Remove the TORX bolt (T30), and remove the outside handle bracket.

Fig 6: Removing TORX Bolt - With Torque Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.

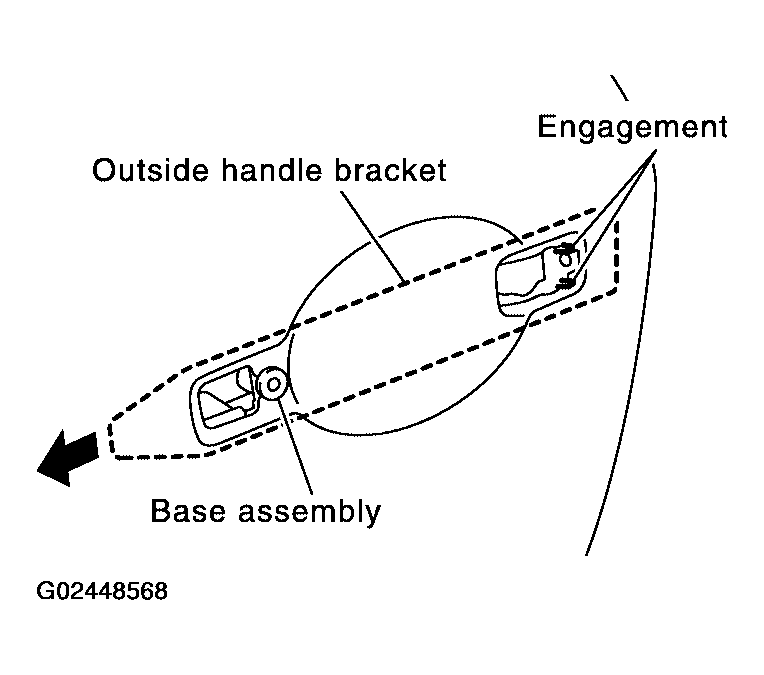

While pulling outside handle, slide toward rear of vehicle to remove outside handle and door lock assembly.

Fig 7: Removing Outside Handle & Door Lock Assembly
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the door lock actuator connector.

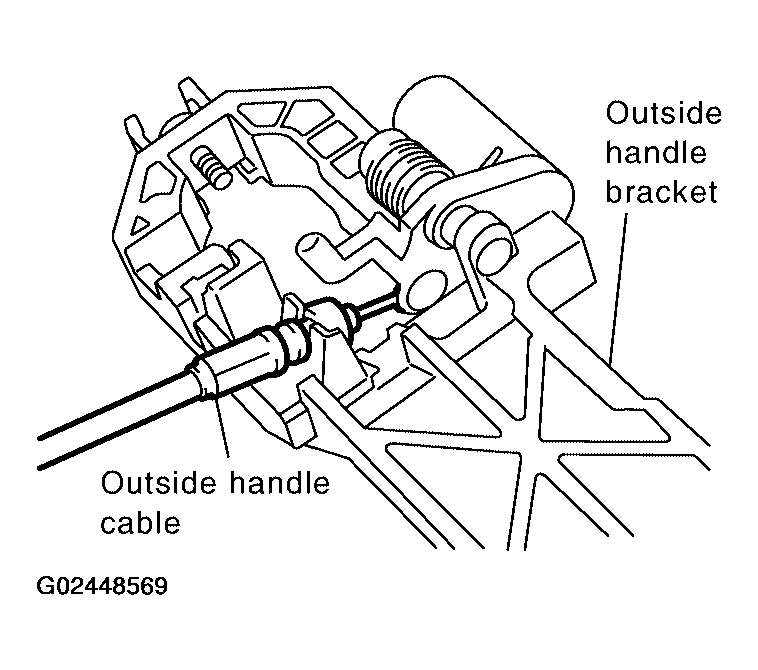

Reach to separate outside handle rod connection.

Fig 8: Separating Outside Handle Rod Connection
Courtesy of NISSAN MOTOR CO., U.S.A.
Installation is in the reverse order of removal.
