With Right Hand Automatic Sliding Door System And Automatic Back Door System

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

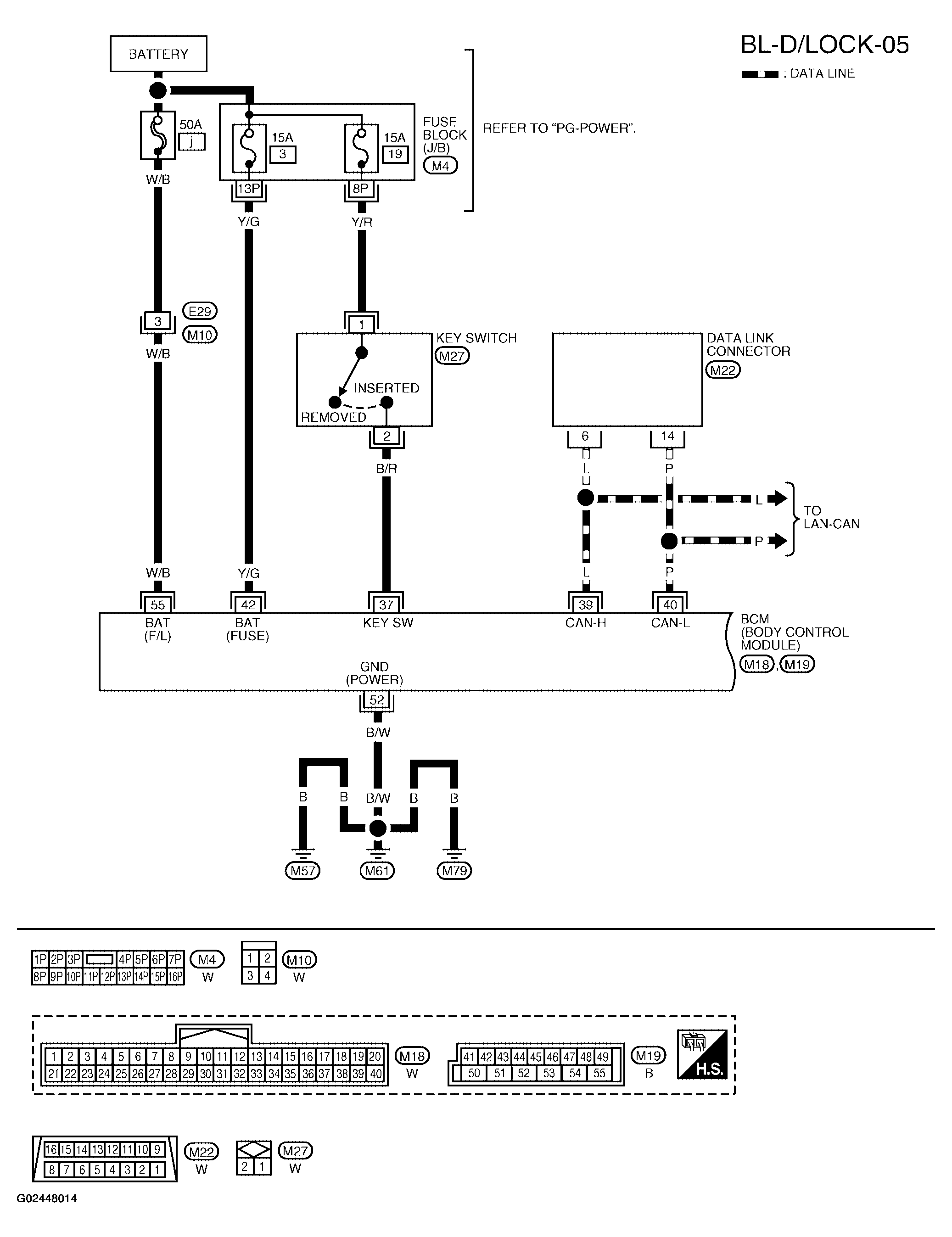

Fig 1: Wiring Diagram - With Right Hand Automatic Sliding Door System & Automatic Back Door System - BL-D/LOCK-05

Courtesy of NISSAN MOTOR CO., U.S.A.

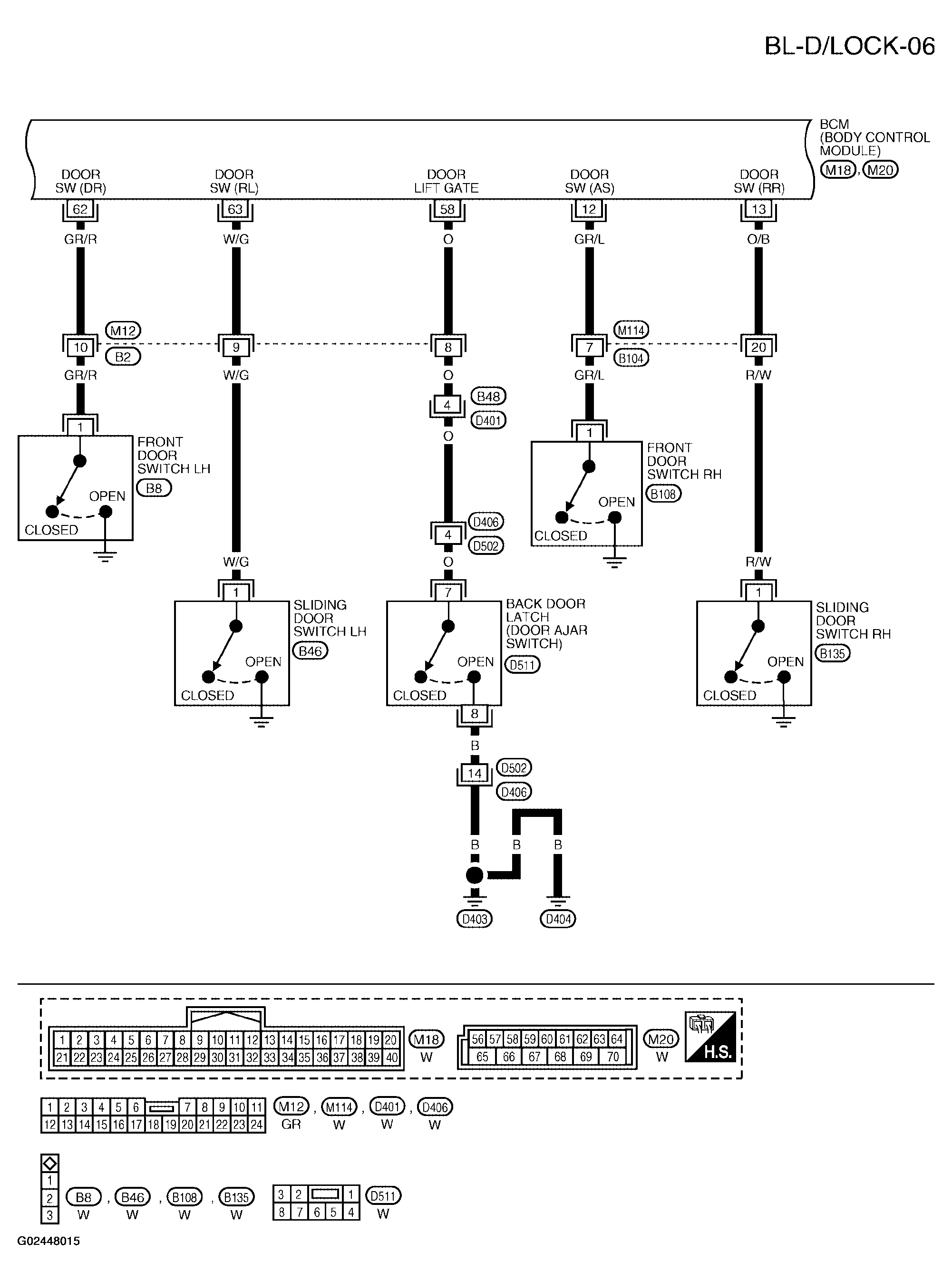

Fig 2: Wiring Diagram - With Right Hand Automatic Sliding Door System & Automatic Back Door System - BL-D/LOCK-06

Courtesy of NISSAN MOTOR CO., U.S.A.

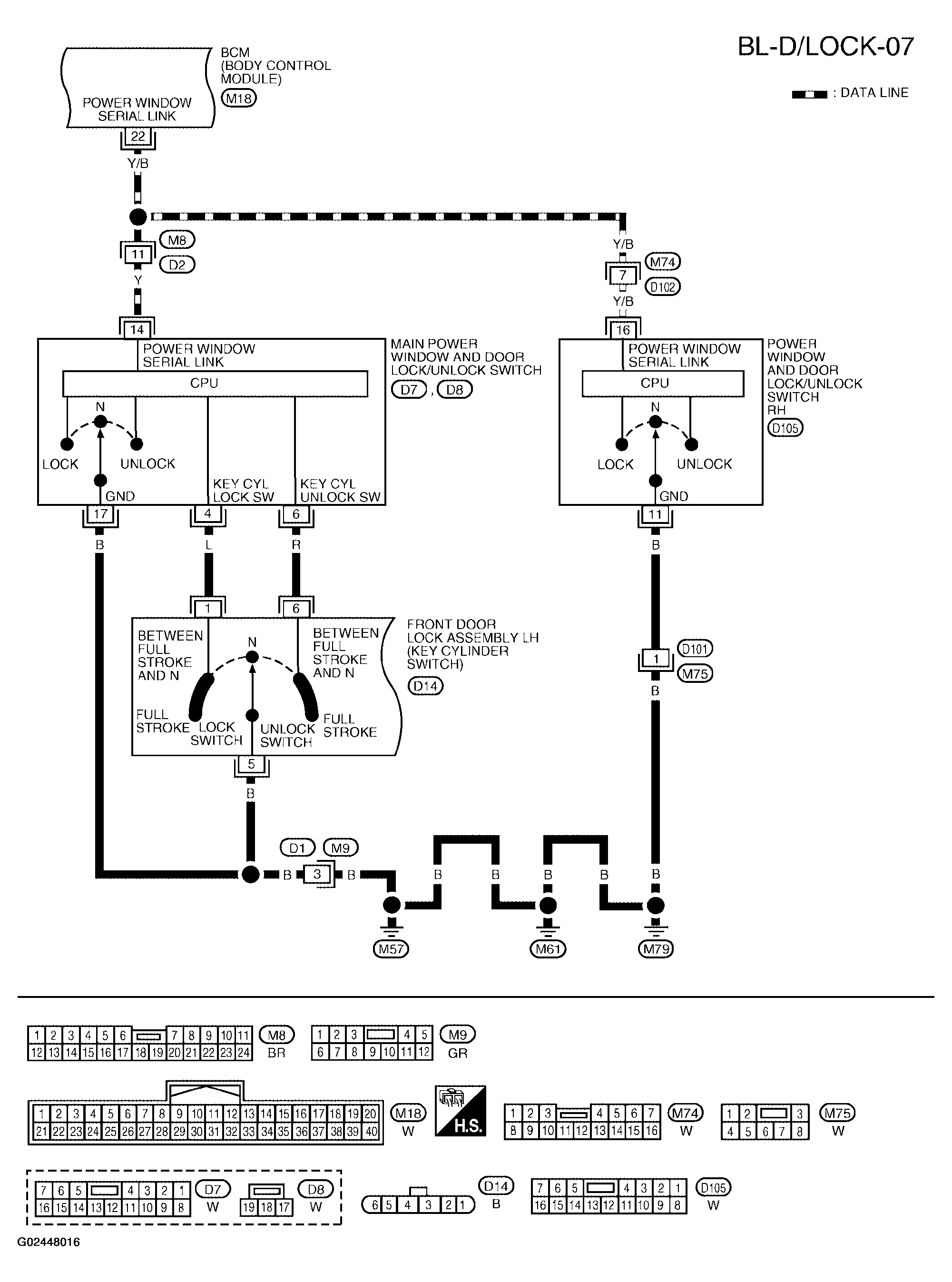

Fig 3: Wiring Diagram - With Right Hand Automatic Sliding Door System & Automatic Back Door System - BL-D/LOCK-07

Courtesy of NISSAN MOTOR CO., U.S.A.

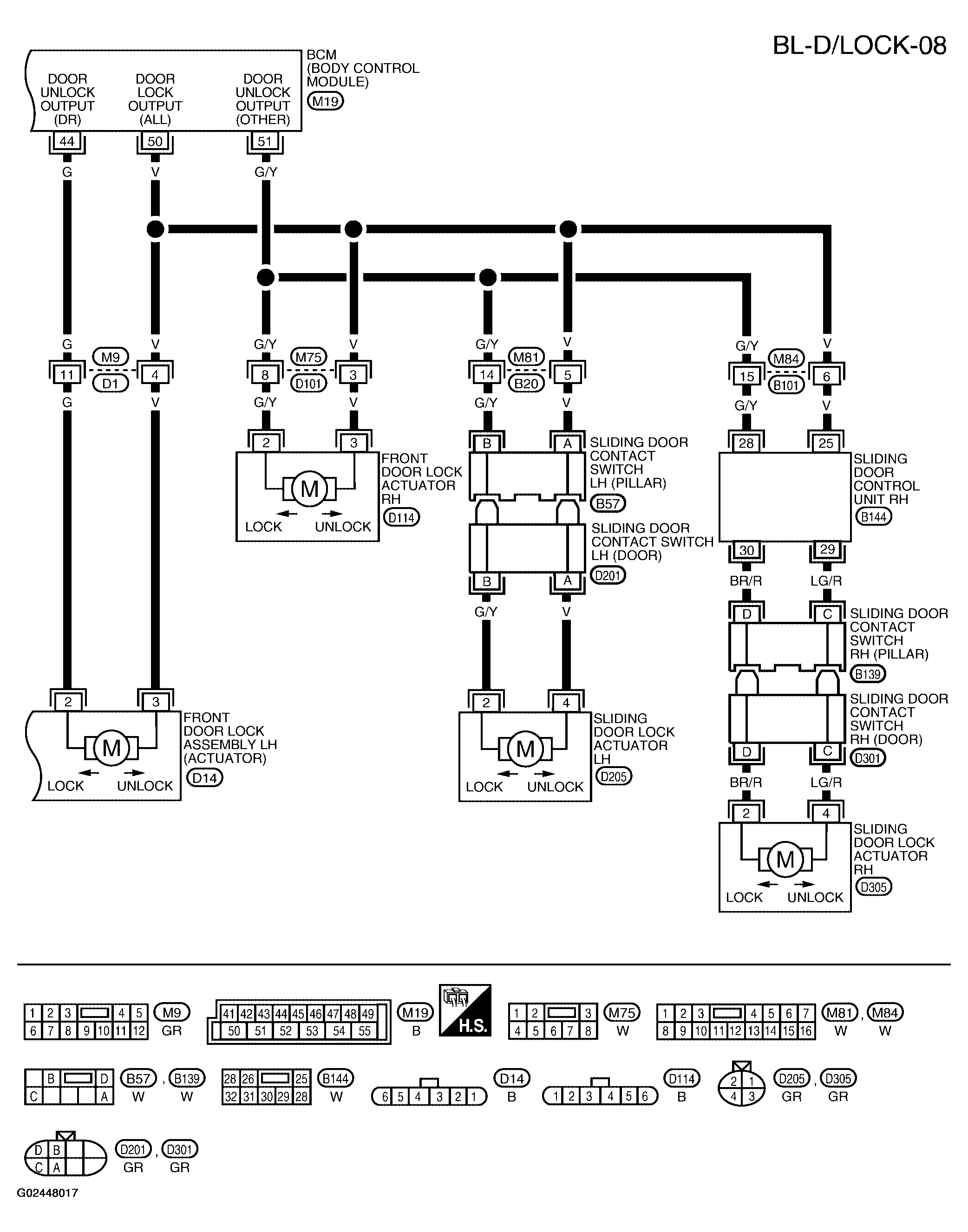

Fig 4: Wiring Diagram - With Right Hand Automatic Sliding Door System & Automatic Back Door System - BL-D/LOCK-08

Courtesy of NISSAN MOTOR CO., U.S.A.
