Front Door Lock Actuator RH Check

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR LOCK ACTUATOR SIGNAL
1. Turn ignition switch OFF.
2. Check voltage between BCM connector M19 terminals 50, 51 and ground.

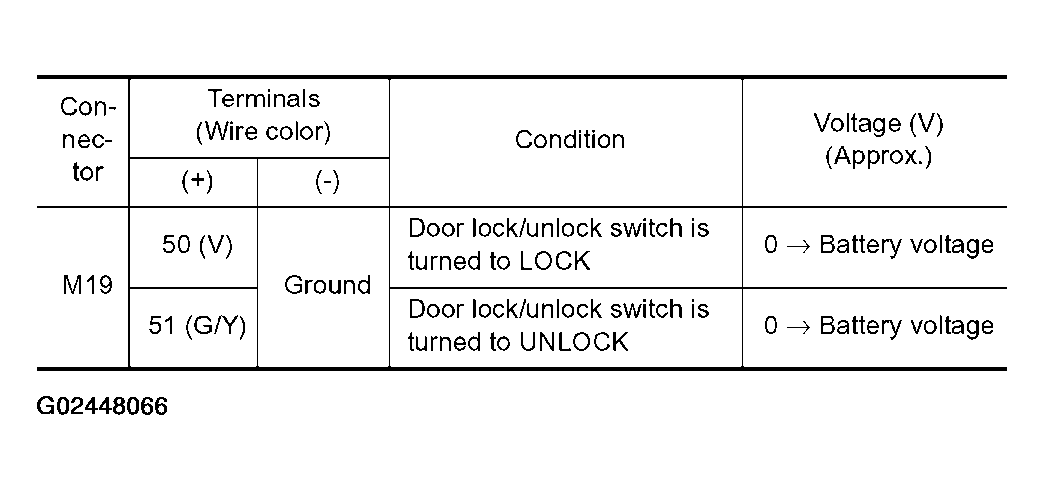

  Fig 1: Voltage Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.

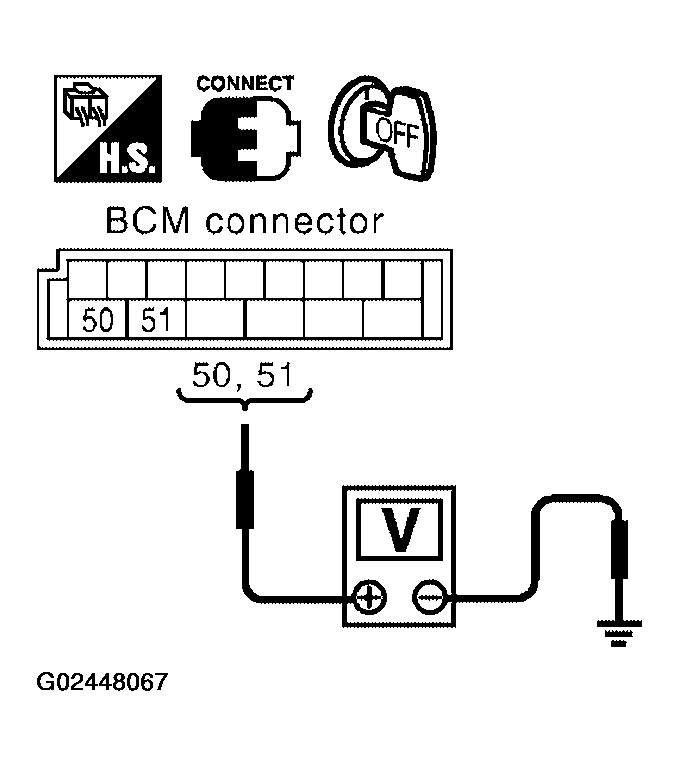

  Fig 2: Checking Voltage Between BCM Connector M19 Terminals 50, 51 & Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: GO TO 2.
- NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
CHECK DOOR LOCK ACTUATOR HARNESS
1. Disconnect BCM and front door lock actuator RH.
2. Check continuity between BCM connector M19 terminals 50, 51 and front door lock actuator RH connector D114 terminals 2, 3.

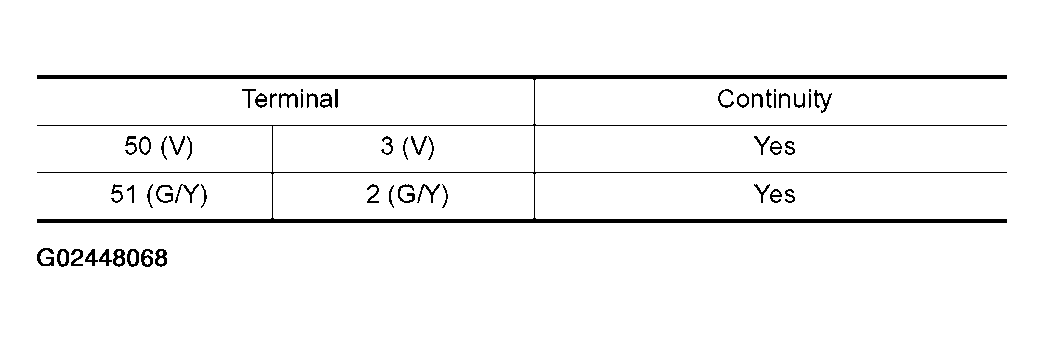

  Fig 3: Continuity Specifications (1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. Check continuity between BCM connector M19 terminals 50, 51 and body ground.

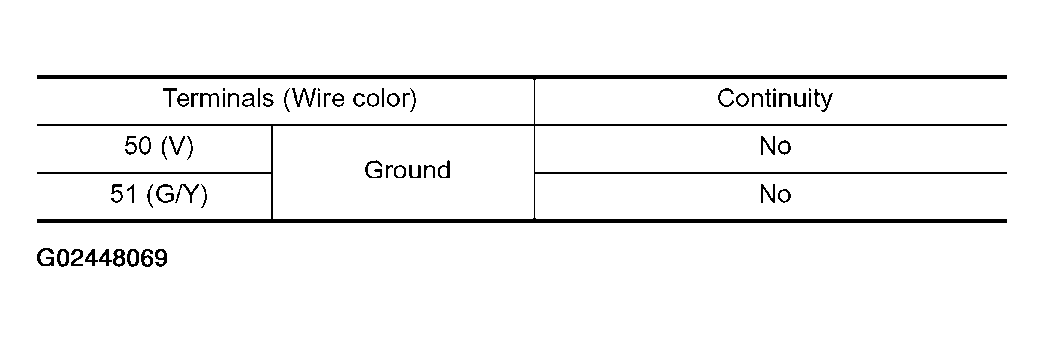

  Fig 4: Continuity Specifications (2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

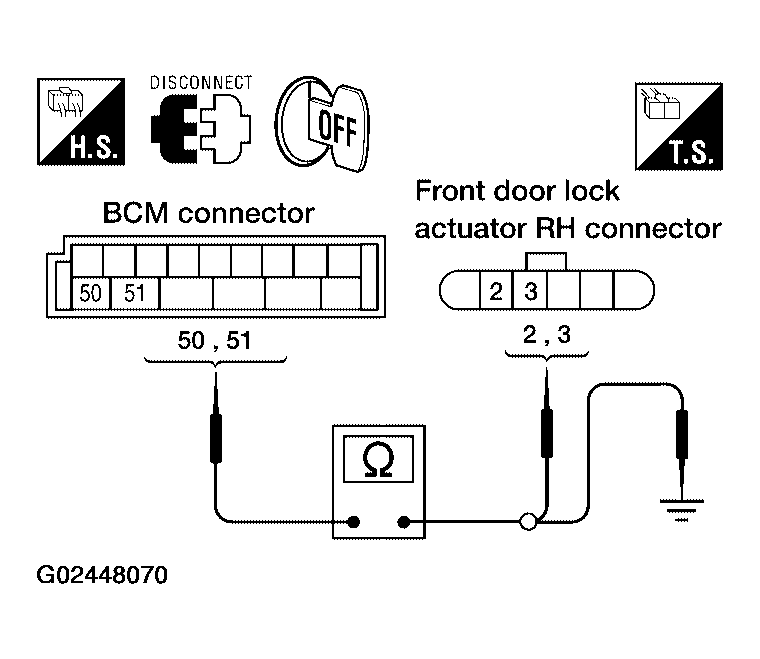

  Fig 5: Checking Continuity Between BCM Connector M19 Terminals 50, 51 & Body Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK: Replace front door lock actuator RH. Refer to "REMOVAL AND INSTALLATION ".
- NG: Repair or replace harness.
