Section 1524 (Body, Lock & Security System)
>>
NVIS(NISSAN Vehicle Immobilizer System-NATS)
>>
Wiring Diagram - NATS -
Wiring Diagram - NATS -
WARNING:
This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

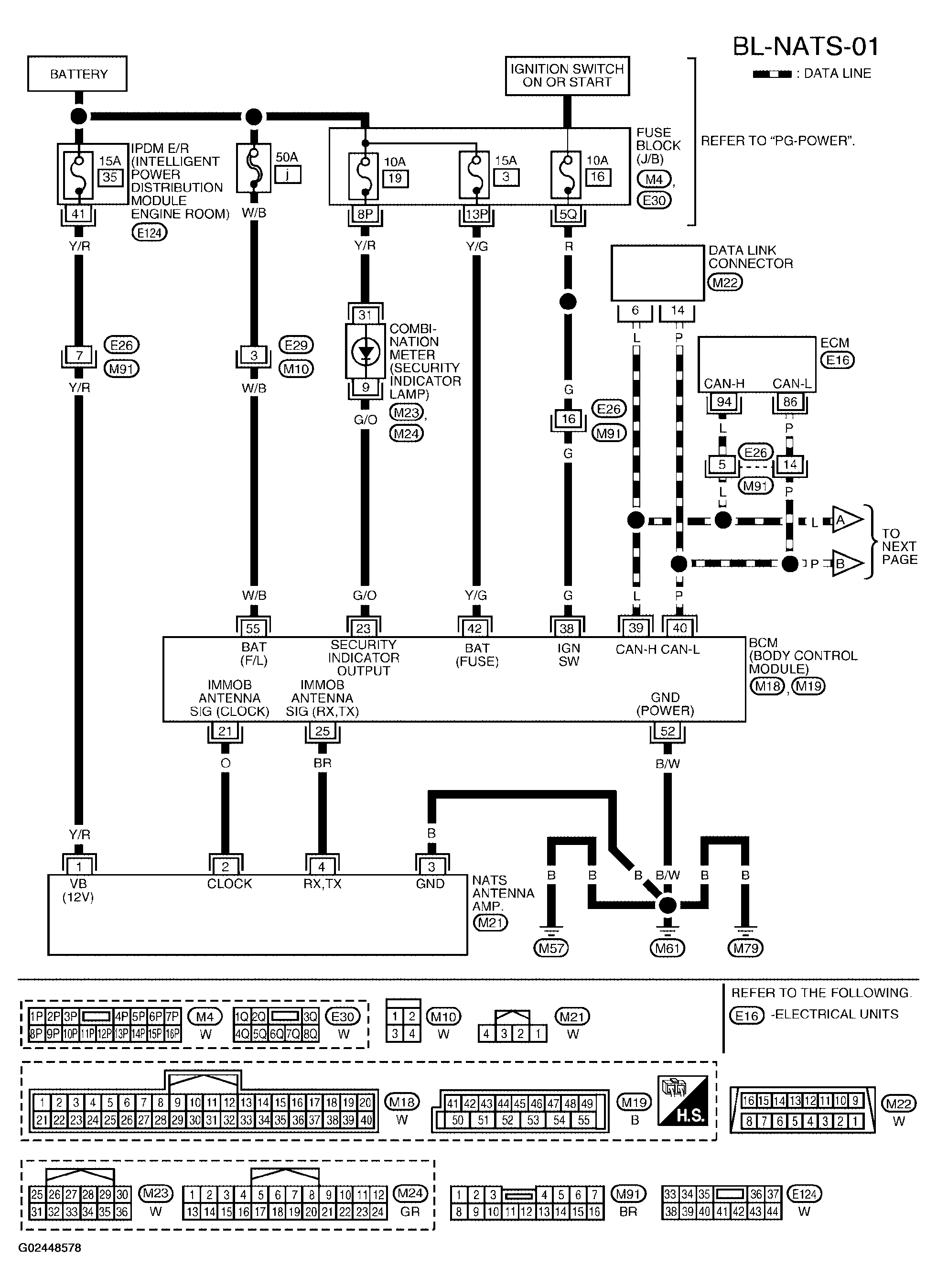

Fig 1: Wiring Diagram - Nissan Vehicle Immobilizer System - BL-NATS-01
Courtesy of NISSAN MOTOR CO., U.S.A.

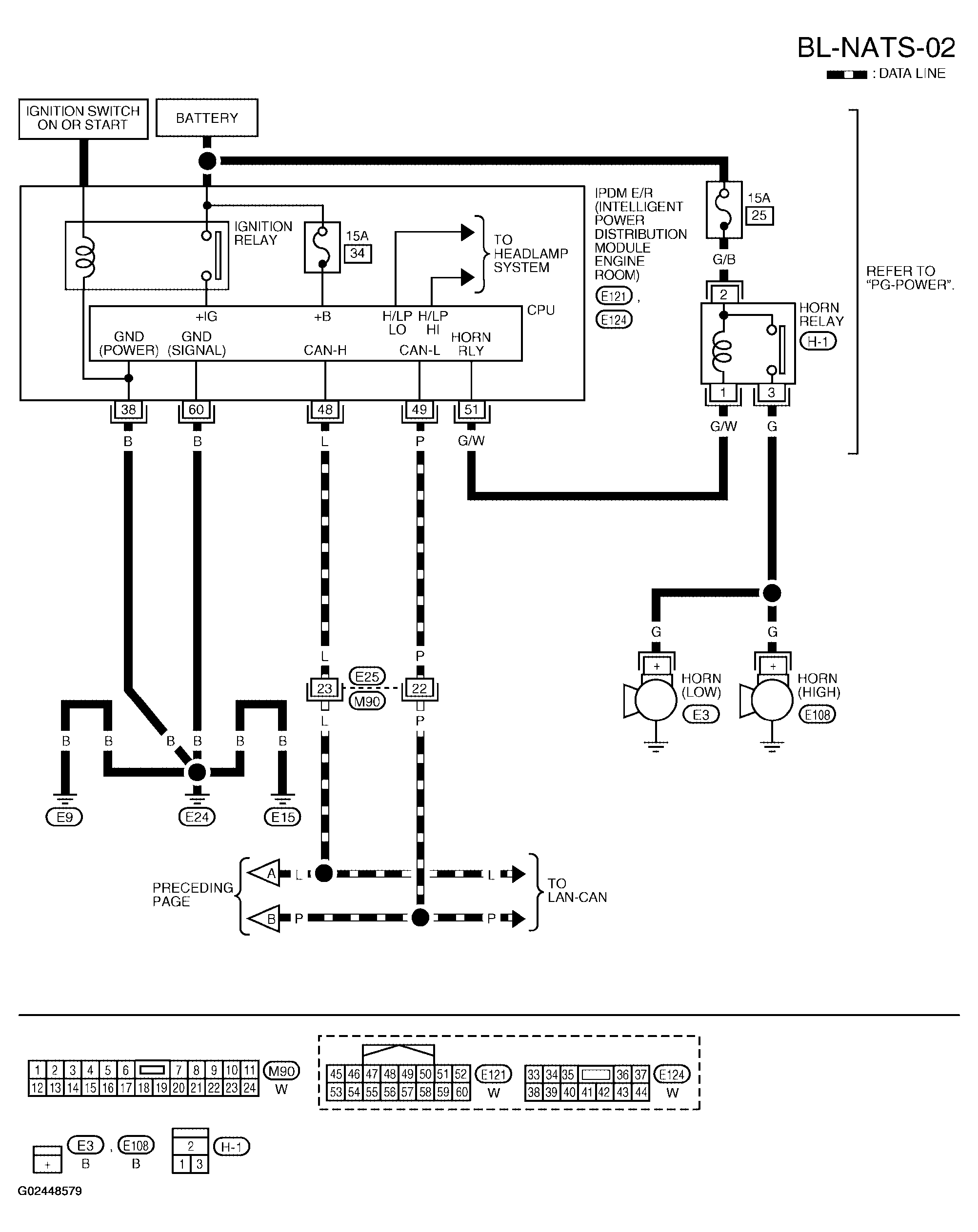

Fig 2: Wiring Diagram - Nissan Vehicle Immobilizer System - BL-NATS-02
Courtesy of NISSAN MOTOR CO., U.S.A.
