NVIS (NATS) Self-Diagnostic Results Item Chart

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

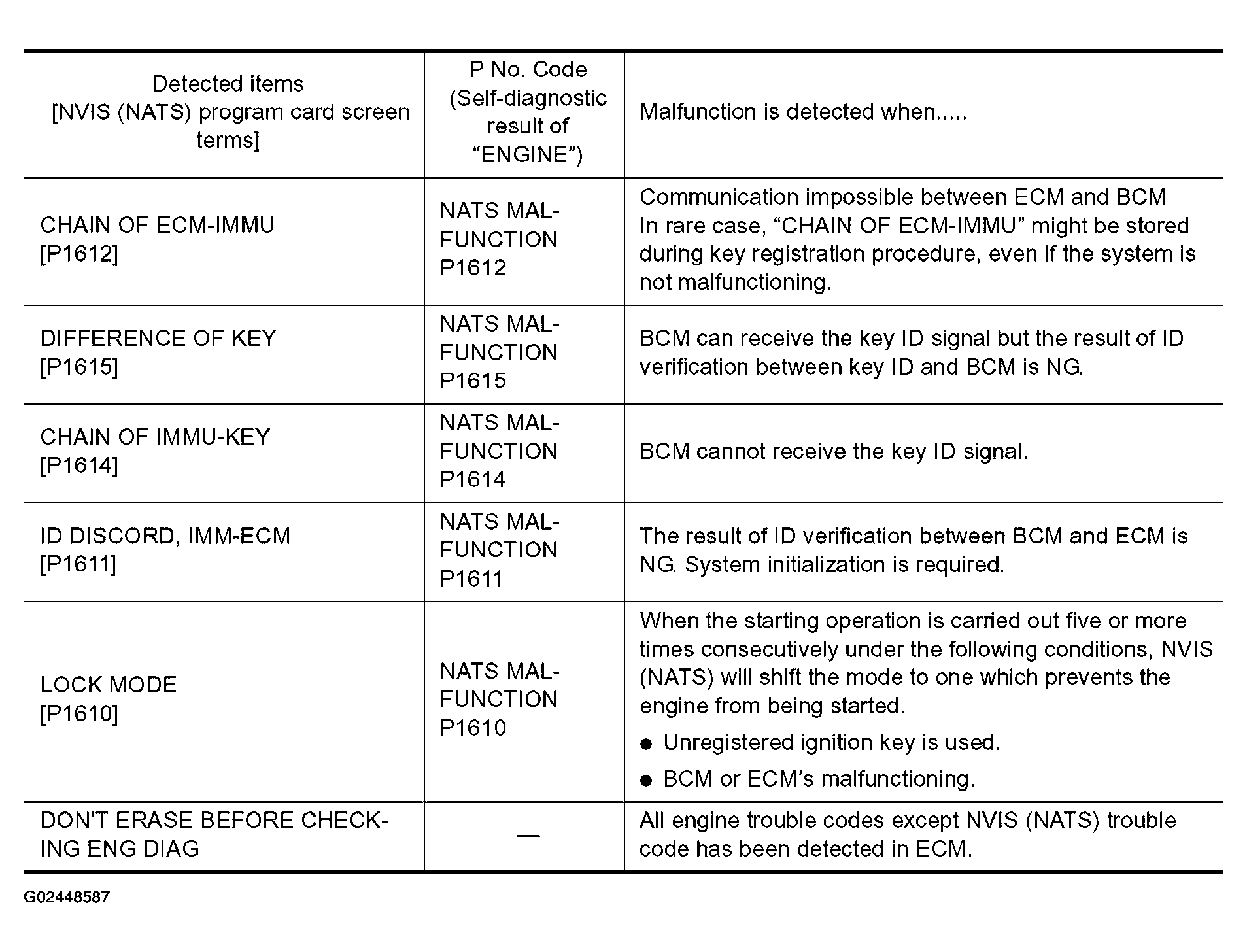

Fig 1: NVIS Self-Diagnostic Results Item Chart
G02448587Courtesy of NISSAN MOTOR CO., U.S.A.
