Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Insert NVIS (NATS) program card into CONSULT-II.
- Program card: NATS (AEN02C-1)
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

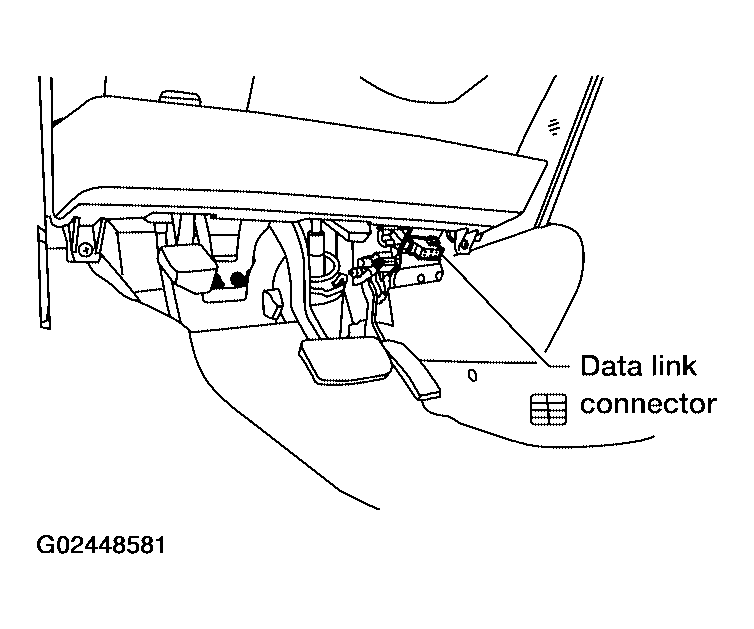

Fig 1: Identifying Data Link Connector Location
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

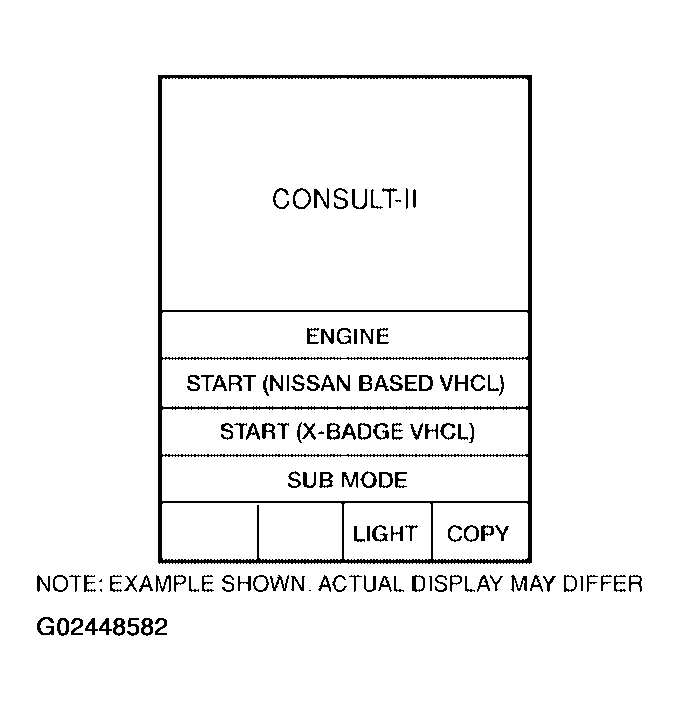

Fig 2: CONSULT-II Data Display START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "V42" and OK on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION " in General Information.

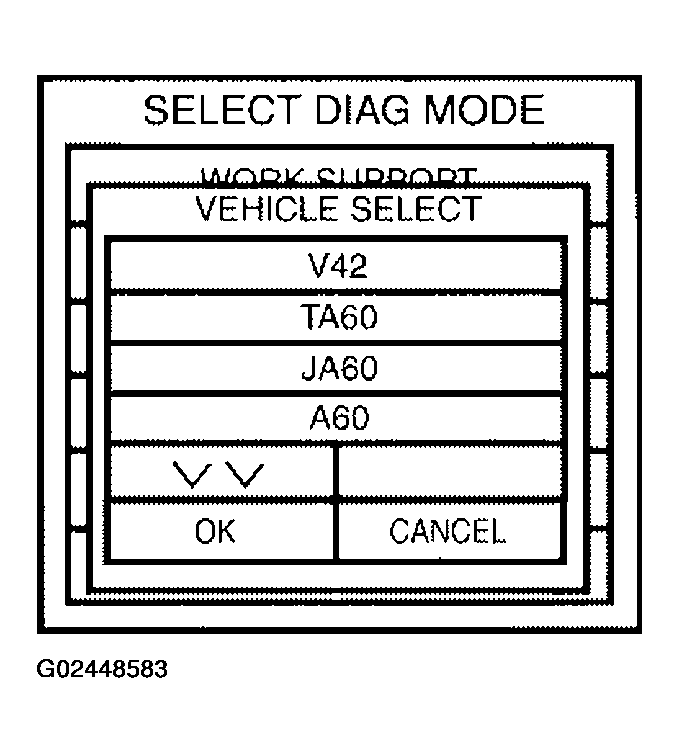

Fig 3: CONSULT-II Data Display VEHICLE SELECT
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "NATS V.5.0".
If "NATS V5.0" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

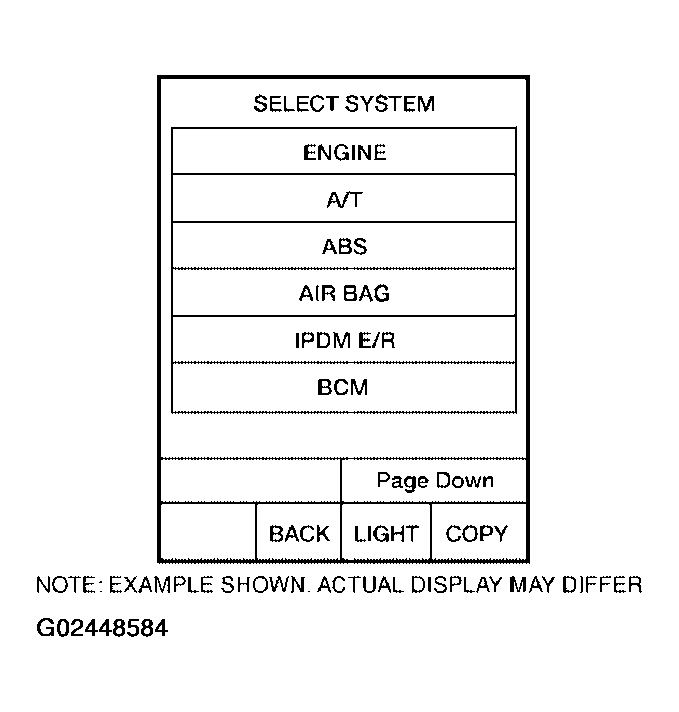

Fig 4: CONSULT-II Data Display NATS V.5.0
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform each diagnostic test mode according to each service procedure.
- For further information, see the CONSULT-II Operation Manual NATS-IVIS/NVIS.

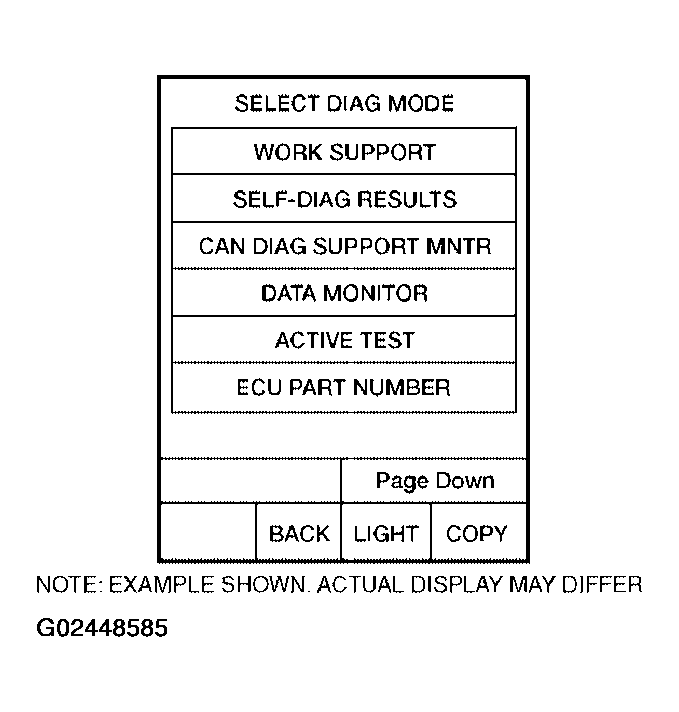

Fig 5: CONSULT-II Data Display SELECT DATA MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
