Removal and Installation of Hood Lock Control: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front grille. Refer to "REMOVAL AND INSTALLATION - FRONT GRILLE ".
  2. Remove the front fender protector (LH). Refer to "REMOVAL AND INSTALLATION - FRONT FENDER PROTECTOR (LH) ".
  3. Disconnect the hood lock cable from the hood lock, and unclip it from the radiator core support upper and hoodledge.
  4. Remove the bolt and the hood opener.
  5. Remove the grommet on the dash lower panel, and pull the hood lock cable toward the passenger room.
    CAUTION: While pulling, be careful not to damage the outside of the hood lock cable.

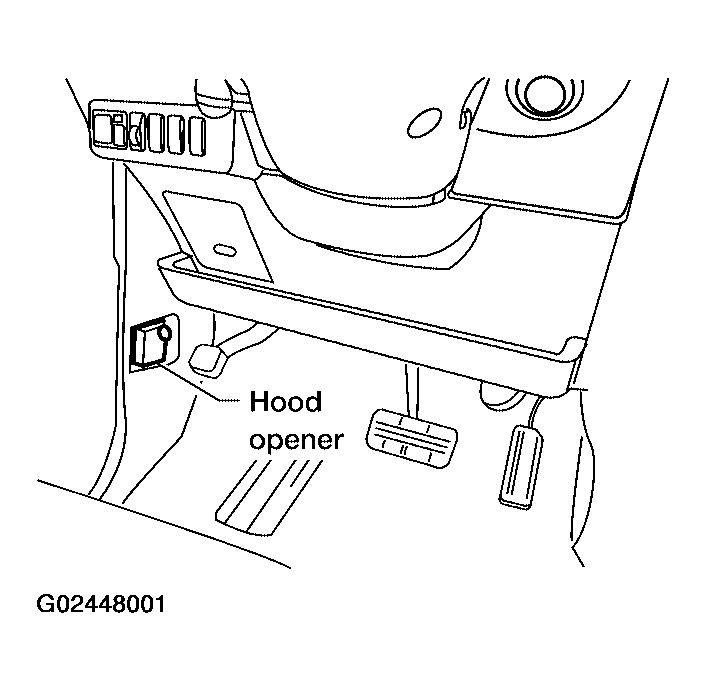

    Fig 1: Removing Hood Lock Control From Dash Lower Panel
    G02448001Courtesy of NISSAN MOTOR CO., U.S.A.
