Removal and Installation of Hood Lock Control: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Pull the hood lock cable through the dash lower panel hole to the engine room. Be careful not to bend the cable too much, keeping the radius 100mm (3.94 in) or more.

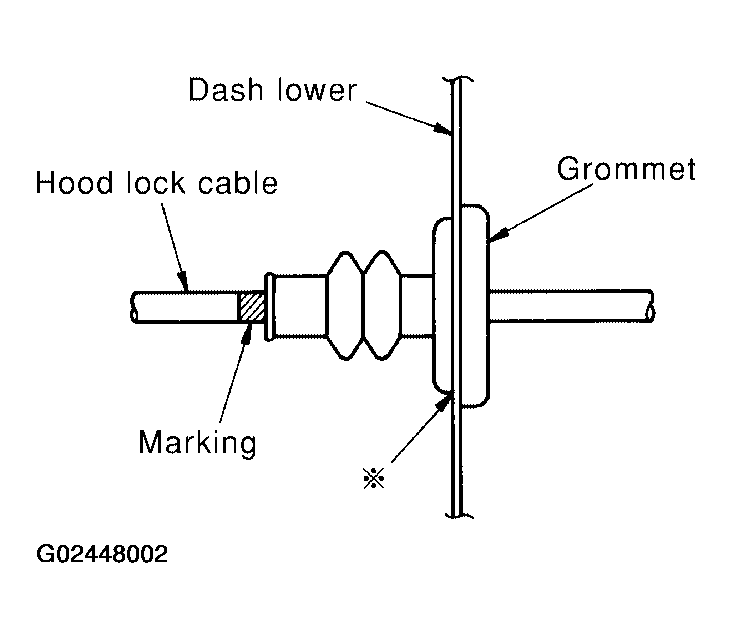

Fig 1: Pulling Hood Lock Cable Through Dash Lower Panel Hole
Courtesy of NISSAN MOTOR CO., U.S.A.
Make sure the cable is not offset from the positioning grommet, and push the grommet into the panel hole securely.
Apply the sealant to the grommet (at * mark) properly.
Install the cable securely to the lock.

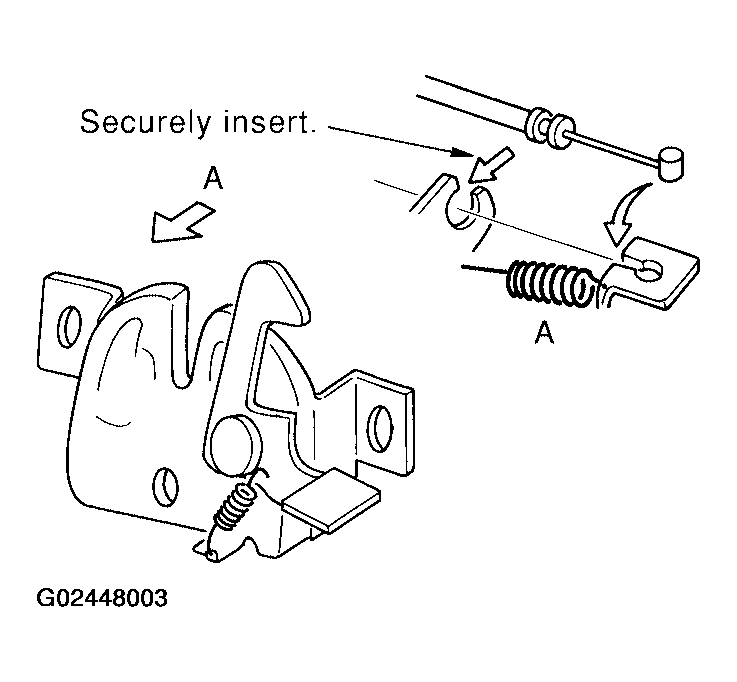

Fig 2: Installing Cable To Lock
Courtesy of NISSAN MOTOR CO., U.S.A.
After installing, check the hood lock adjustment and hood opener operation.
