Removal and Installation of Hood Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

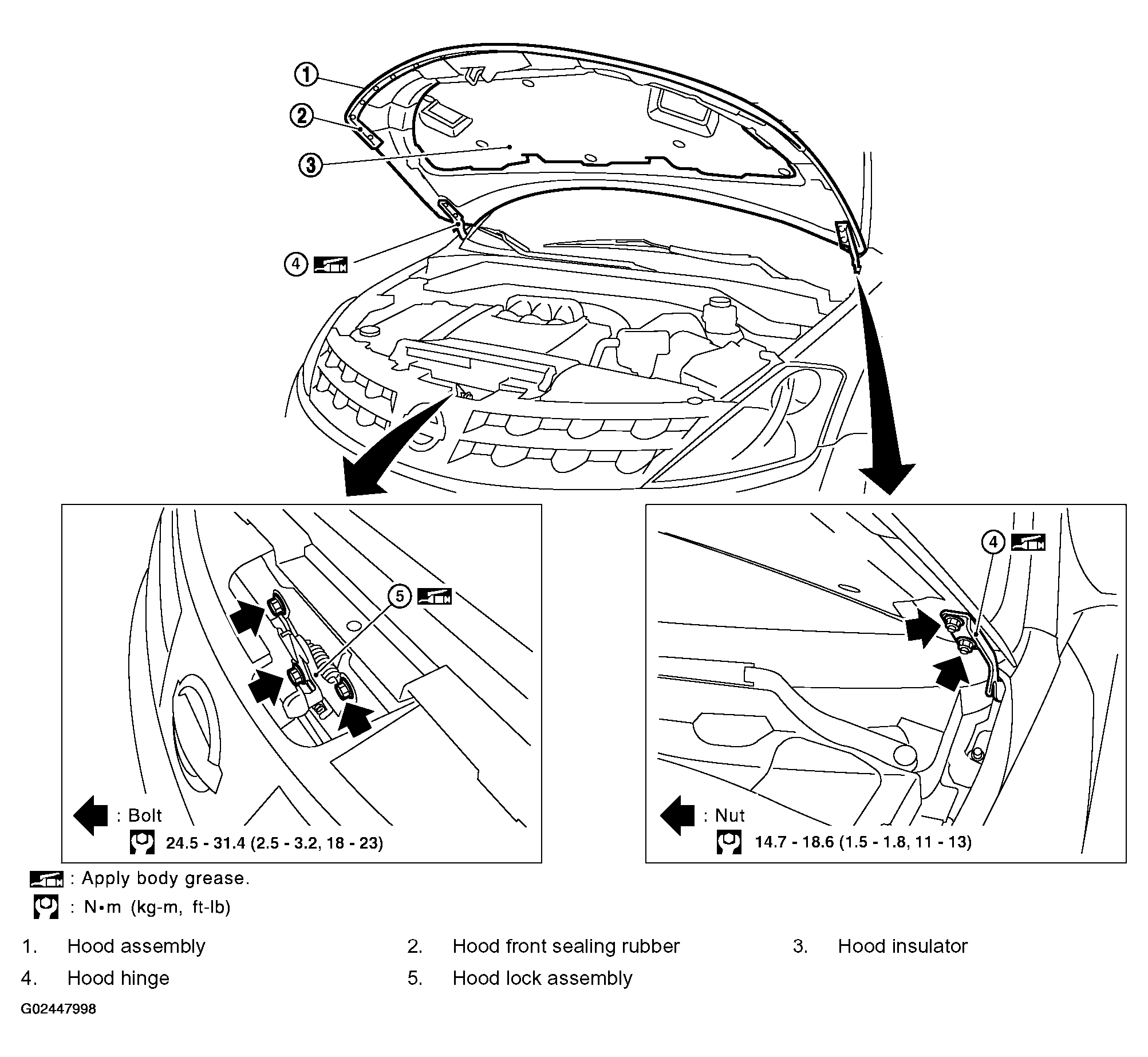

Fig 1: Removing/Installing Of Hood Assembly - With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Support the hood striker with a proper material to prevent it from falling.
WARNING: Body injury may occur if no supporting rod is holding the hood open when removing the damper stay.

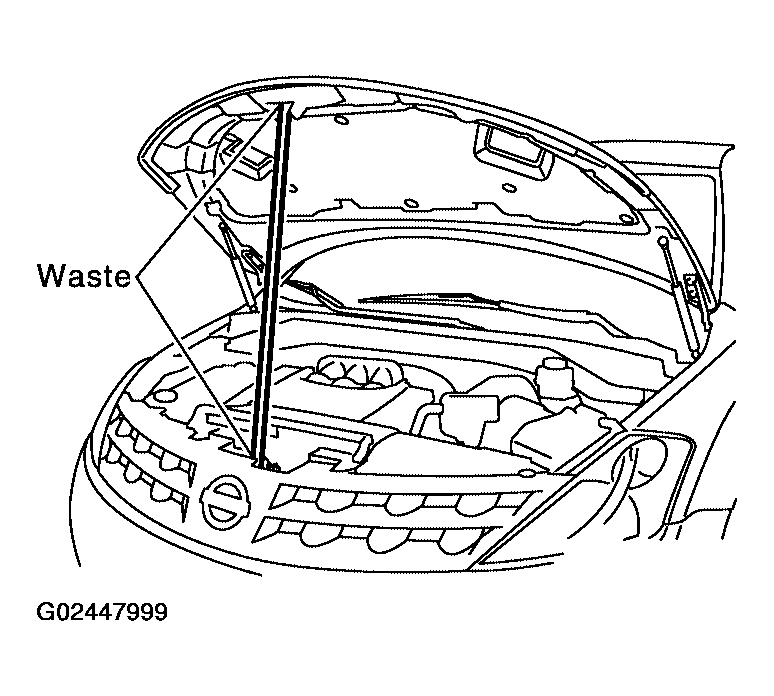

Fig 2: Supporting Hood Striker
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the hinge nuts on the hood to remove the hood assembly.
CAUTION: Operate with two workers, because of its heavy weight.

Installation is in the reverse order of removal.
