Hood Lock Adjustment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move the hood lock to the left or right so that striker center is vertically aligned with hood lock center (when viewed from vehicle front).
  2. Make sure the secondary latch is properly engaged with the secondary striker with hood's own weight by dropping it from approx. 200 mm (7.87 in) height or by pressing it lightly approx. 3 kg (29 N, 7lb).
    CAUTION: Do not drop the hood from 300 mm (11.81 in) height or higher.
  3. After adjusting hood lock, tighten the lock bolts to the specified torque.

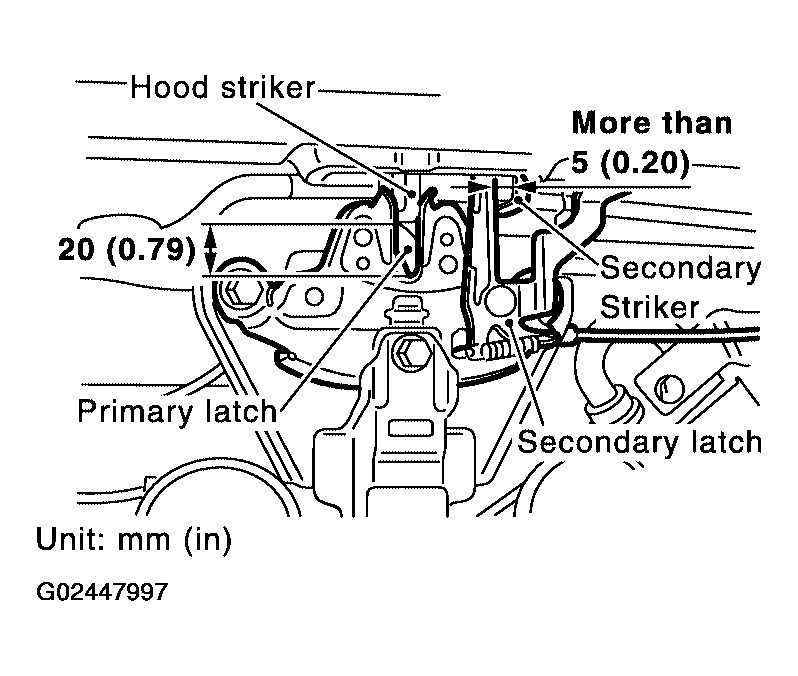

    Fig 1: Adjusting Hood Lock
    G02447997Courtesy of NISSAN MOTOR CO., U.S.A.
