Striker Adjustment

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Adjust the striker so that it becomes parallel with the lock insertion direction.

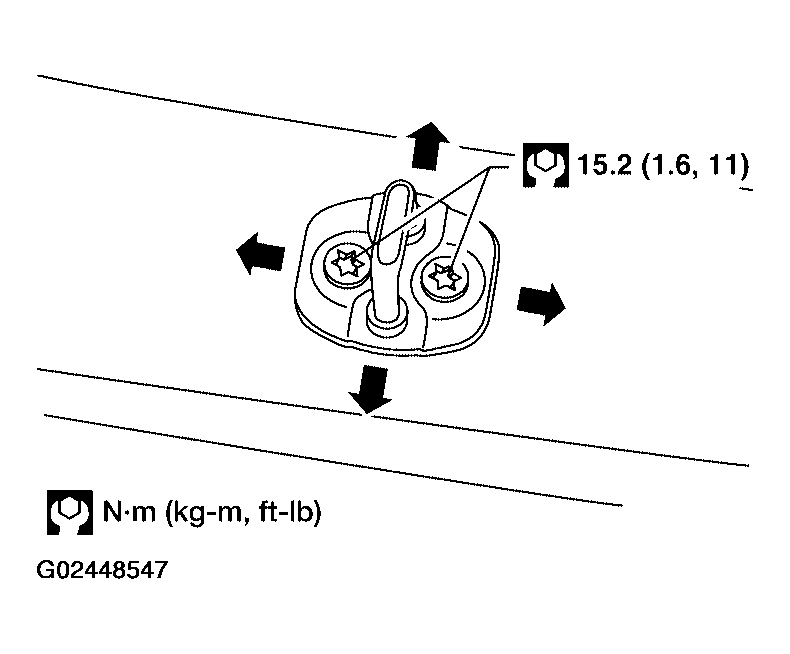

    Fig 1: Adjusting Striker - With Torque Specifications
    G02448547Courtesy of NISSAN MOTOR CO., U.S.A.
