With Right And Left Hand Slide Door Auto Closure System

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

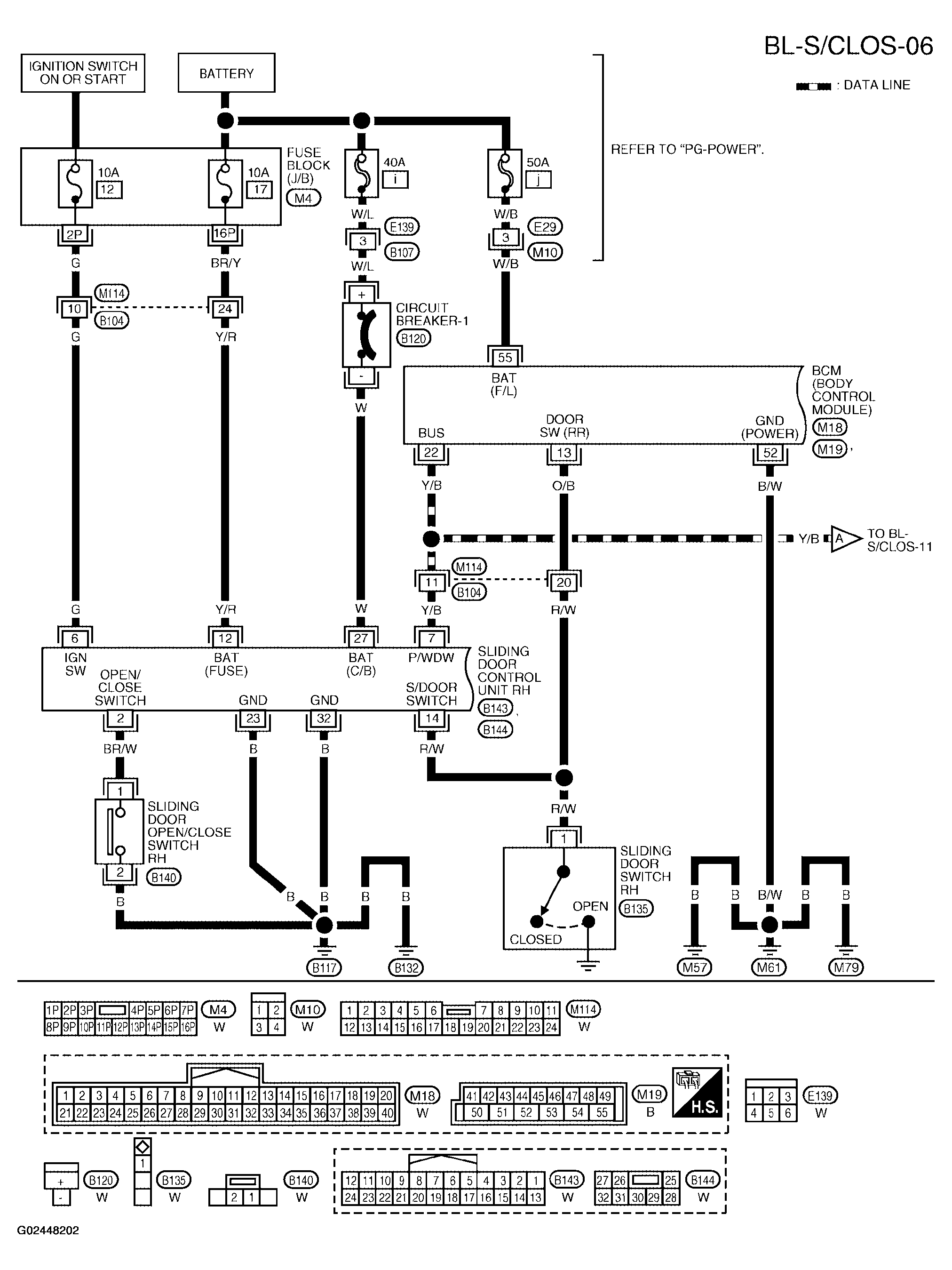

Fig 1: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-06

Courtesy of NISSAN MOTOR CO., U.S.A.

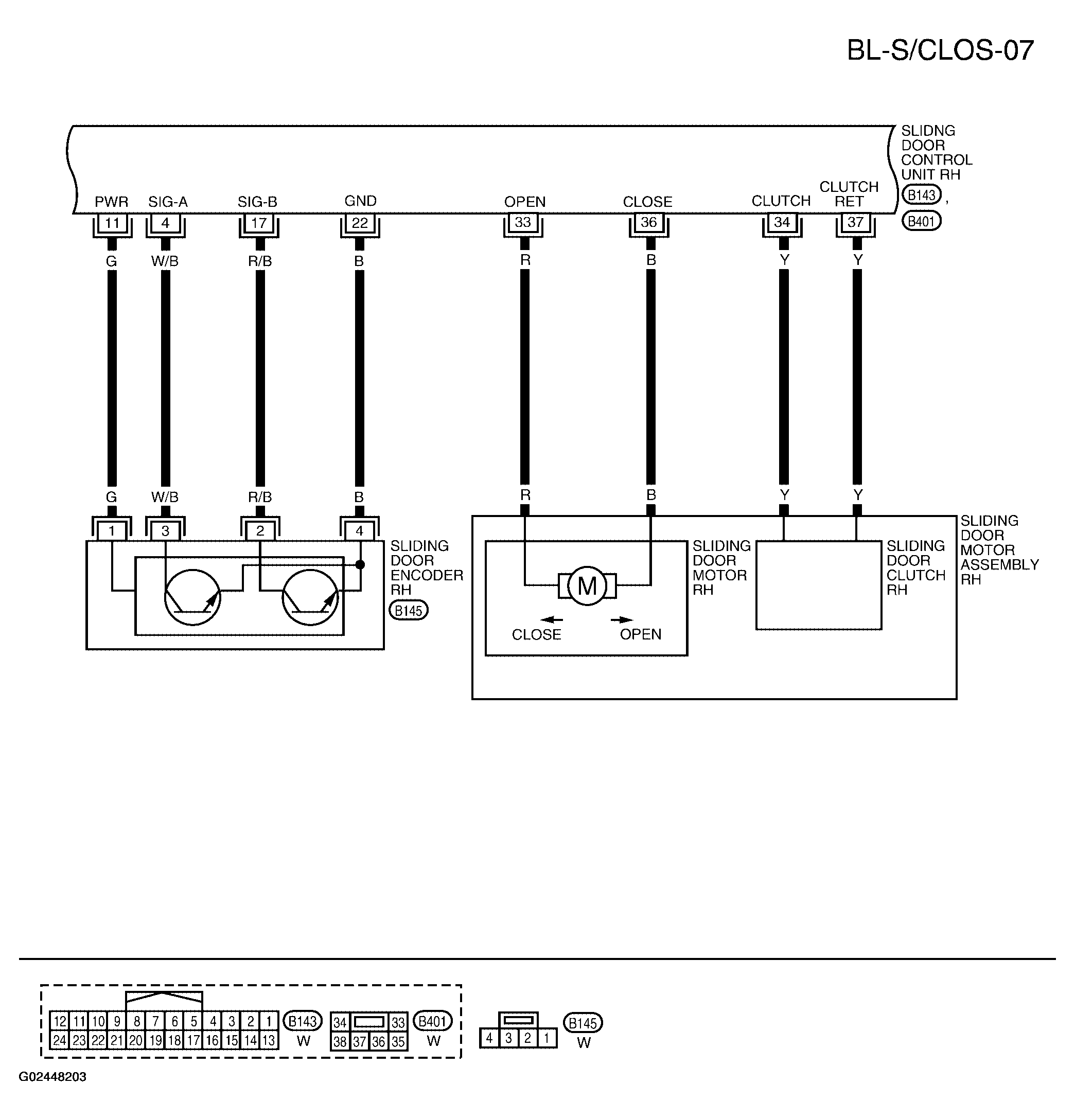

Fig 2: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-07

Courtesy of NISSAN MOTOR CO., U.S.A.

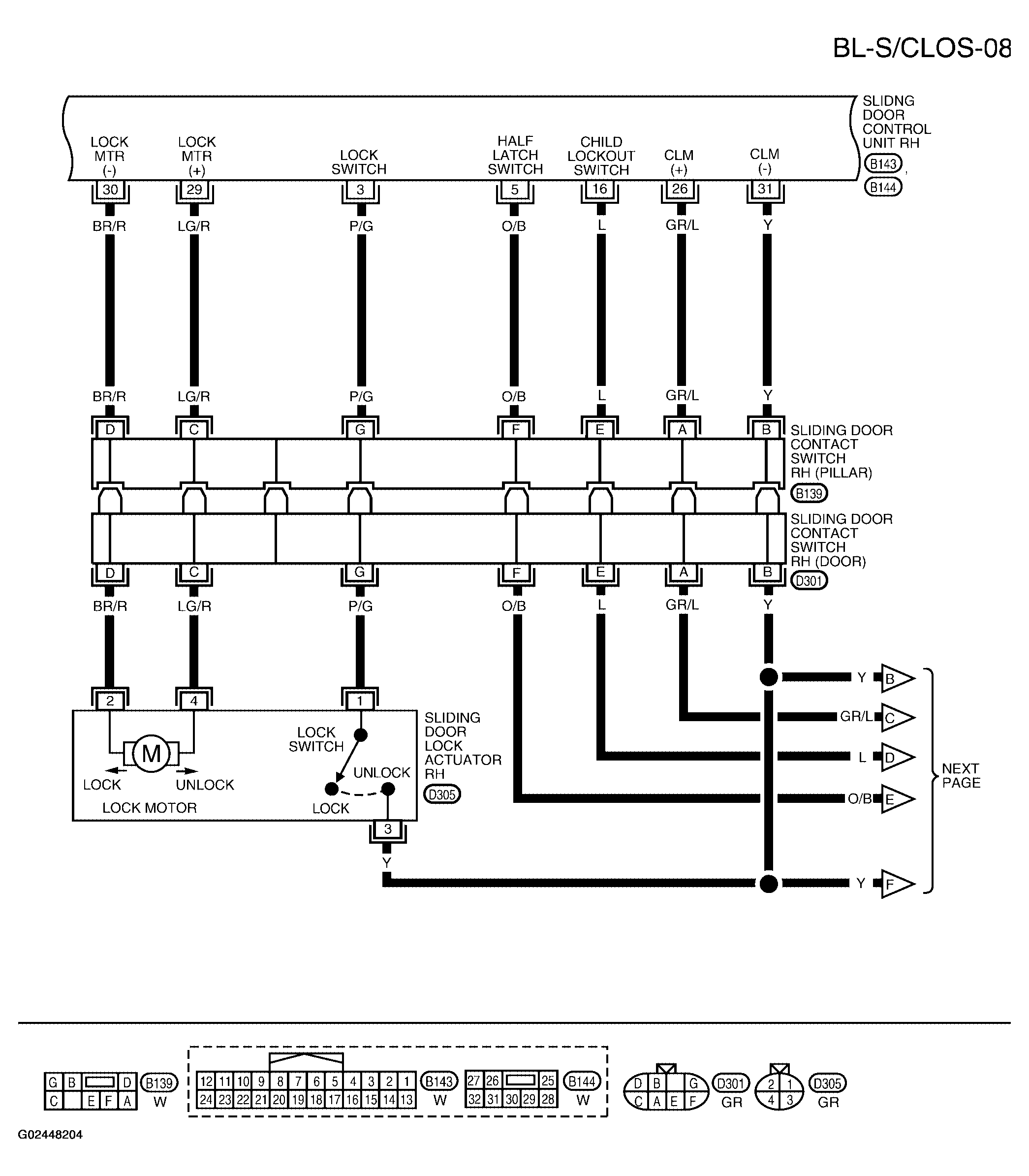

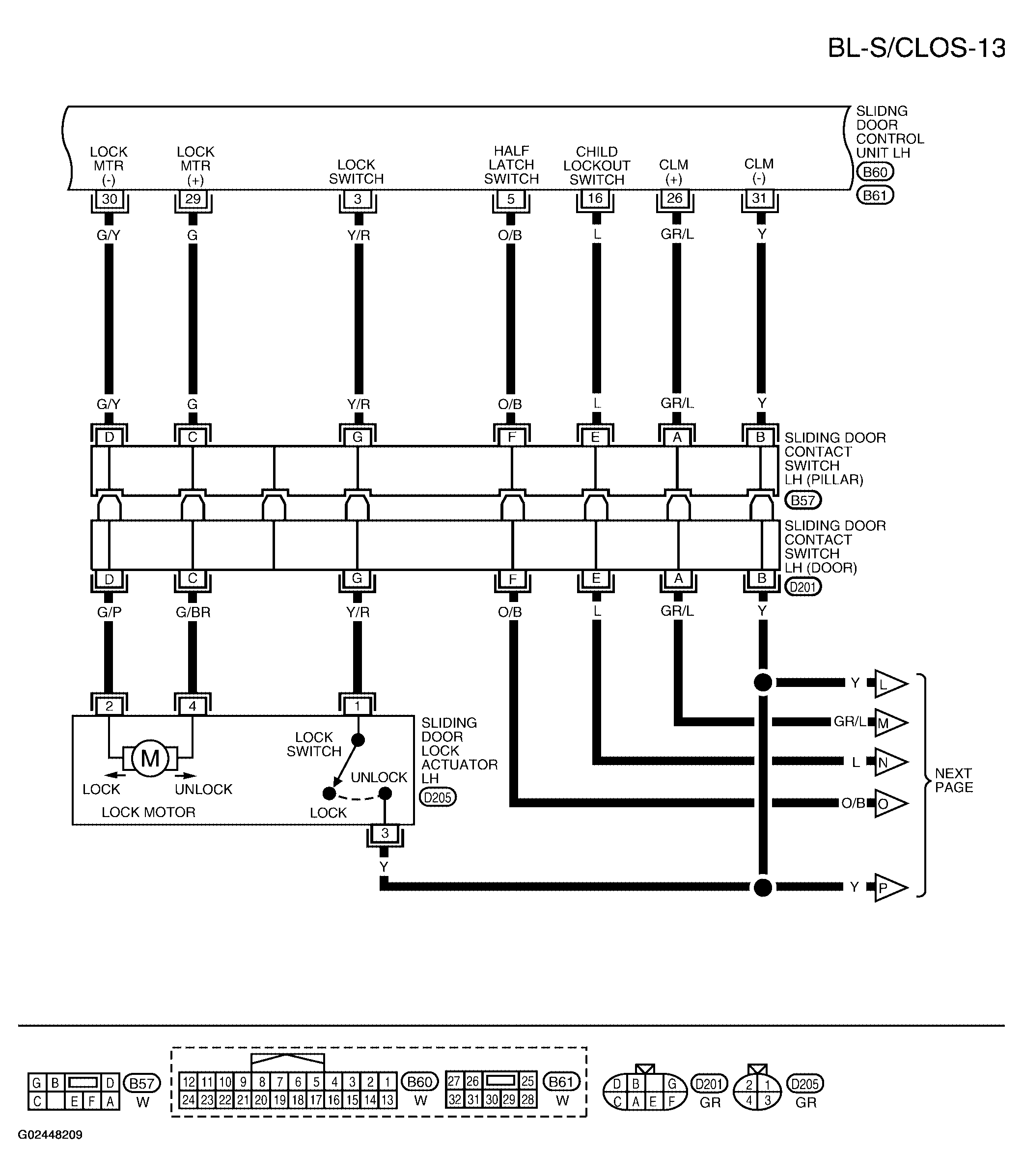

Fig 3: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-08

Courtesy of NISSAN MOTOR CO., U.S.A.

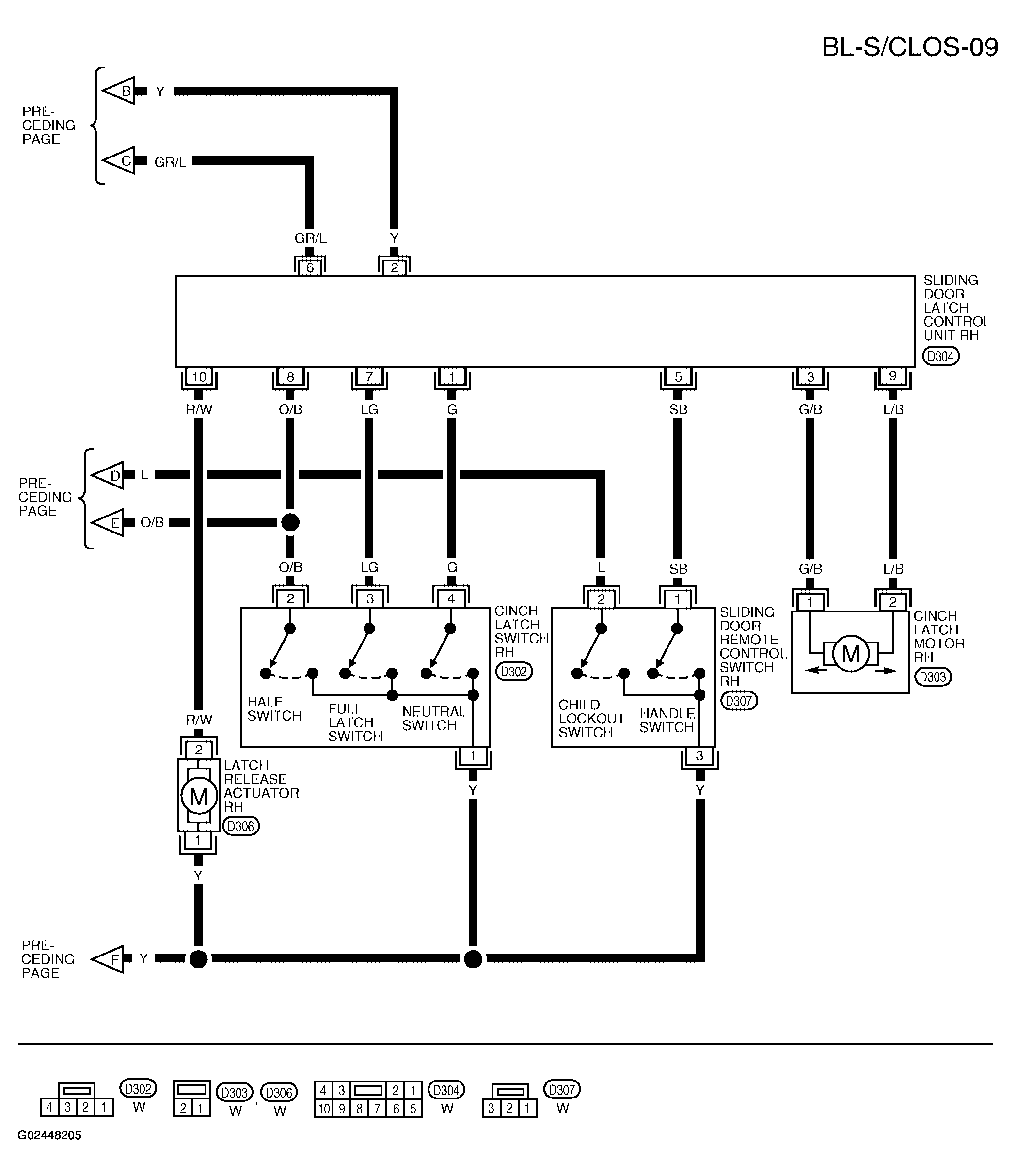

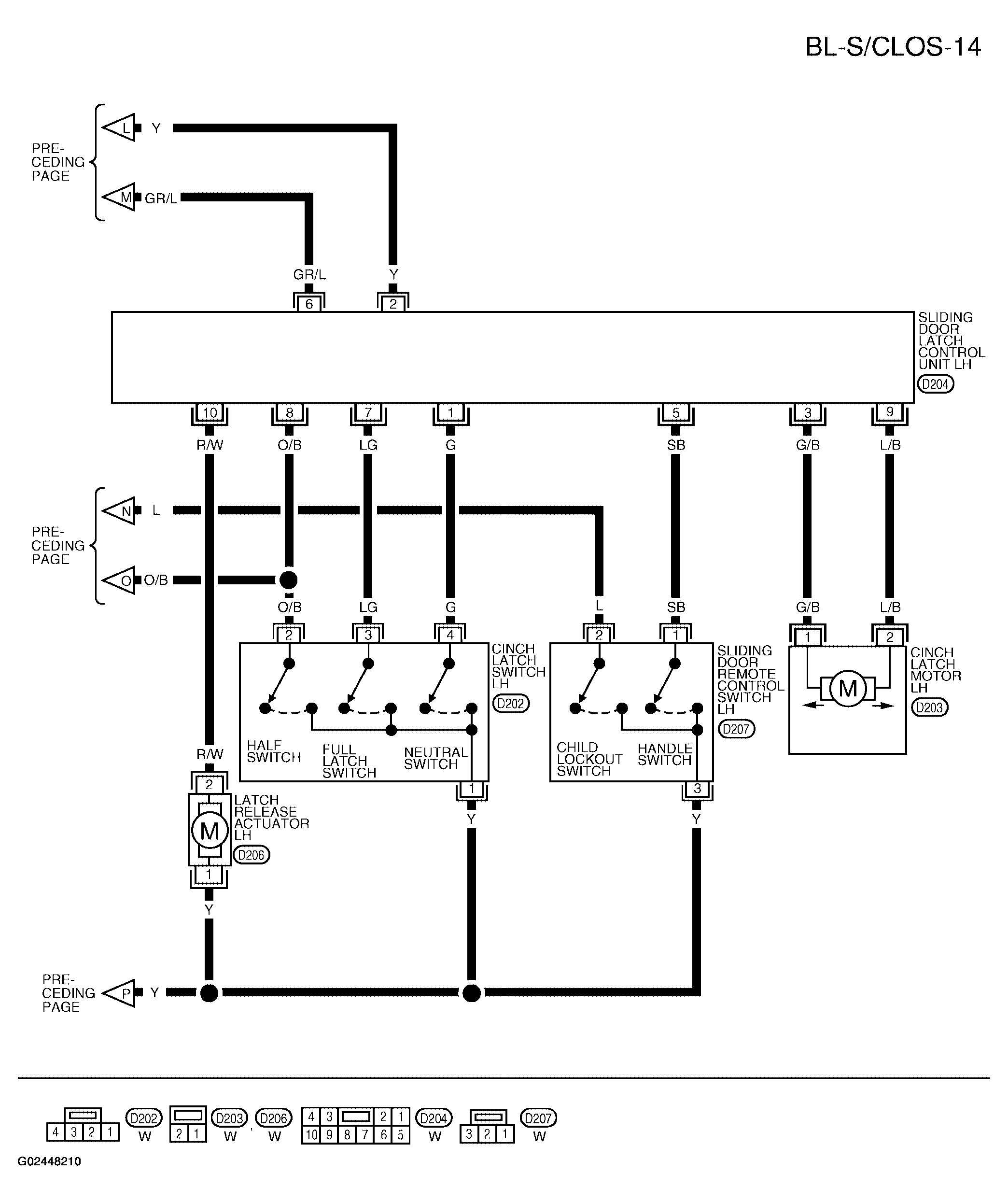

Fig 4: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-09

Courtesy of NISSAN MOTOR CO., U.S.A.

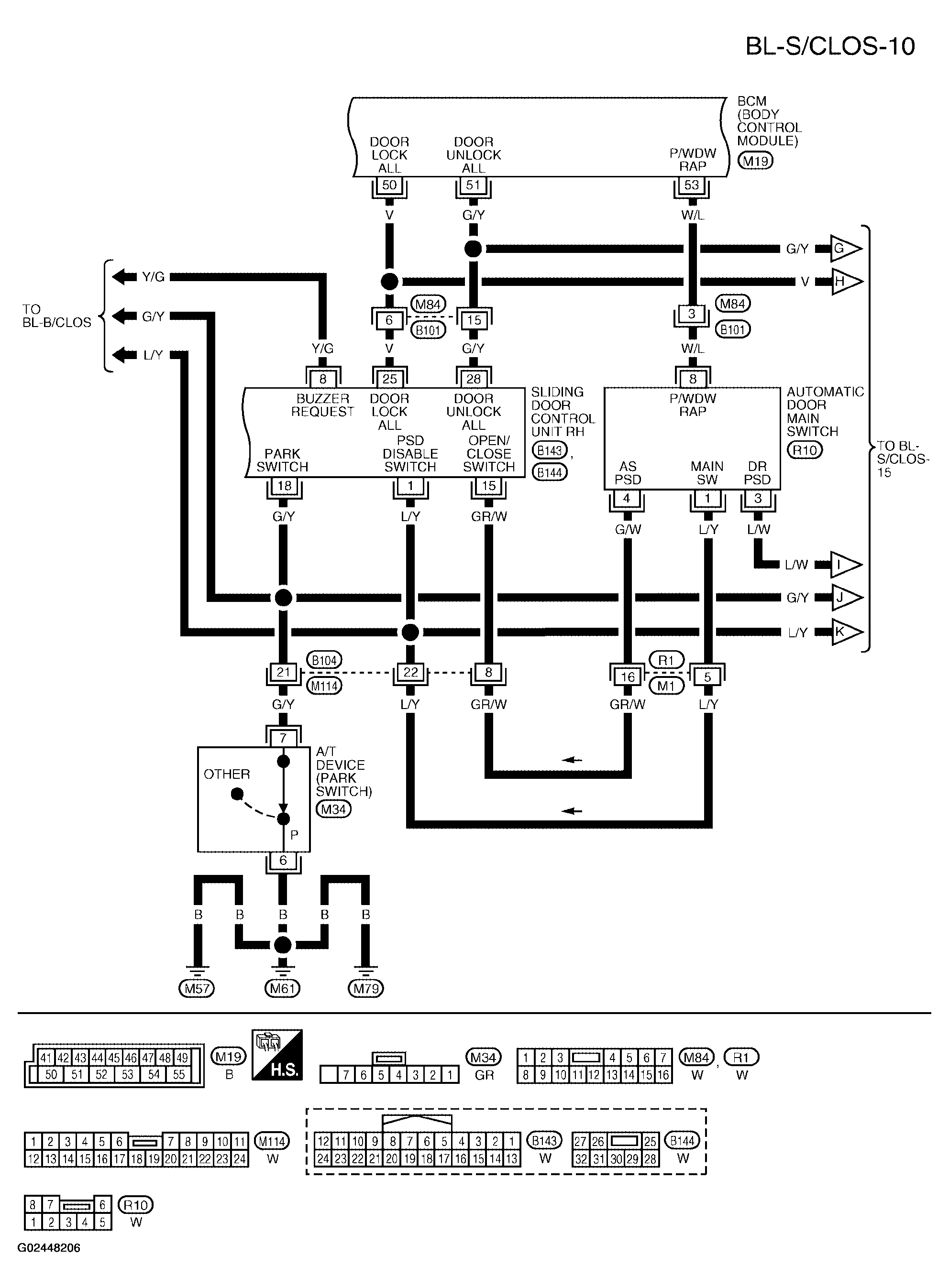

Fig 5: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-10

Courtesy of NISSAN MOTOR CO., U.S.A.

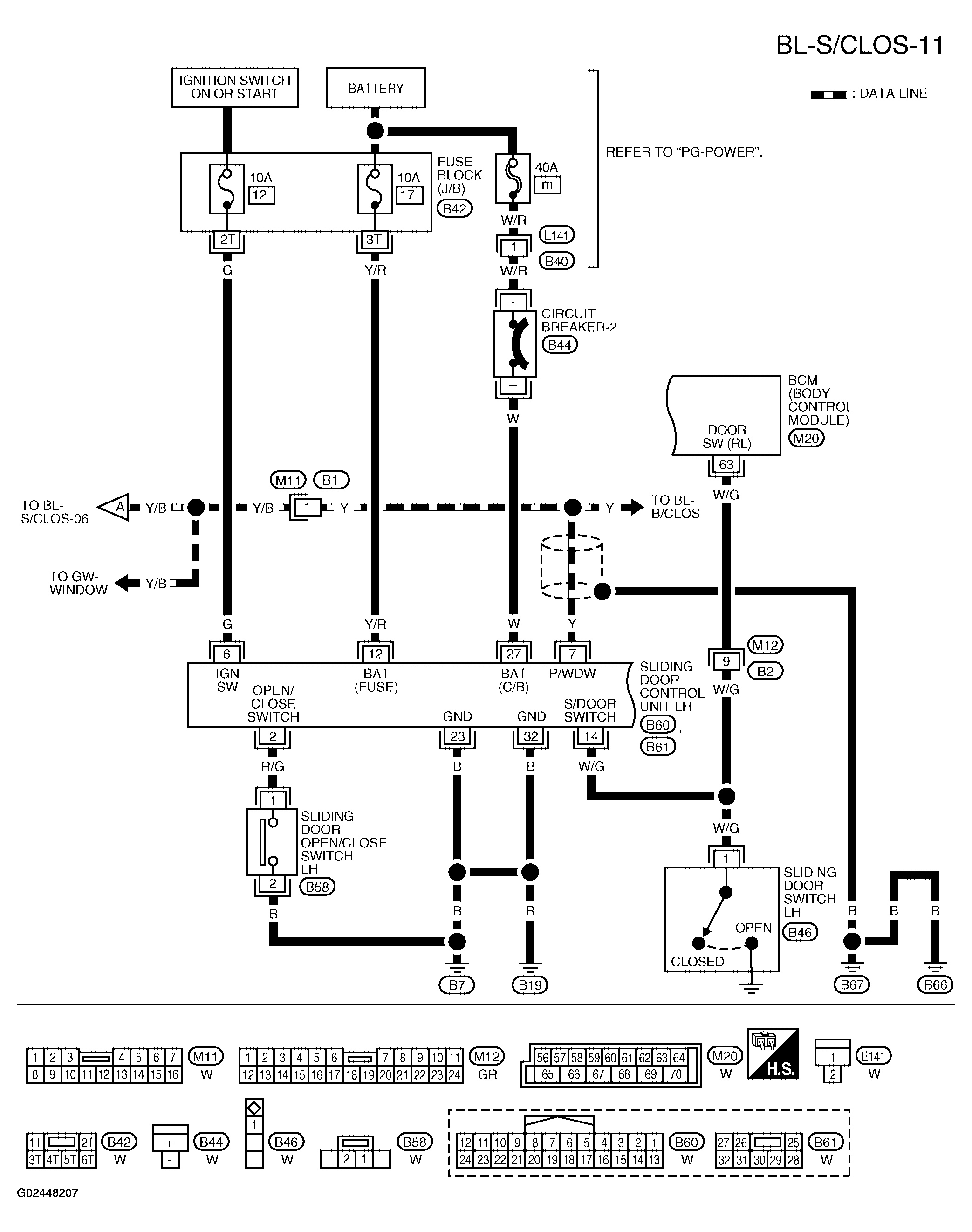

Fig 6: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-11

Courtesy of NISSAN MOTOR CO., U.S.A.

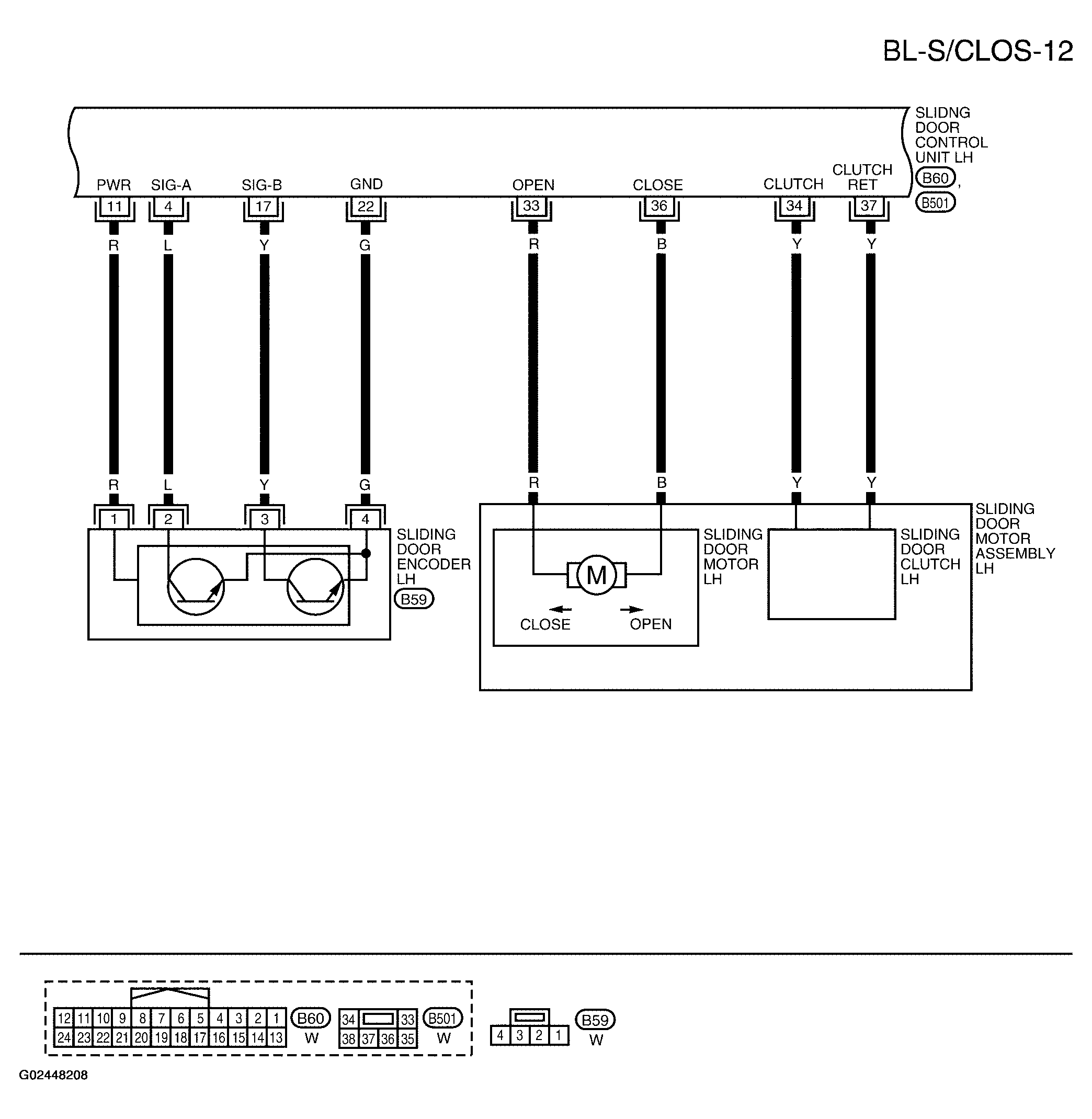

Fig 7: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-12

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 8: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-13

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-14

Courtesy of NISSAN MOTOR CO., U.S.A.

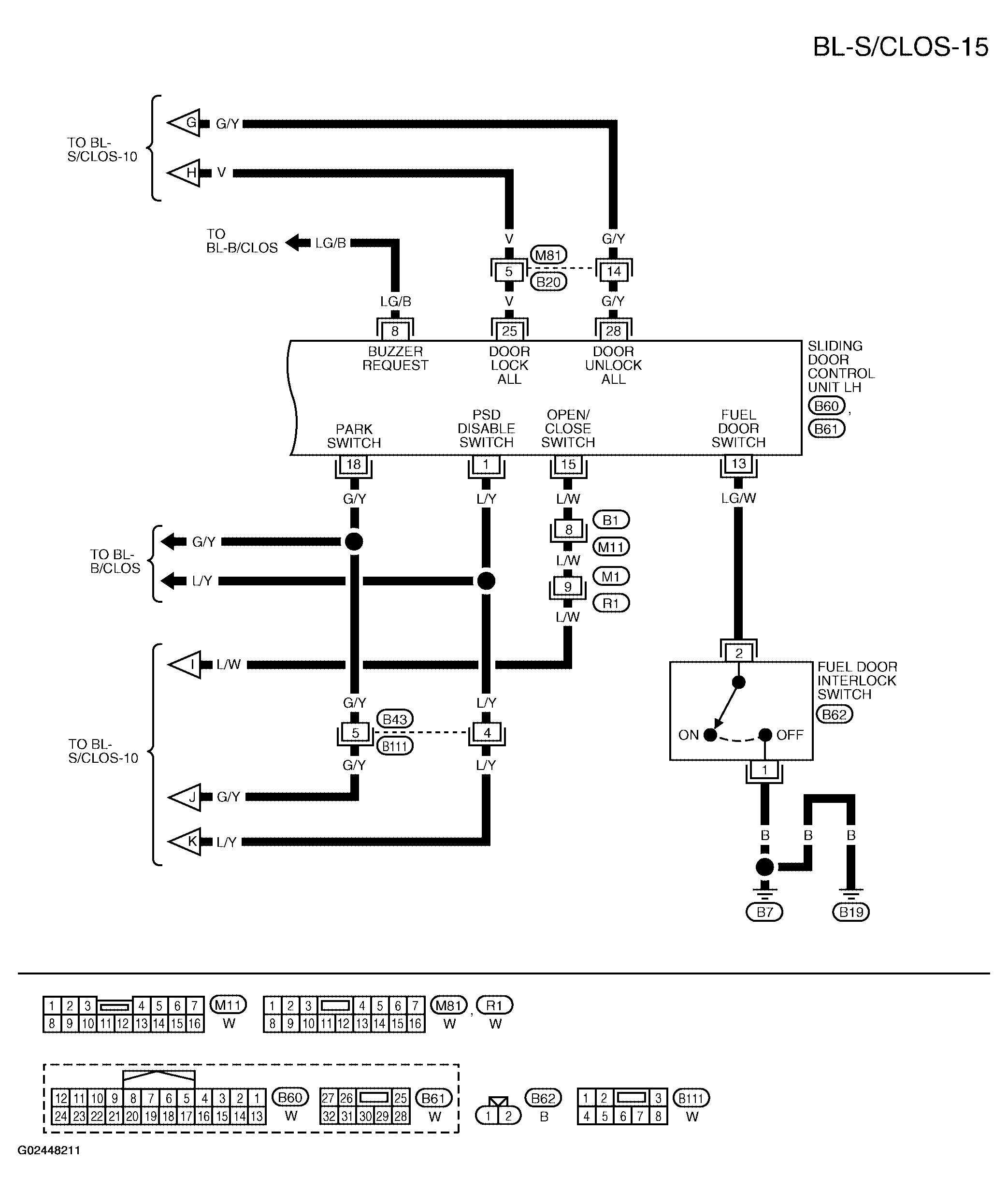

Fig 10: Wiring Diagram - Automatic Sliding Door With Right And Left Hand - BL-S/CLOS-15

Courtesy of NISSAN MOTOR CO., U.S.A.
