Warning Chime Active Conditions

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

The warning chime uses two types of audio warnings, a friendly chime and a warning chime. The friendly chime consists of dings lasting 0.66 seconds each immediately followed by the next ding. The warning chime consists of beeps lasting 0.33 seconds with a pause of 0.33 seconds between each beep.

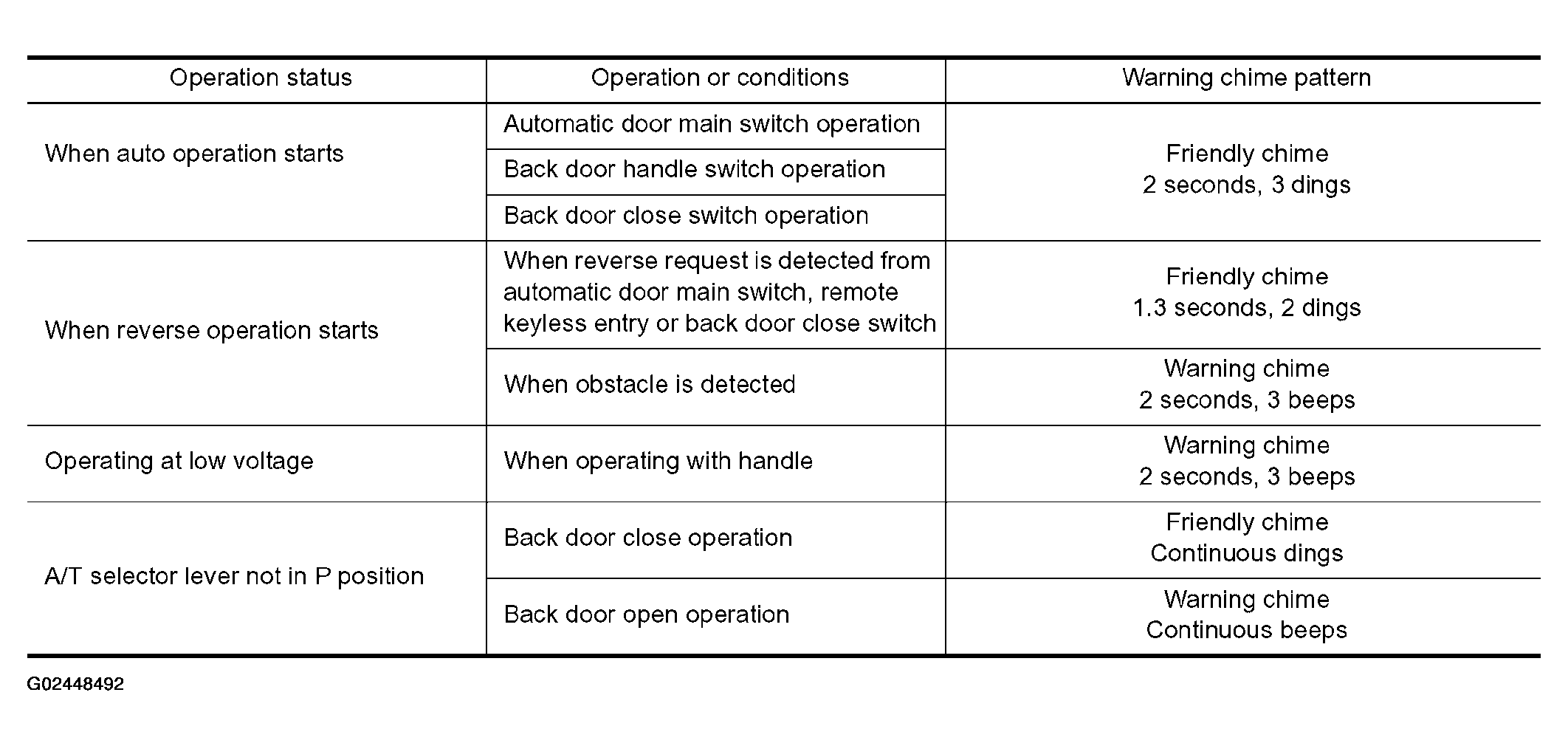

Fig 1: Warning Chime Active Condition Description Chart
G02448492Courtesy of NISSAN MOTOR CO., U.S.A.
