BACK DOOR WARNING CHIME CIRCUIT INSPECTION
1. Disconnect back door warning chime and back door control unit.
2. Check voltage between back door warning chime connector D514 terminal 1 and back door control unit connector B55 terminal 6.

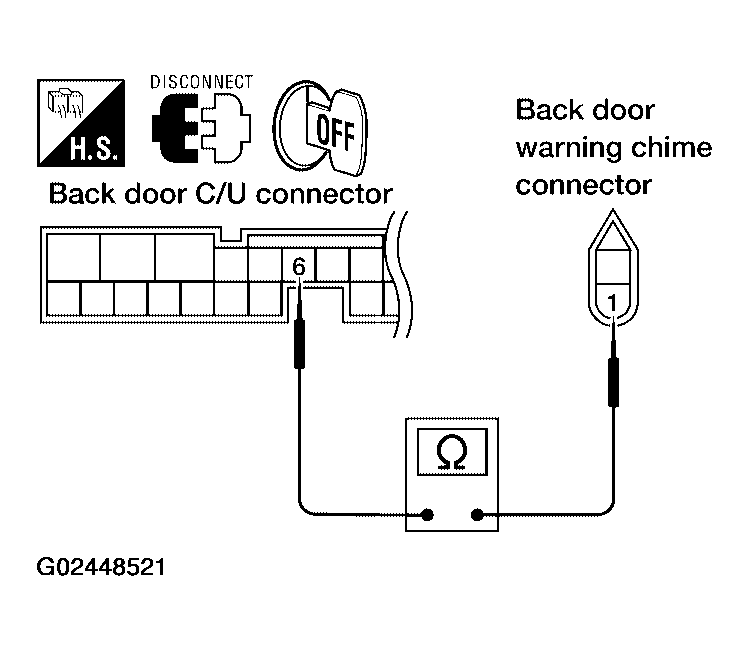

  Fig 1: Checking Voltage Between Back Door Warning Chime Connector D514 Terminal 1 & Back Door Control Unit Connector B55 Terminal 6
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - 1 (P/L) - 6 (P/L): Continuity should exist.
OK or NG
- OK: GO TO 2.
- NG: Repair or replace harness.
WARNING CHIME CIRCUIT INSPECTION
Check voltage between warning chime connector D514 terminal 2 and ground.

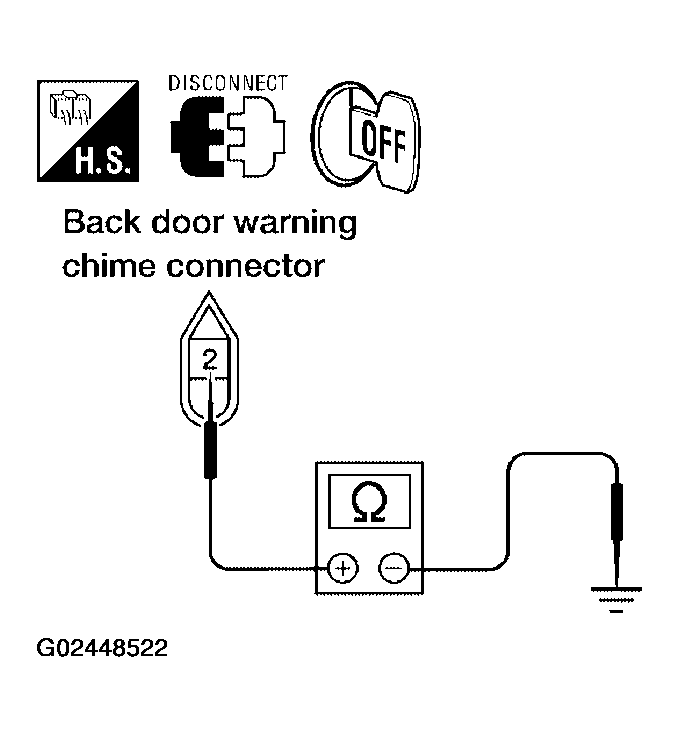

Fig 2: Checking Voltage Between Warning Chime Connector D514 Terminal 2 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
- 2 (G/R) - Ground: Continuity should exist.
OK or NG
- OK: Replace warning chime.
- NG: Repair or replace harness.
