Third Row: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Retract the seat into the cargo floor position.
  2. Remove the hinge bolts from the seat assembly.
  3. Remove the seat assembly.

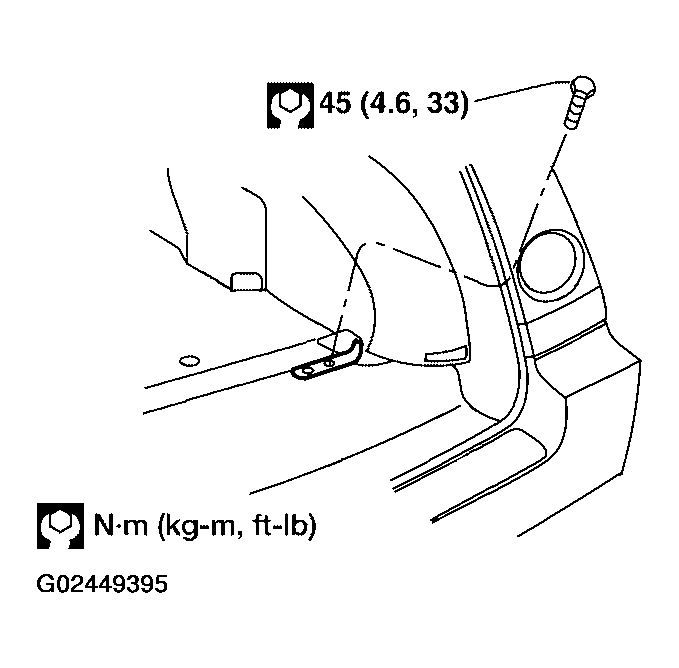

    Fig 1: Removing Hinge Bolts From Third Row Seat Assembly
    G02449395Courtesy of NISSAN MOTOR CO., U.S.A.
