Second Row: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lift handle and tilt seat forward.
  2. Remove seat base trim cover.
  3. Remove seat anchor bolts and seat assembly.
  4. Remove seat striker covers and seat strikers.

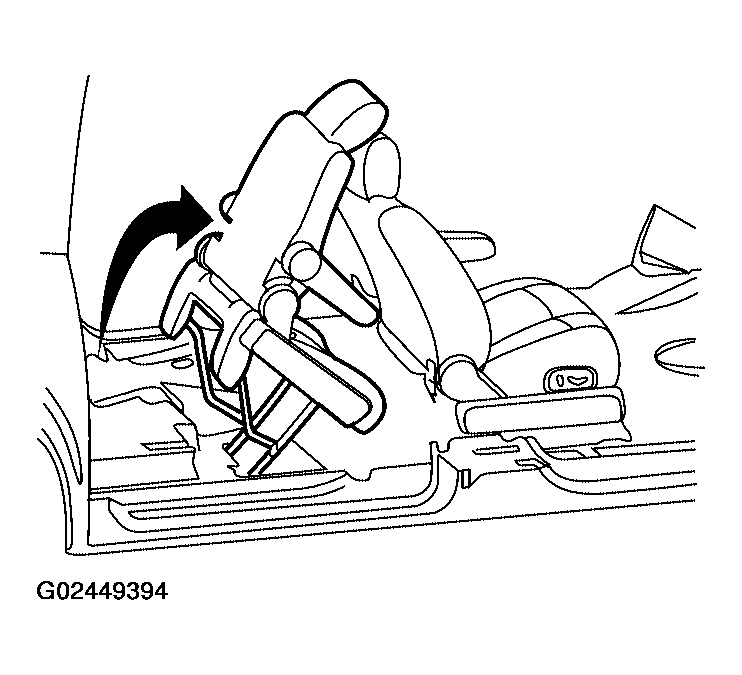

    Fig 1: Removing Seat Striker Covers & Seat Strikers
    G02449394Courtesy of NISSAN MOTOR CO., U.S.A.
