Seatback Trim And Pad

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Removal of front side air bag module should only be done to allow deployment of front side air bag module prior to disposal of seatback assembly.

NOTE: Only complete seatback assemblies can be replaced on vehicles equipped with side air bags.

NOTE: Be sure to set the front/rear cushion lifter to the top position.

Remove the seatback finisher from the back of the seatback.
1. Bend both top corners inward (one at a time) to release the top hooks.
2. Shift the seatback finisher to the Left and Right to release the middle hooks.
3. Separate the trim clips from the seatback frame to remove the seatback finisher.

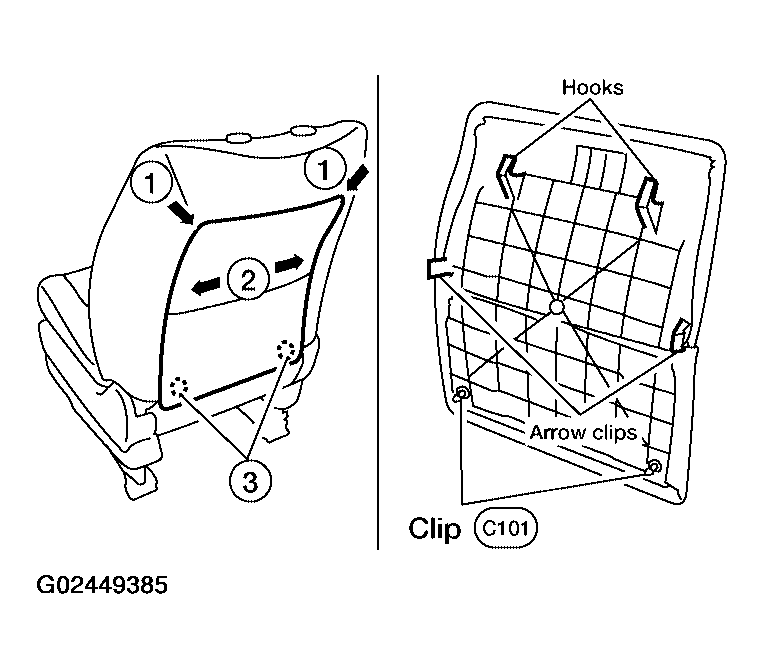

Fig 1: Removing Seatback Finisher From Back Of Seatback
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the seatback board from the back of the seatback.

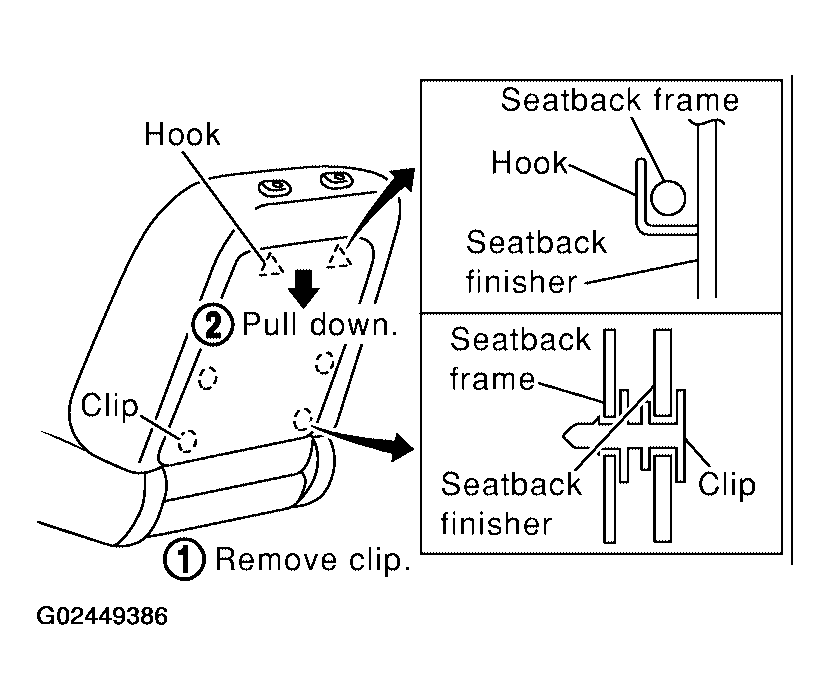

Fig 2: Removing Seatback Board From Back Of Seatback
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the retainer.

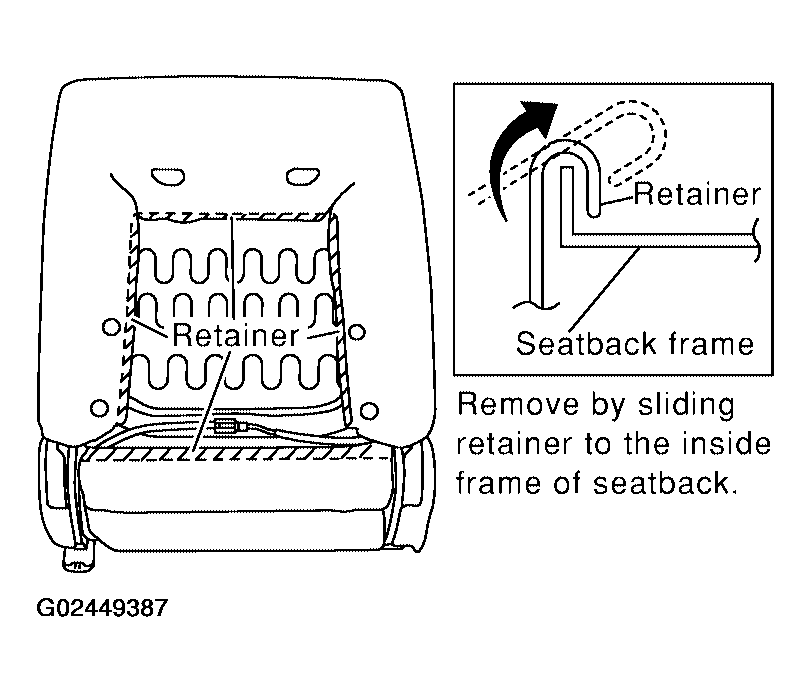

Fig 3: Removing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the headrest.
NOTE: The spring clip on the RH headrest holder must be released to remove the headrest from the seat back.

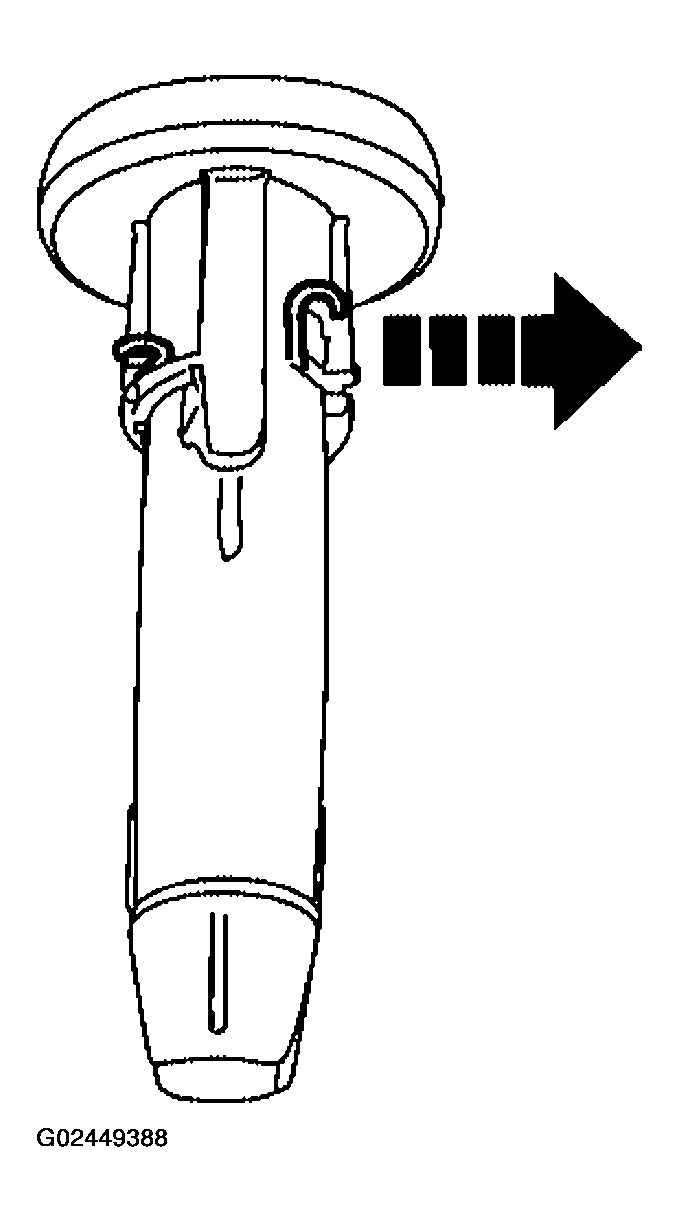

Fig 4: Releasing Spring Clip On RH Headrest Holder
Courtesy of NISSAN MOTOR CO., U.S.A.
From inside of the seatback, squeeze the headrest holder tabs at the base of the stay pipe and pull the up to remove.
NOTE: Before installing the headrest holder, check its orientation (front/rear and right/left).

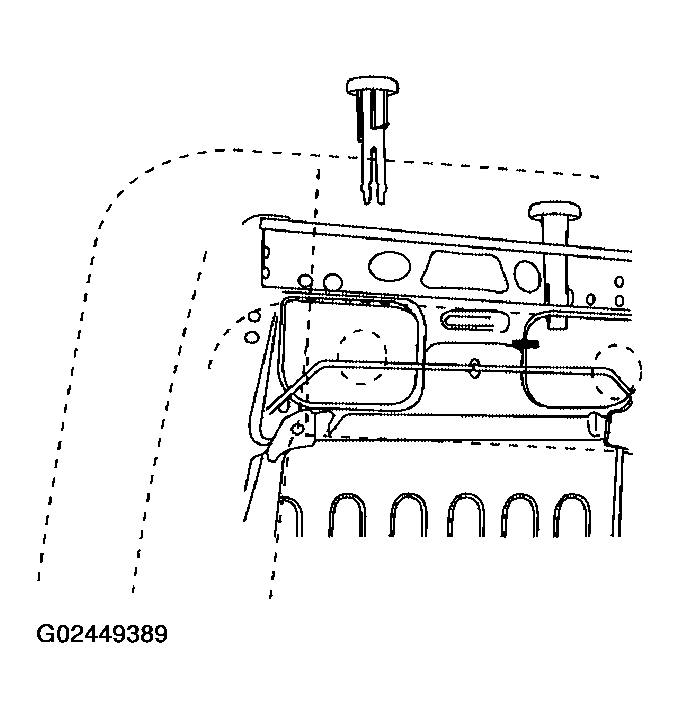

Fig 5: Removing Headrest Holder Tabs
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove the snap ring and the lumbar support lever knob.

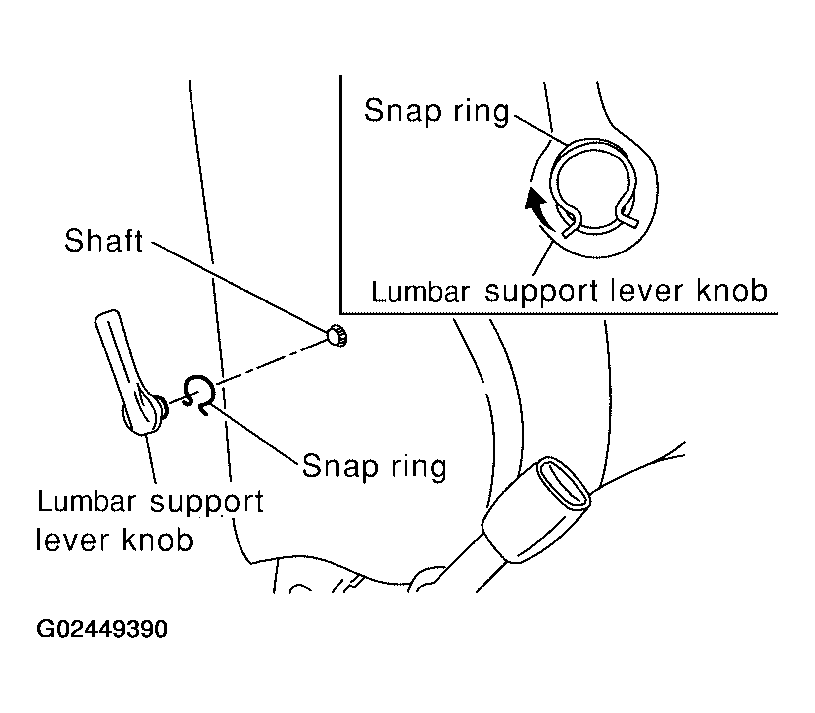

Fig 6: Removing Snap Ring & Lumbar Support Lever Knob
Courtesy of NISSAN MOTOR CO., U.S.A.
Disconnect the seatback heater harness. Remove the seatback trim and pad assembly. Remove the hog ring to separate the seatback trim from the pad and the heater unit.
