Wiring Diagram - AUT/DP -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

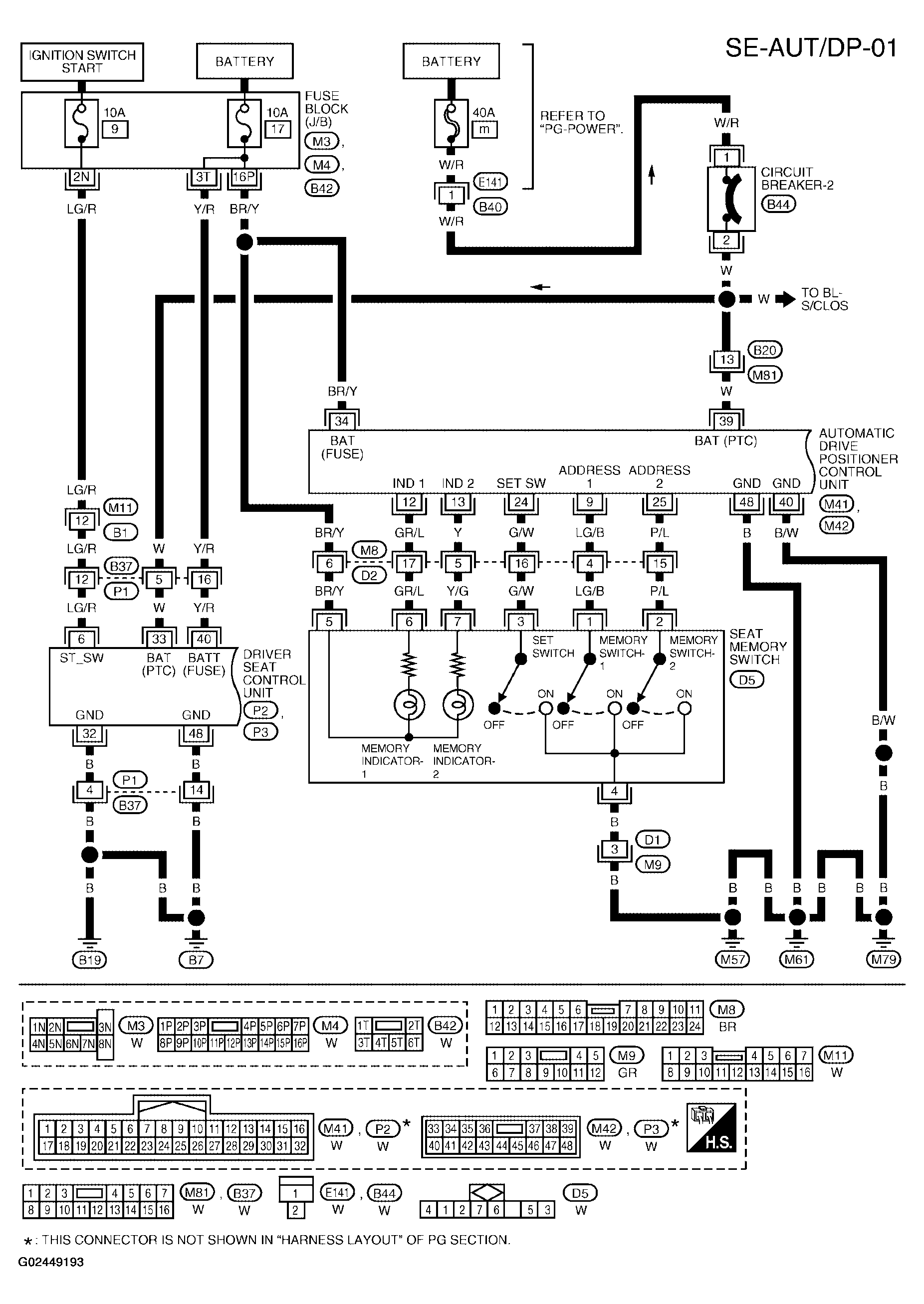

Fig 1: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

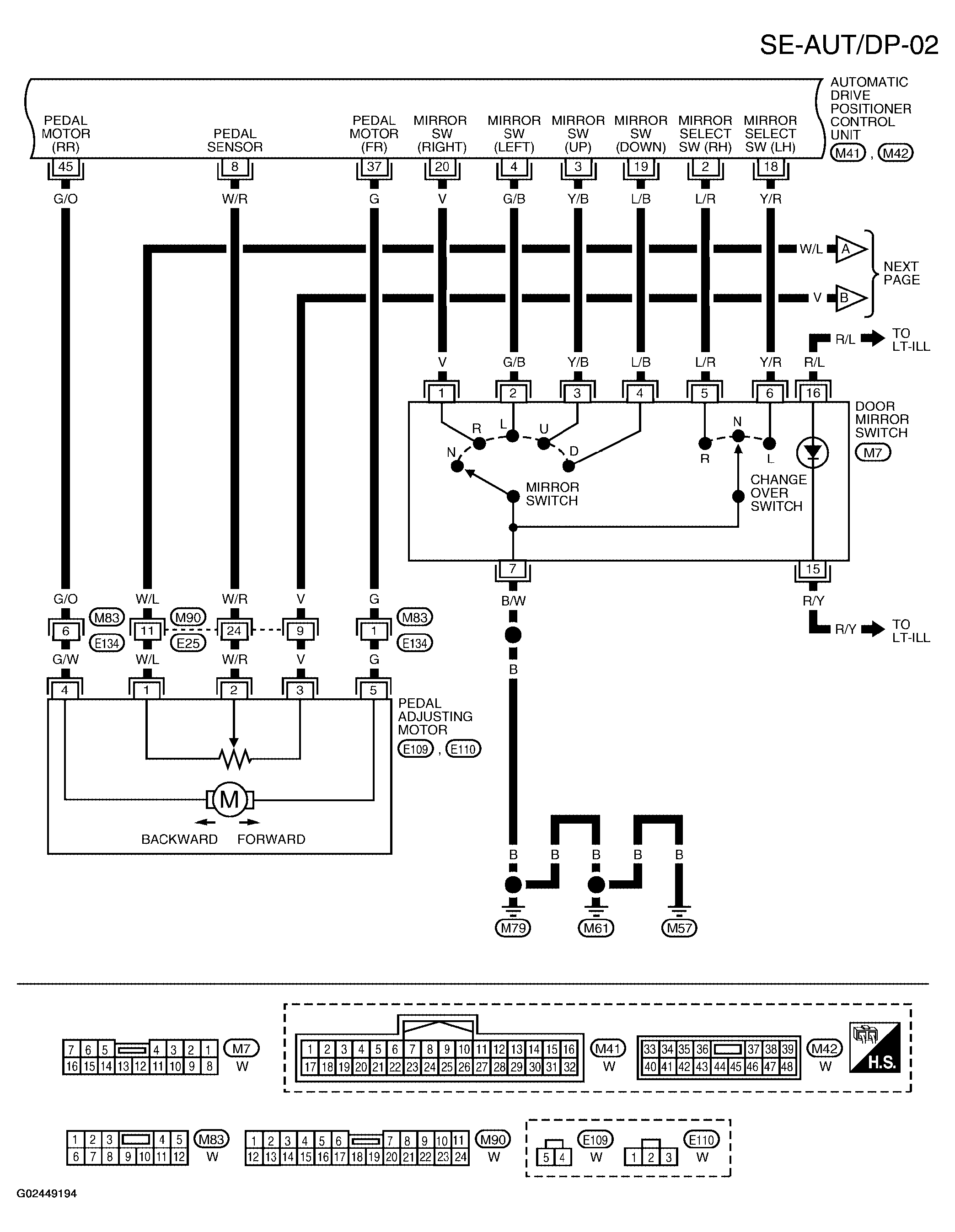

Fig 2: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

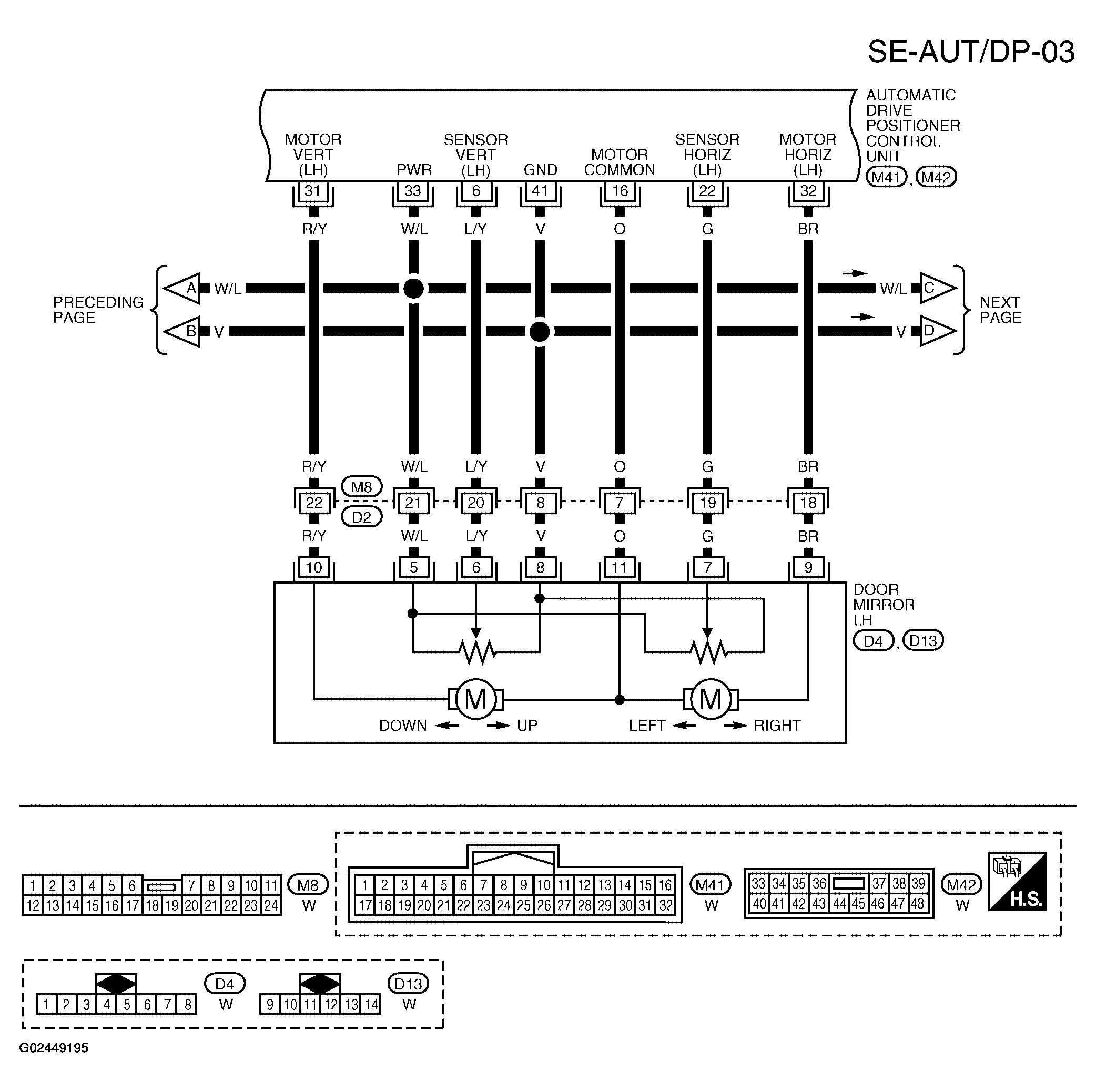

Fig 3: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

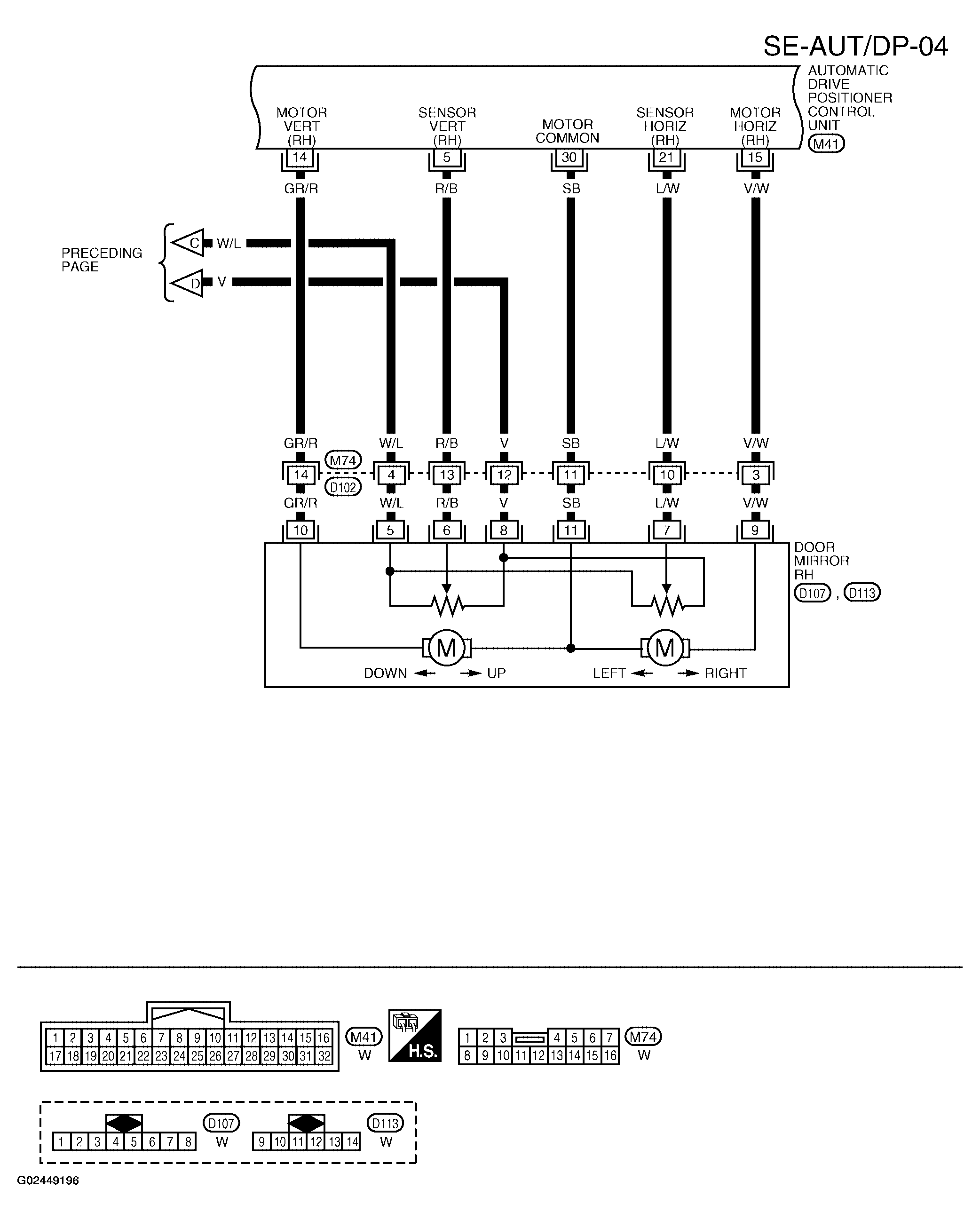

Fig 4: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-04)

Courtesy of NISSAN MOTOR CO., U.S.A.

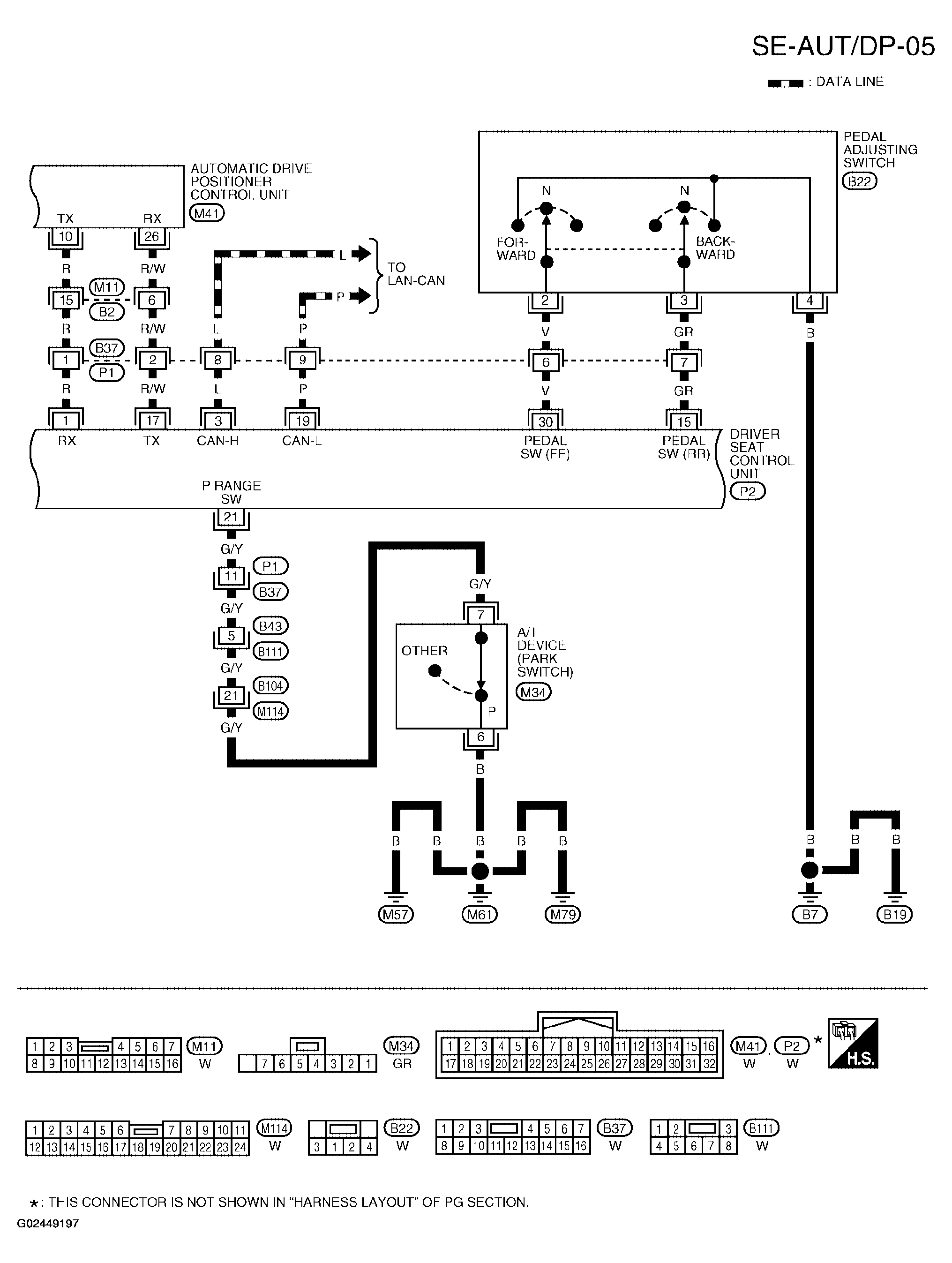

Fig 5: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-05)

Courtesy of NISSAN MOTOR CO., U.S.A.

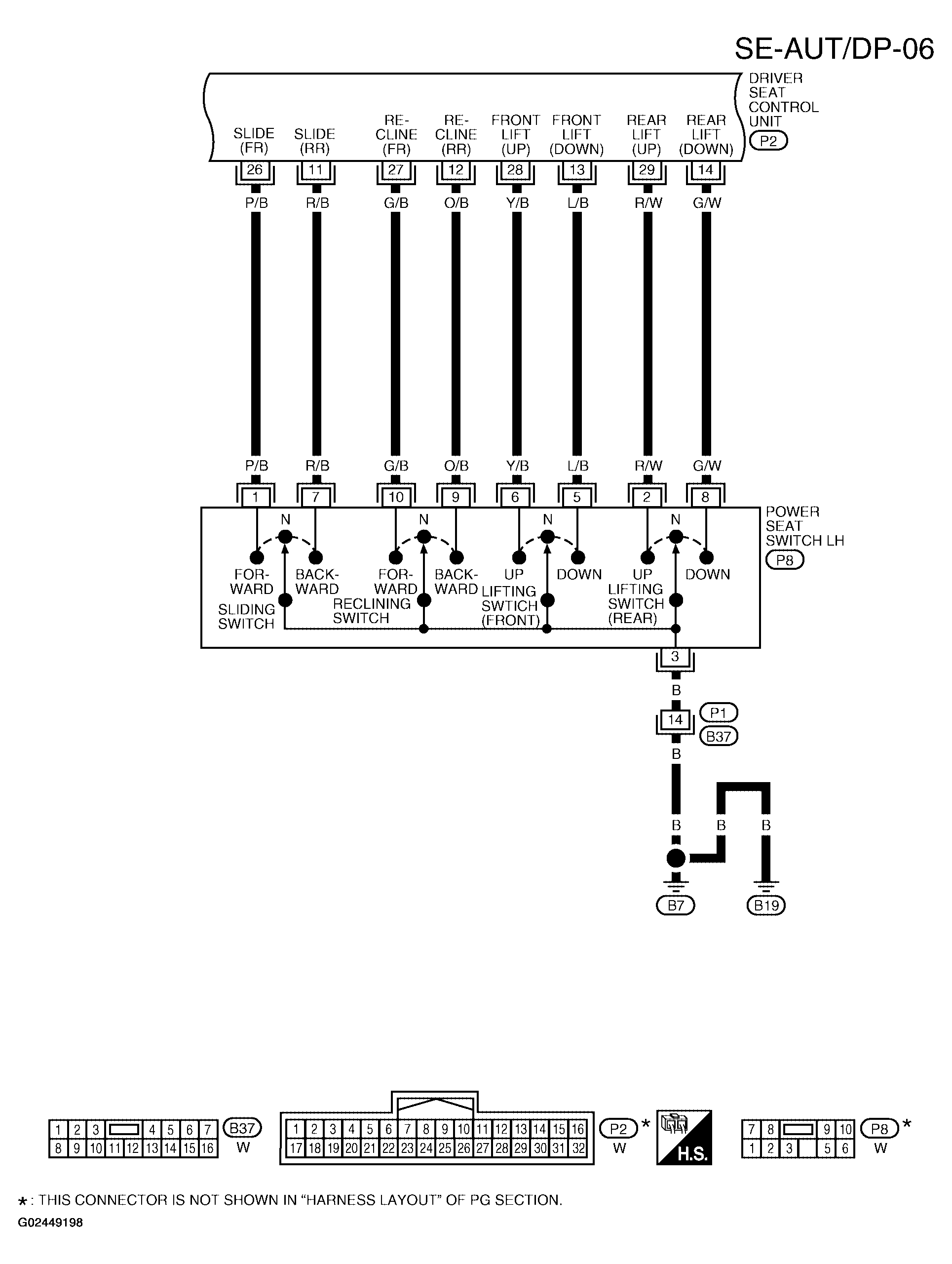

Fig 6: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-06)

Courtesy of NISSAN MOTOR CO., U.S.A.

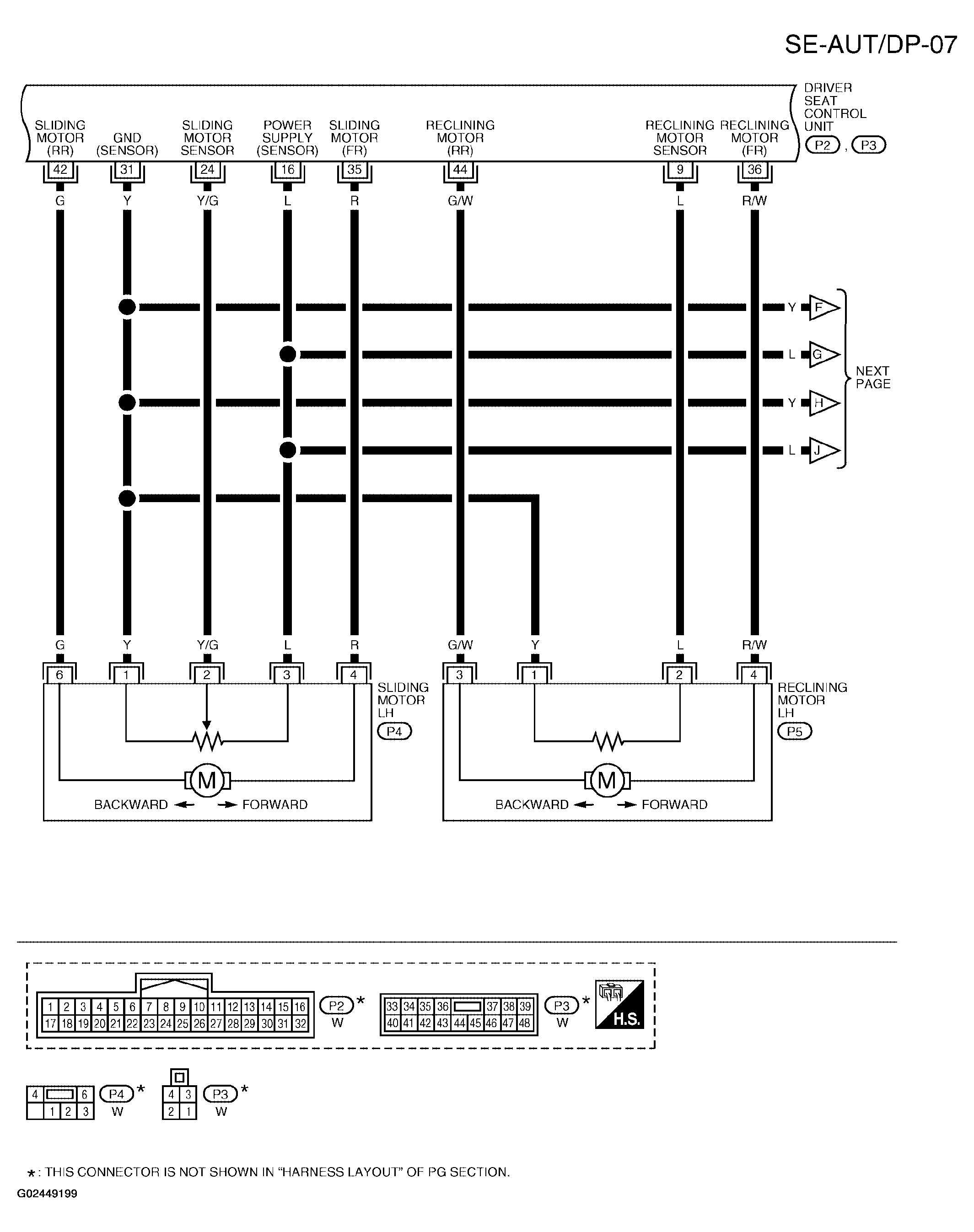

Fig 7: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-07)

Courtesy of NISSAN MOTOR CO., U.S.A.

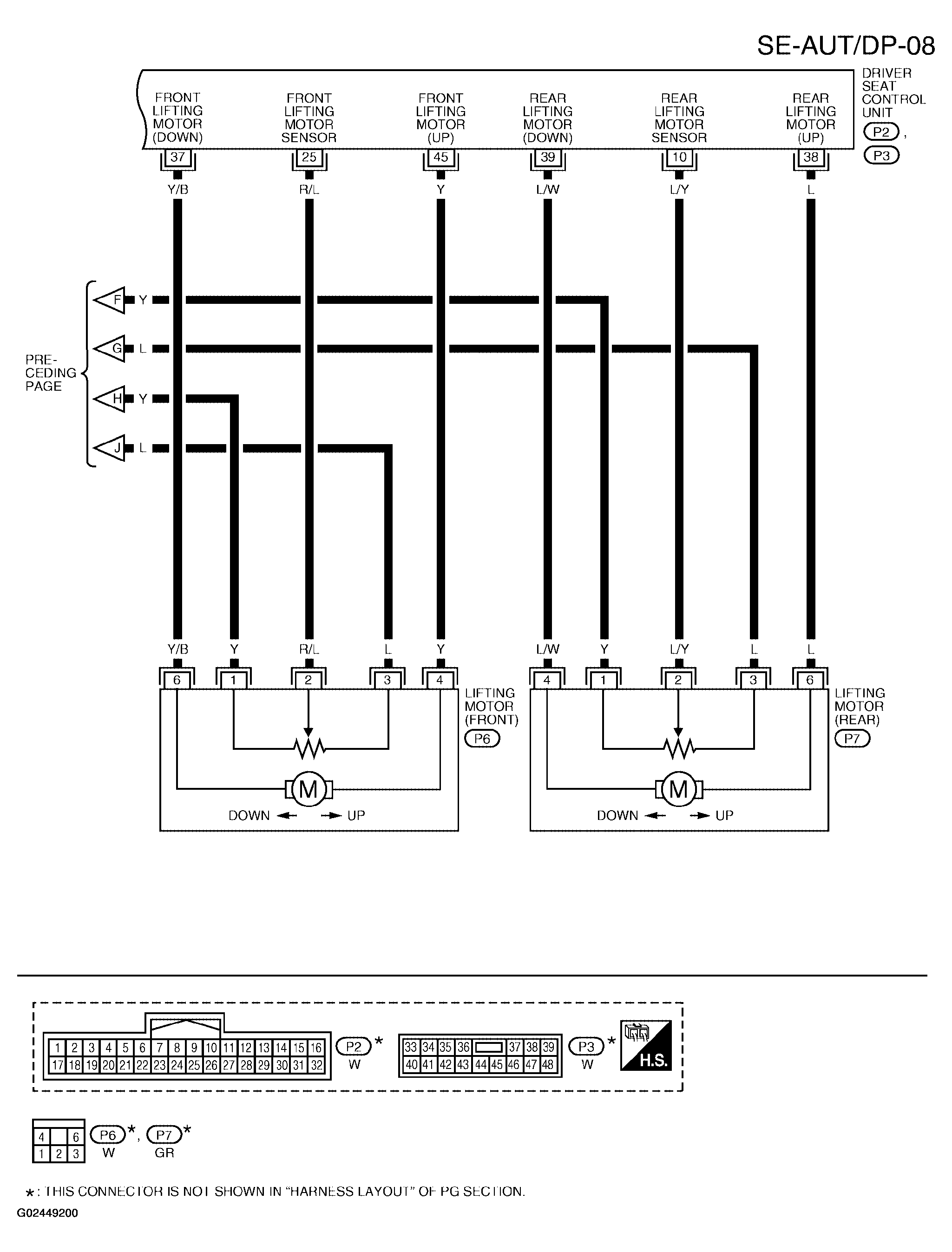

Fig 8: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-08)

Courtesy of NISSAN MOTOR CO., U.S.A.

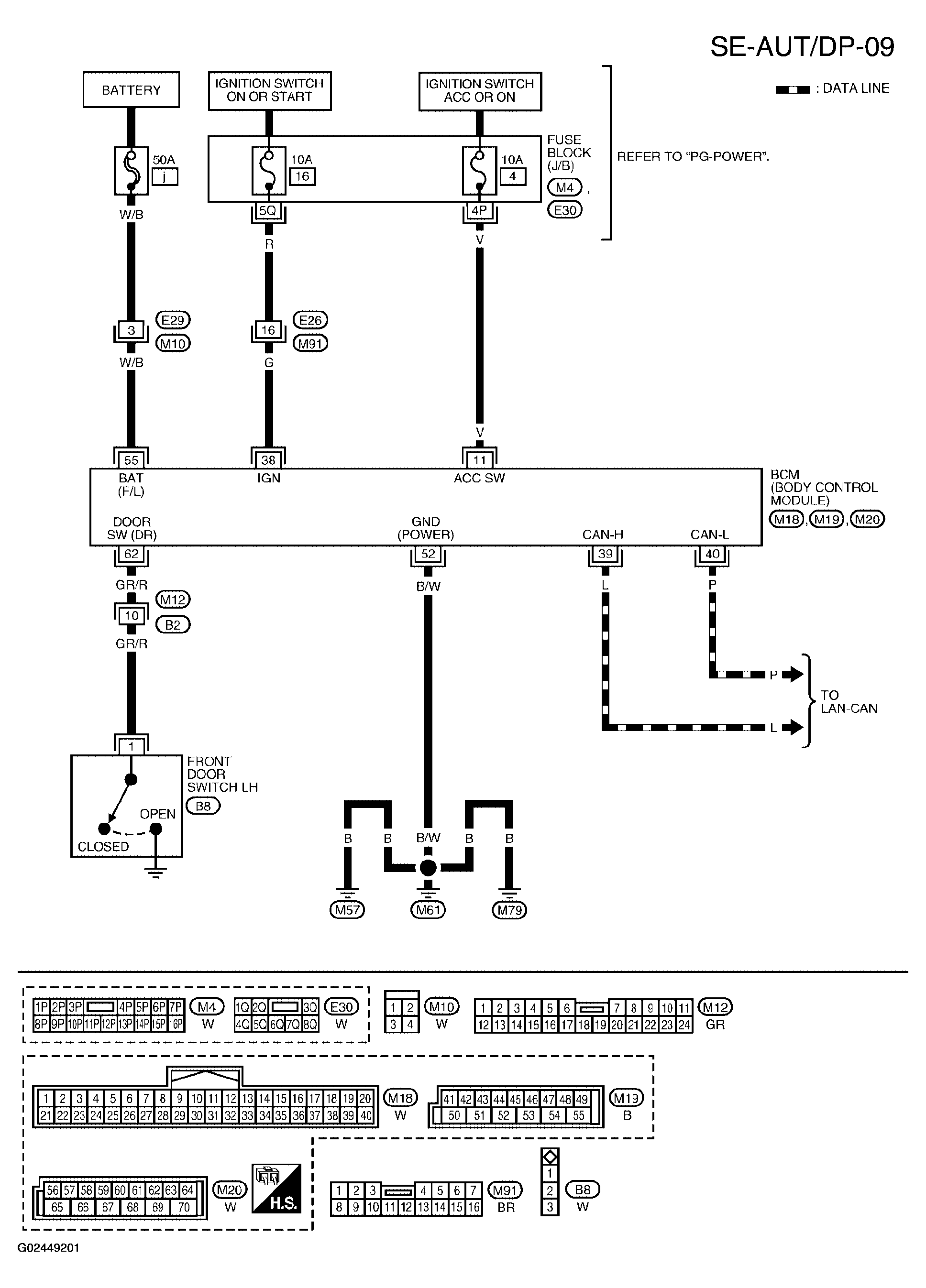

Fig 9: Wiring Diagram - Automatic Drive Positioner (SE-AUT/DP-09)

Courtesy of NISSAN MOTOR CO., U.S.A.
