Lifting Motor (Rear) Circuit Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK REAR SEAT LIFTING MECHANISM

    Check the following.

    • Operation malfunction caused by lifter mechanism deformation or pinched harness or other foreign materials
    • Operation malfunction caused by foreign materials adhered to the lifting motor (rear) or lead screws
    • Operation malfunction and interference with other parts by poor installation

    OK or NG

    • OK : GO TO 2.
    • NG : Repair the malfunctioning part and check again.
  2. CHECK FUNCTION

    With CONSULT-II

    Check operation with "SEAT LIFTER RR" in ACTIVE TEST.

    CONSULT-II ACTIVE TEST ITEM - SEAT LIFTER RR

    Test item Description
    SEAT LIFTER RR The lifting motor (rear) is activated by receiving the drive signal.

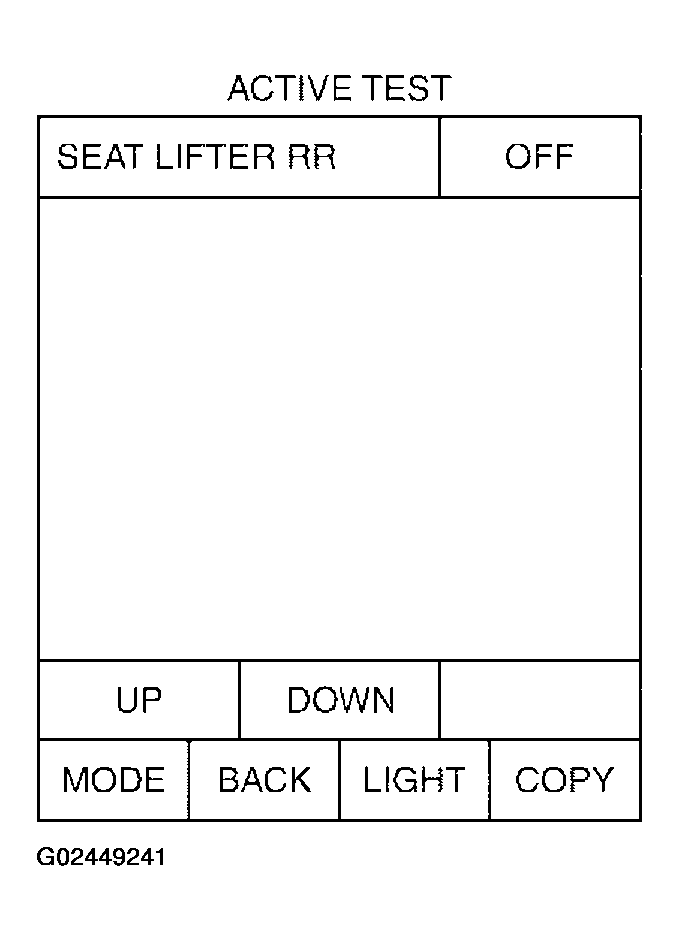

    Fig 1: CONSULT-II Display - ACTIVE TEST
    G02449241Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    GO TO 3.

    OK or NG

    • OK : Lifting motor (rear) circuit is OK.
    • NG : GO TO 3.
  3. CHECK LIFTING MOTOR (REAR) CIRCUIT HARNESS CONTINUITY
    1. Turn ignition switch OFF.
    2. Disconnect driver seat control unit and lifting motor (rear).
    3. Check continuity between driver seat control unit connector P3 terminals 38, 39 and lifting motor (rear) connector P7 terminals 4, 6.

      38 (L) - 6 (L) : Continuity should exist.

      39 (L/W) - 4 (L/W) : Continuity should exist.

    4. Check continuity between driver seat control unit P3 terminals 38, 39 and ground.

      38 (L) - Ground : Continuity should not exist.

      39 (L/W) - Ground : Continuity should not exist.

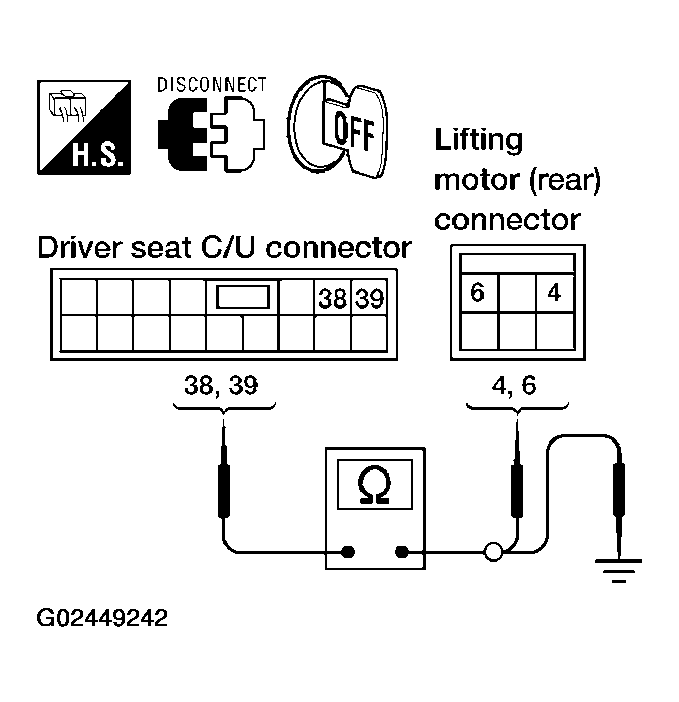

      Fig 2: Checking Continuity Between Driver Seat Control Unit P3 Connector Terminals 38, 39 And Lifting Motor (Rear) Connector P7 Terminals 4, 6 & Ground
      G02449242Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : GO TO 4.
    • NG : Repair or replace harness.
  4. CHECK DRIVER SEAT CONTROL UNIT OUTPUT SIGNAL
    1. Connect the driver seat control unit and lifting motor (rear).
    2. Check voltage between driver seat control unit connector and ground.

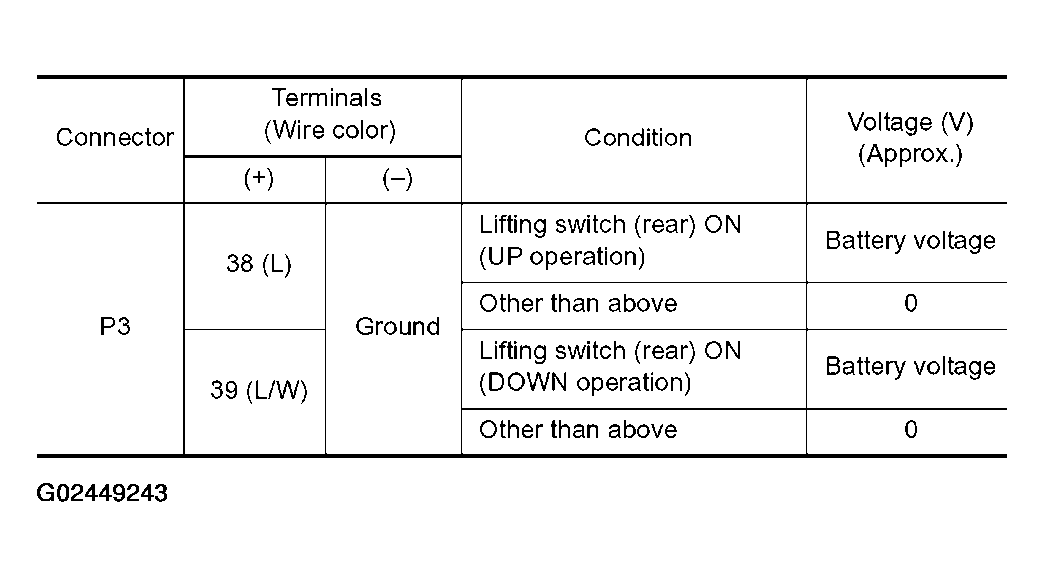

      Fig 3: Driver Seat Control Unit Connector P3 Terminal Voltage Reference Chart
      G02449243Courtesy of NISSAN MOTOR CO., U.S.A.

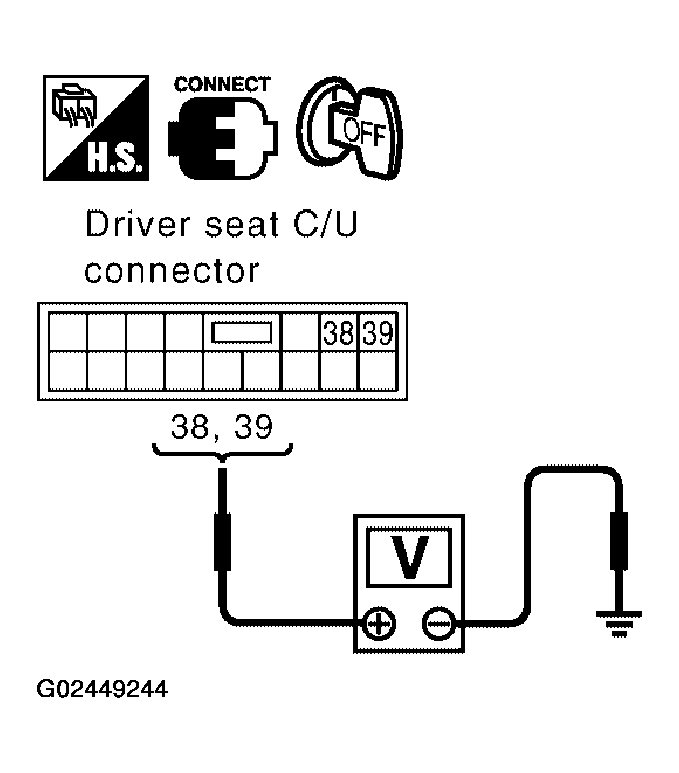

      Fig 4: Checking Voltage Between Driver Seat Control Unit Connector Terminals 38, 39 & Ground
      G02449244Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK : Replace lifting motor (rear). Refer to FRONT SEAT .
    • NG : Replace driver seat control unit. Refer to FRONT SEAT .
