Door Mirror Switch Ground Circuit Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR SWITCH GROUND CIRCUIT
Check continuity between door mirror switch connector M7 terminal 7 and ground.

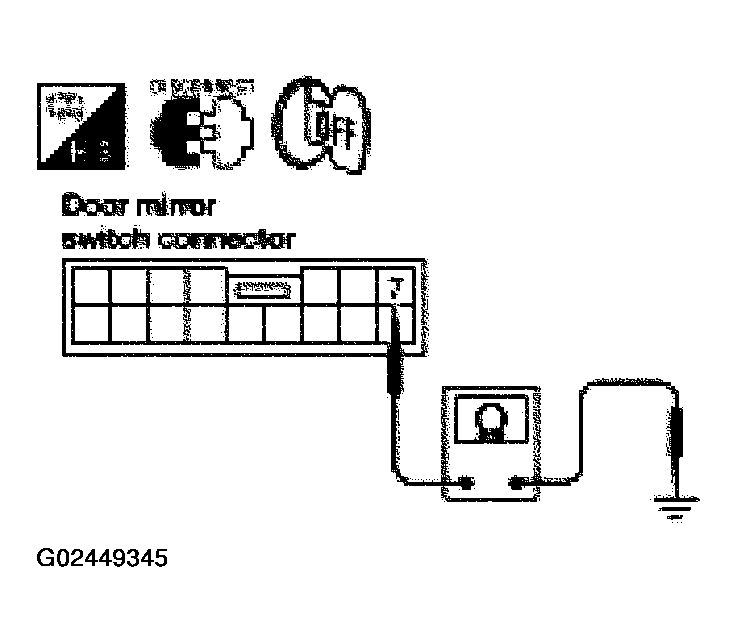

Fig 1: Checking Continuity Between Door Mirror Switch Connector M7 Terminal 7 & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

7 (B/W) - Ground : Continuity should exist.

OK or NG
- OK : GO TO 2.
- NG : Repair or replace harness.
CHECK DOOR MIRROR SWITCH (CHANGEOVER SWITCH)
Check continuity between door mirror switch as follows.

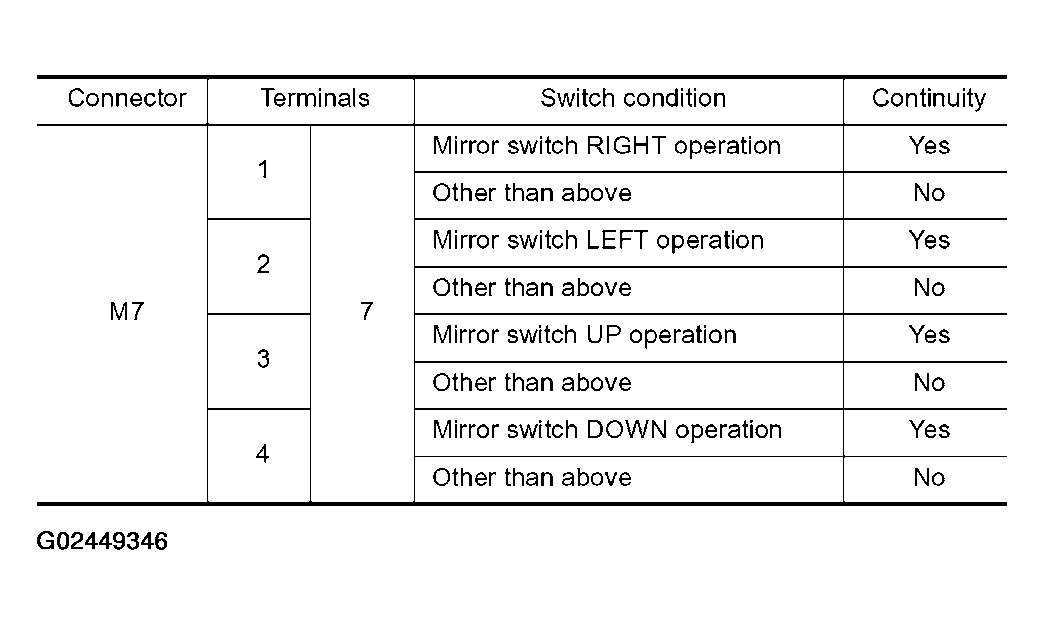

Fig 2: Door Mirror Switch Connector M7 Terminal Continuity Reference Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

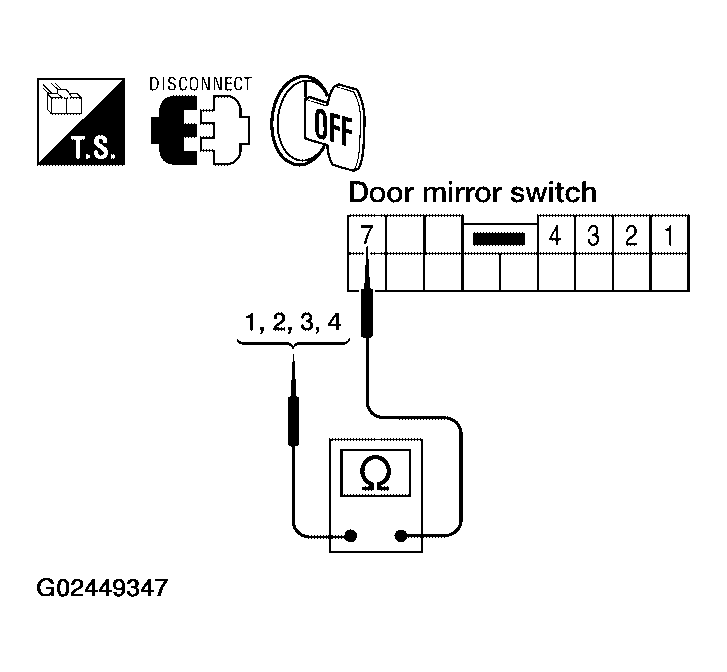

Fig 3: Checking Continuity Between Door Mirror Switch Connector Terminal 7 And Terminals 1, 2, 3 & 4
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Check the condition of the harness and the connector.
- NG : Replace door mirror switch.
