Removal And Installation Of Seat Belt Buckle: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front seat. Refer to "REMOVAL AND INSTALLATION - FRONT SEAT ".
  2. Remove the screws and seat cushion inner finisher.
  3. Remove the anchor bolt and buckle.

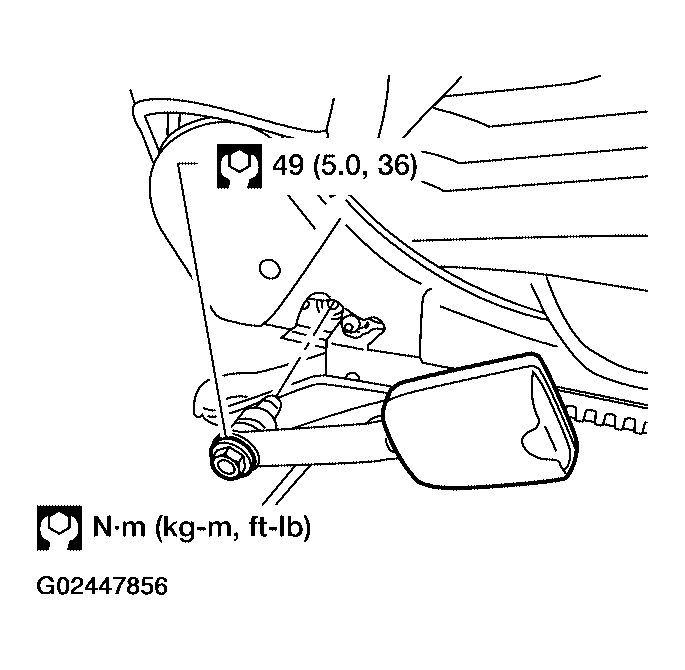

    Fig 1: Removing Anchor Bolt & Buckle - With Torque Specifications
    G02447856Courtesy of NISSAN MOTOR CO., U.S.A.
