Wiring Diagram-SRS-

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

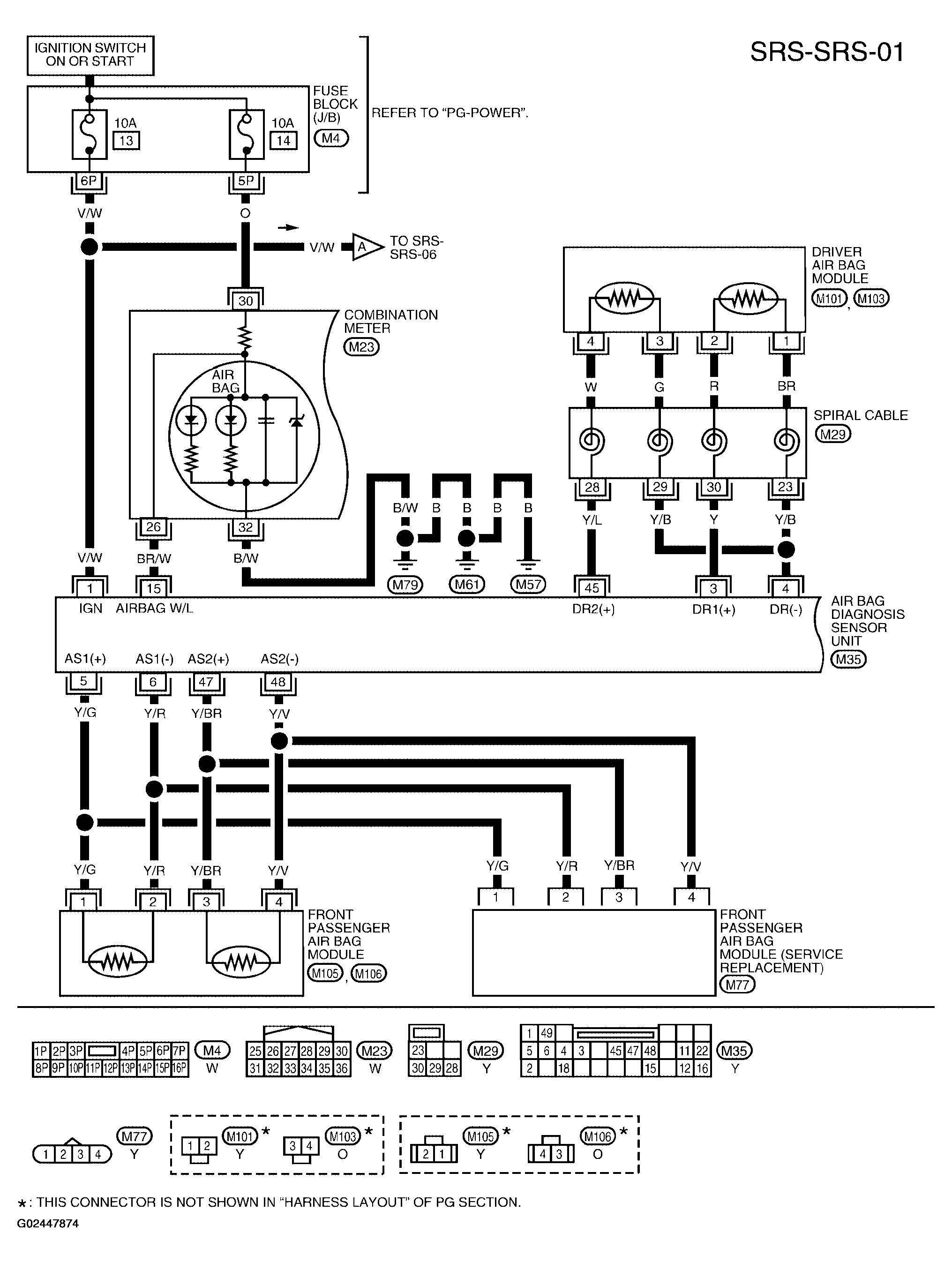

Fig 1: Wiring Diagram - (SRS-SRS-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

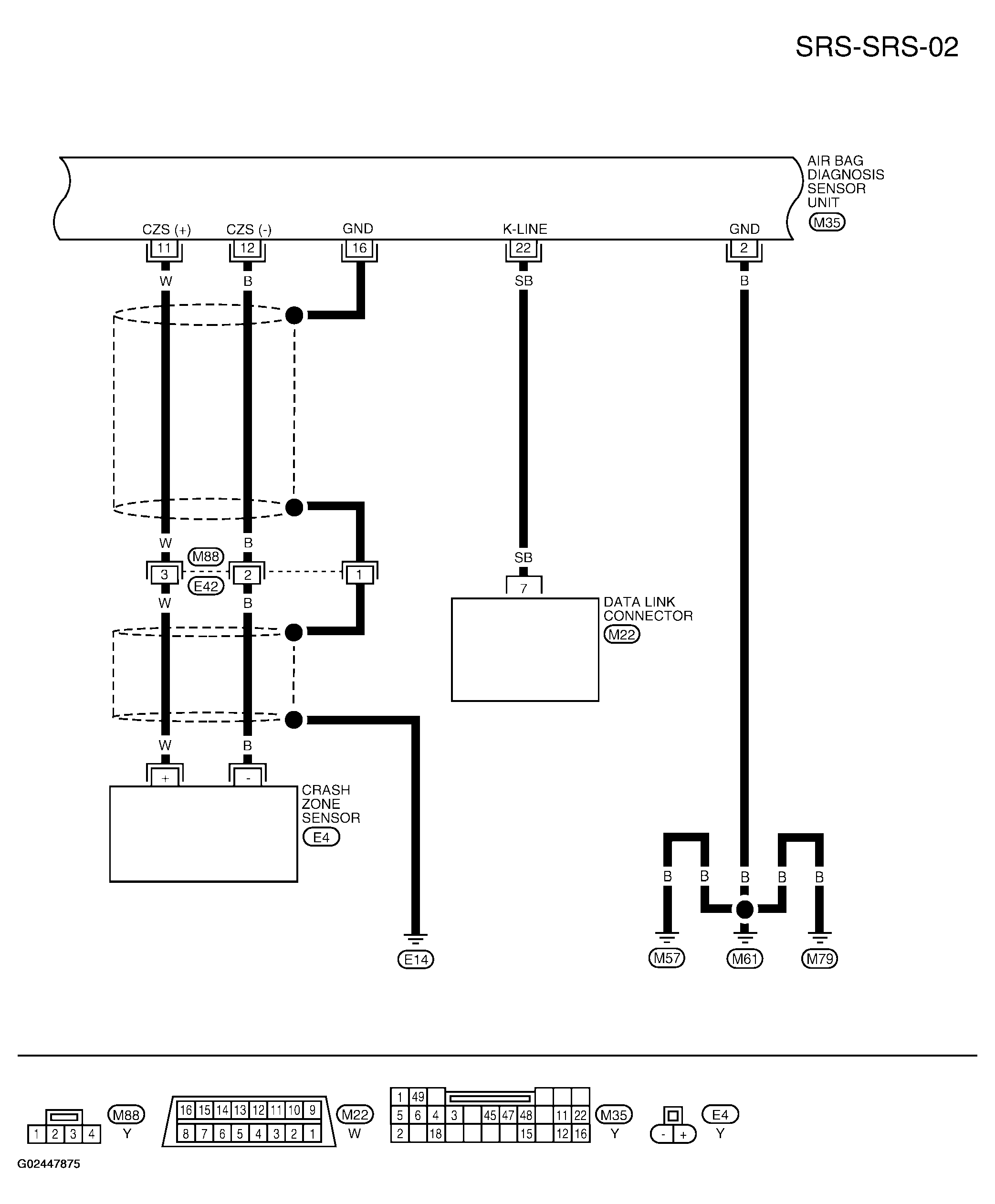

Fig 2: Wiring Diagram - (SRS-SRS-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

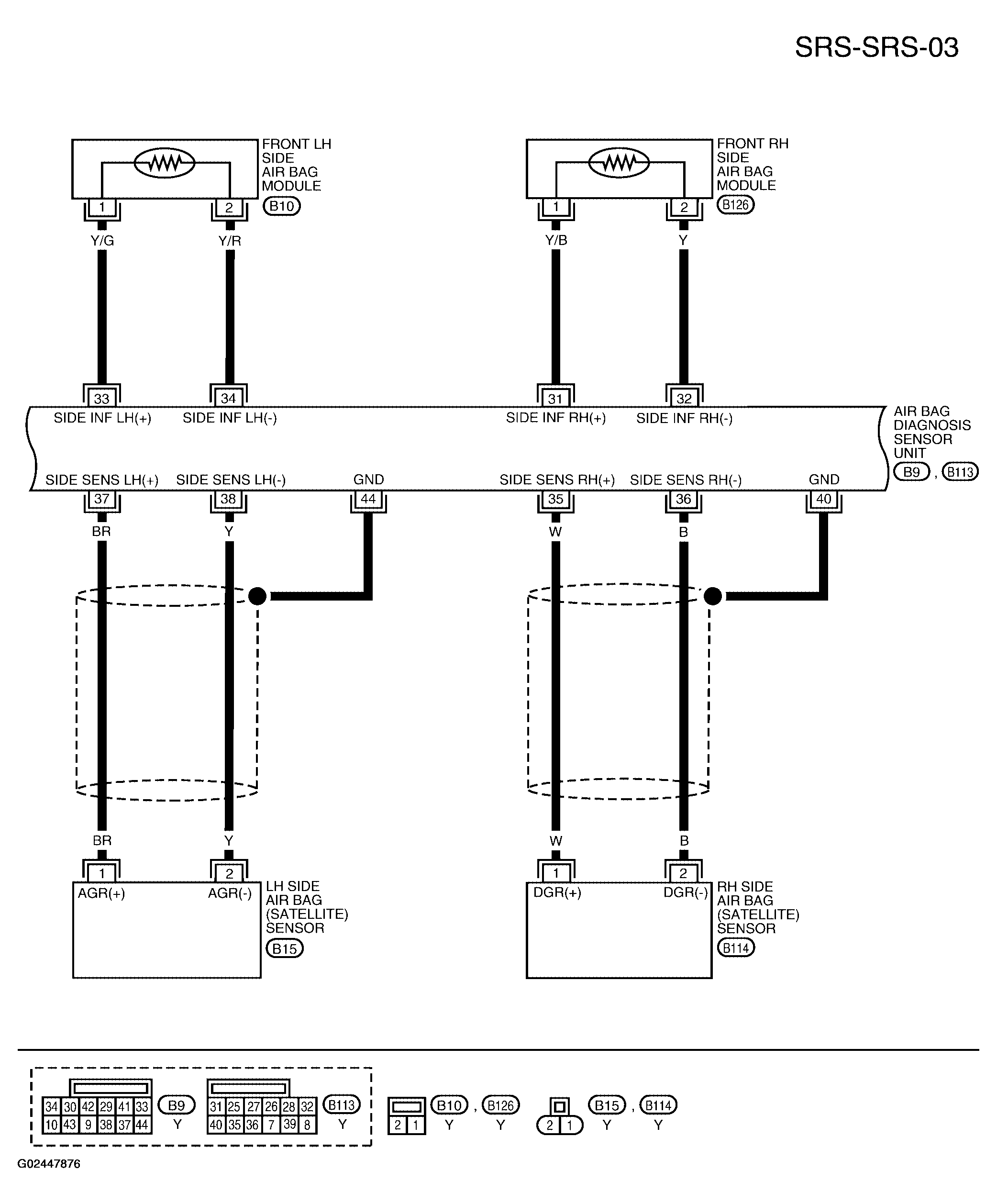

Fig 3: Wiring Diagram - (SRS-SRS-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

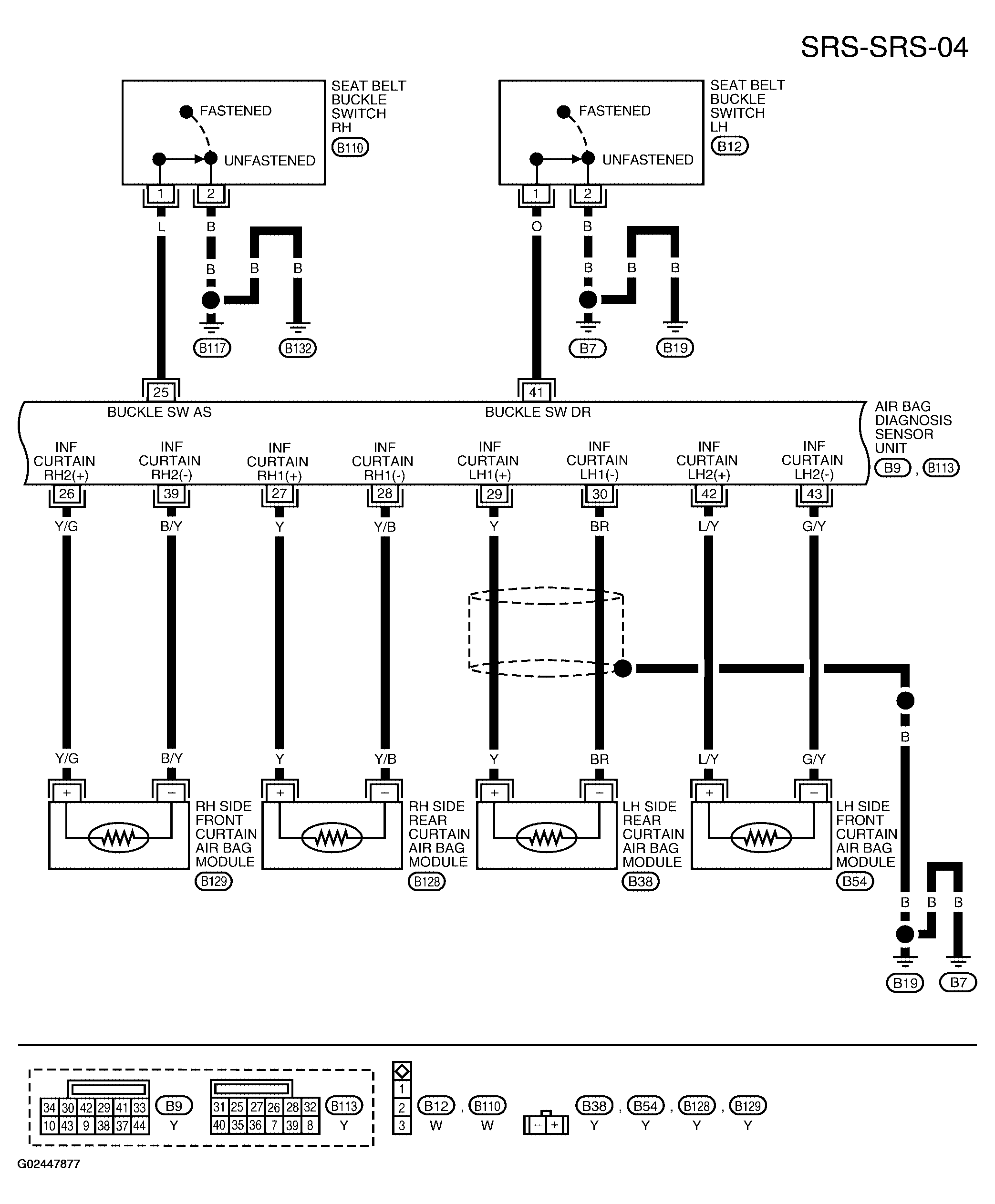

Fig 4: Wiring Diagram - (SRS-SRS-04)

Courtesy of NISSAN MOTOR CO., U.S.A.

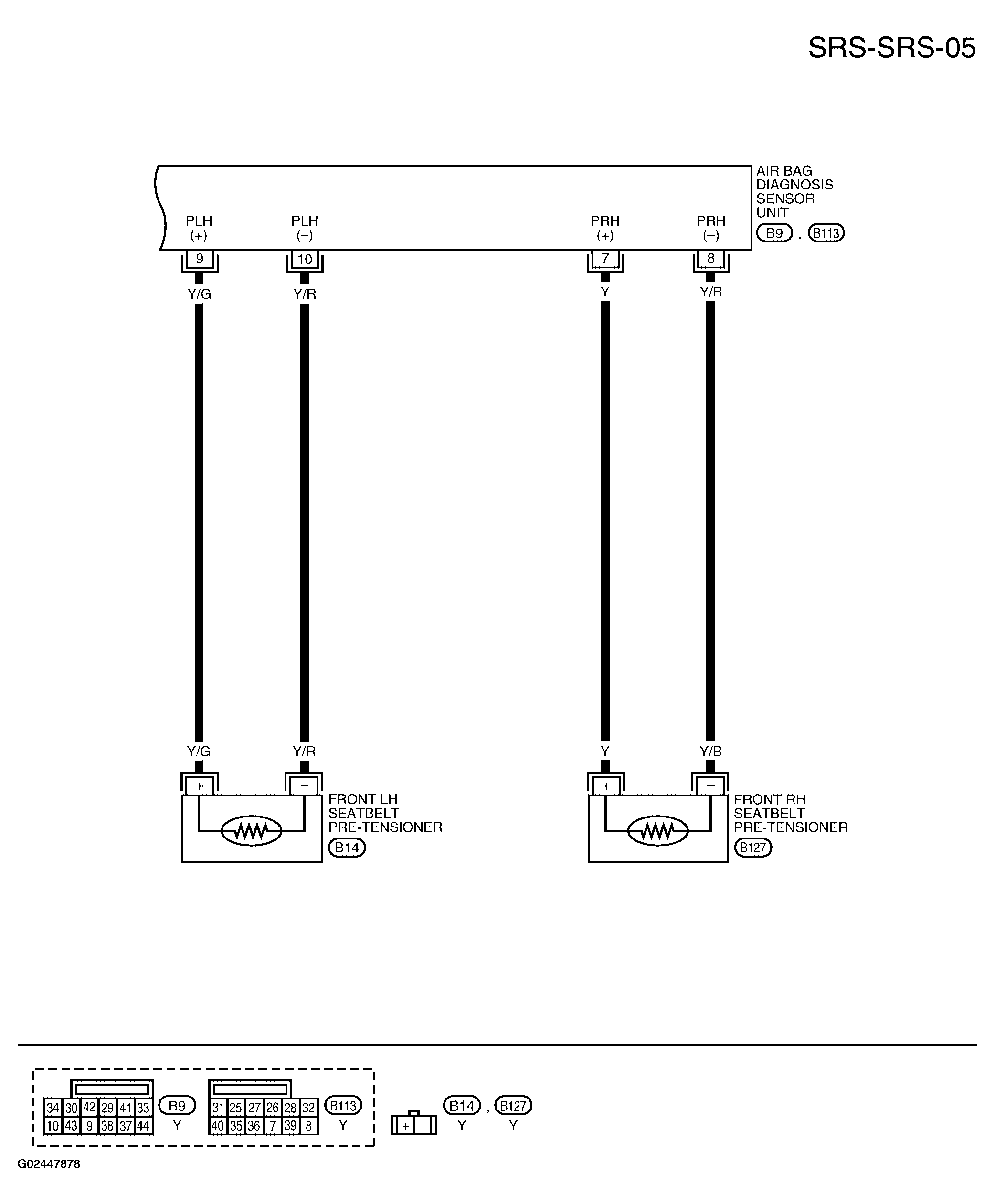

Fig 5: Wiring Diagram - (SRS-SRS-05)

Courtesy of NISSAN MOTOR CO., U.S.A.

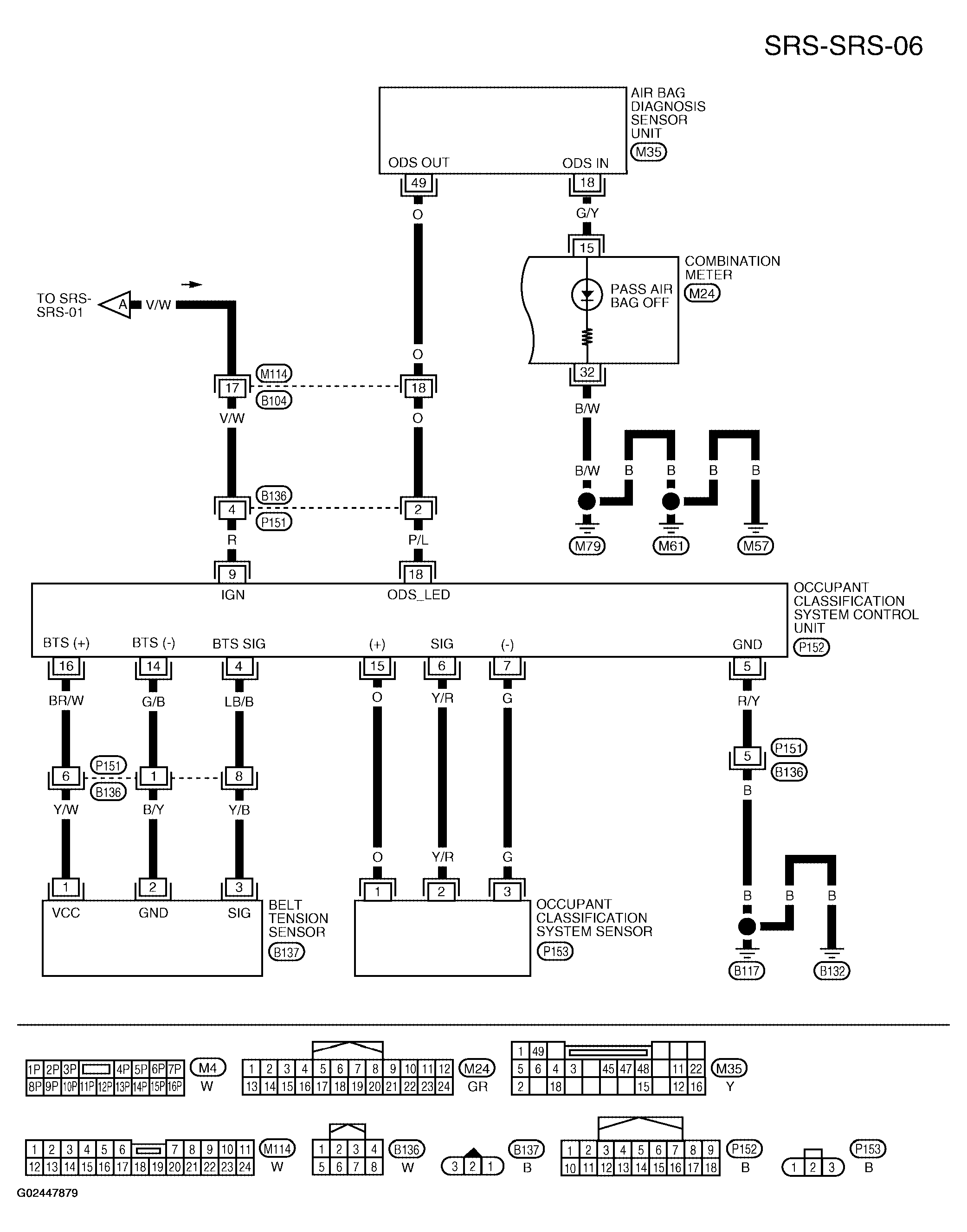

Fig 6: Wiring Diagram - (SRS-SRS-06)

Courtesy of NISSAN MOTOR CO., U.S.A.
