Warning Lamp Flash Code Chart

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

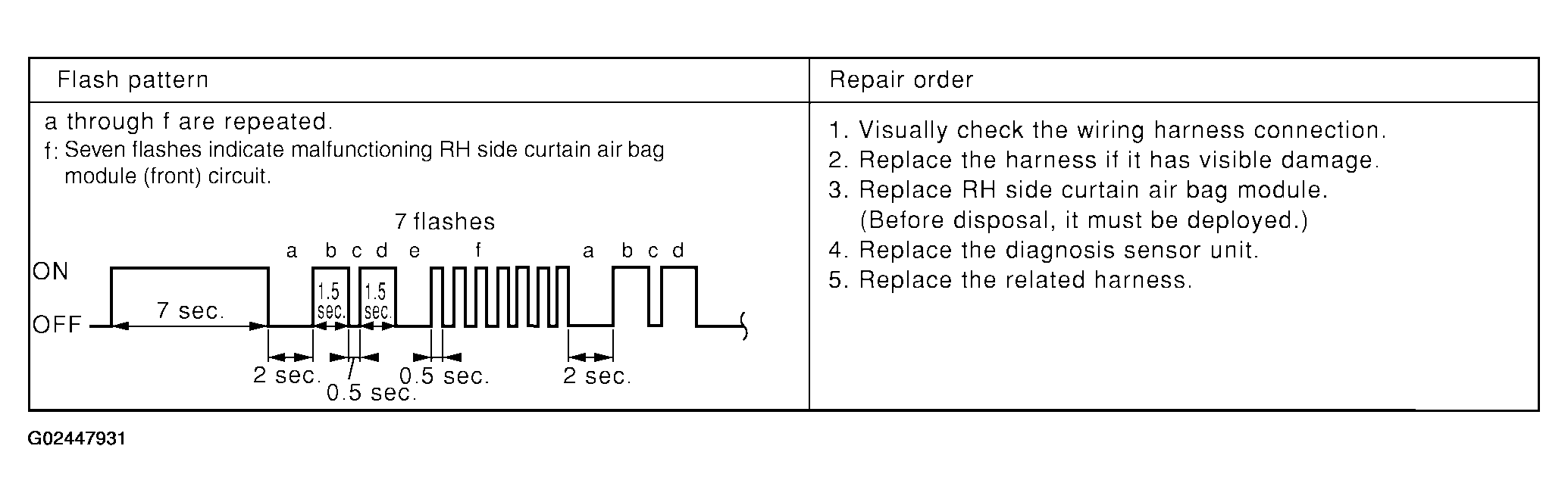

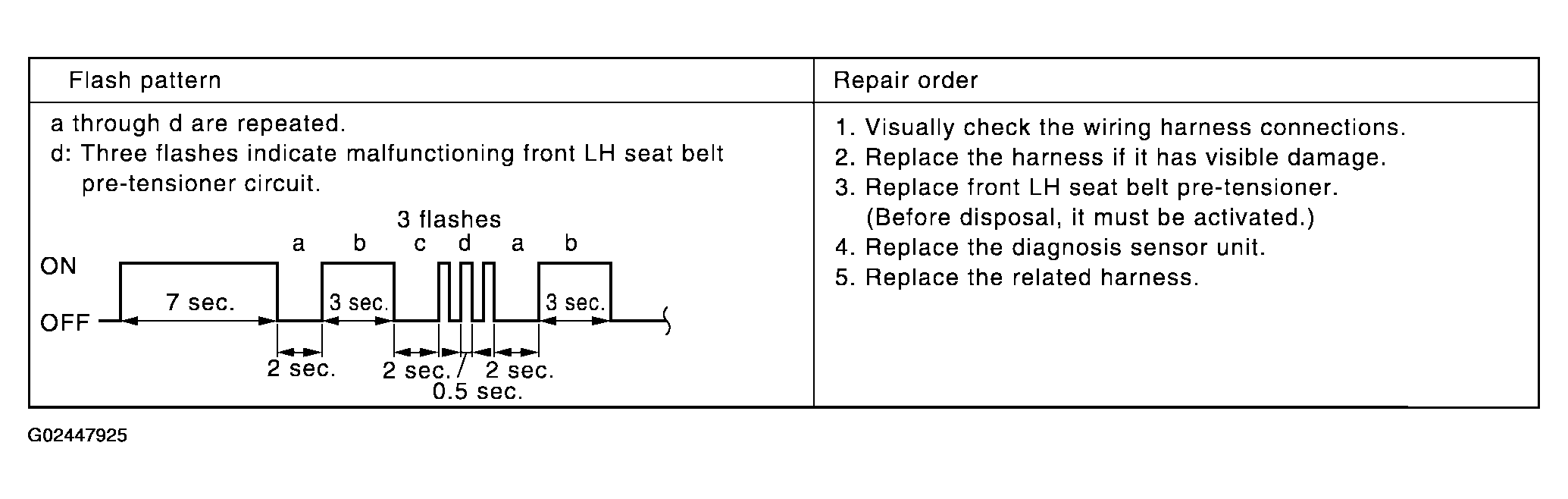

Fig 1: Warning Lamp Flash Code Chart (1 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

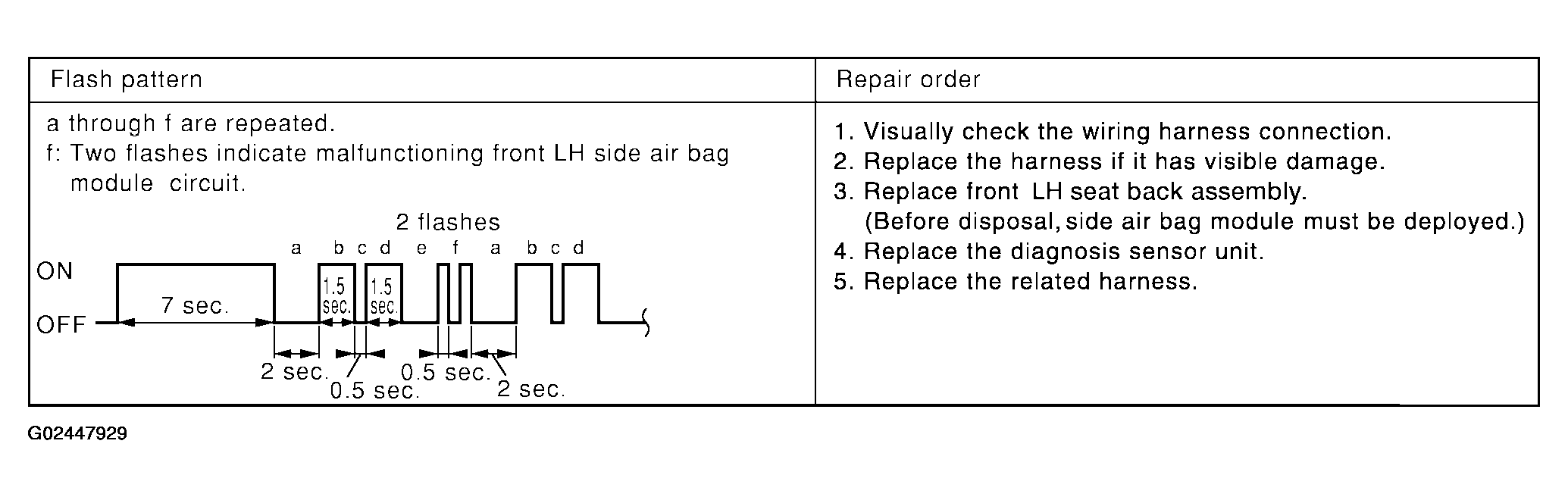

Fig 2: Warning Lamp Flash Code Chart (2 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

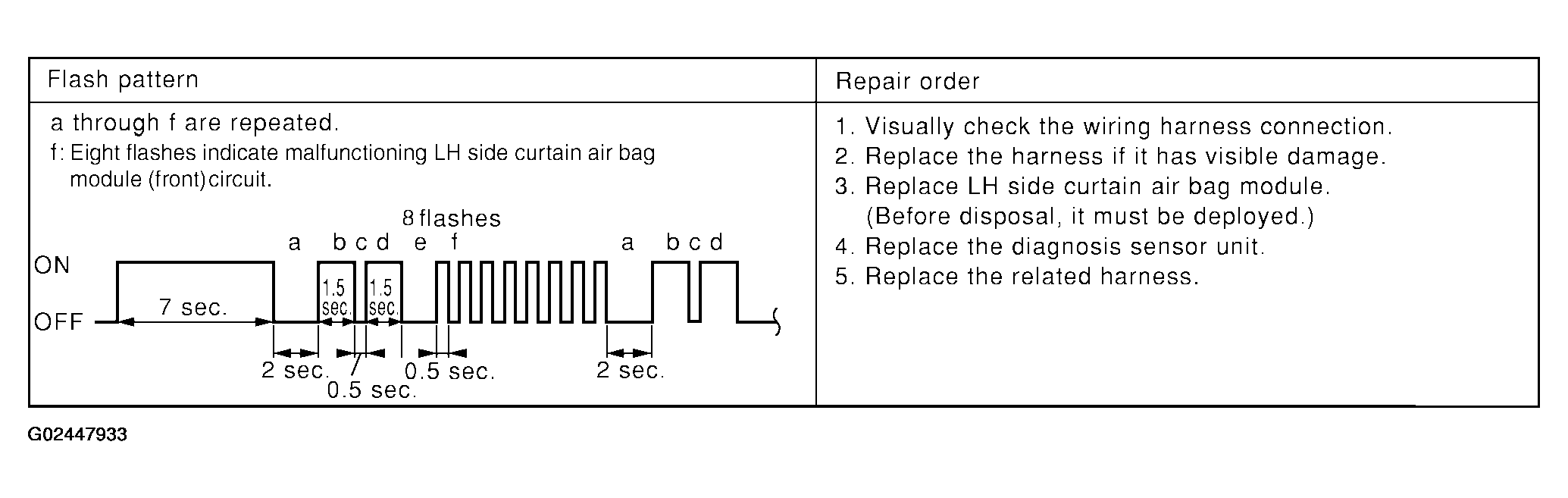

Fig 3: Warning Lamp Flash Code Chart (3 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

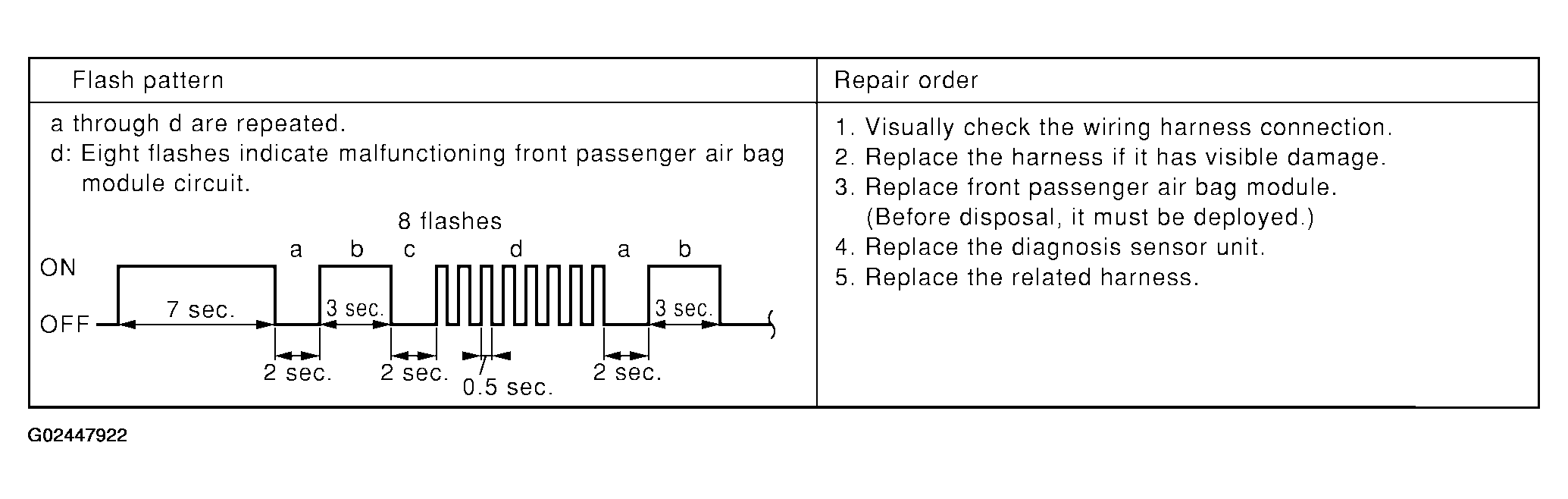

Fig 4: Warning Lamp Flash Code Chart (4 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

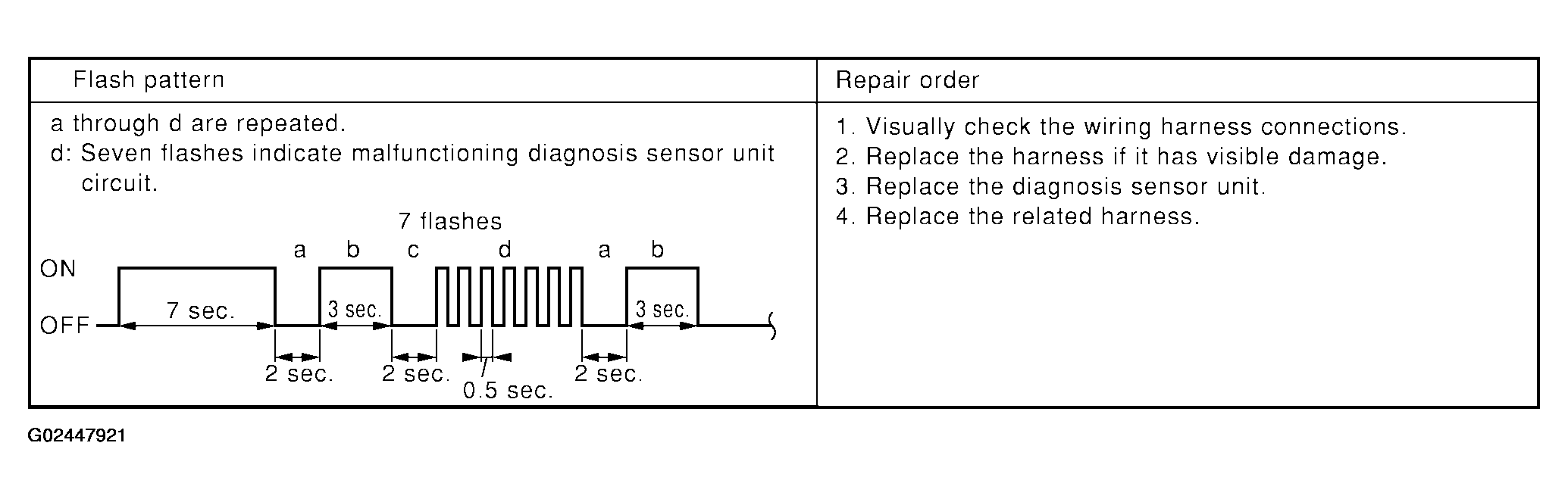

Fig 5: Warning Lamp Flash Code Chart (5 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

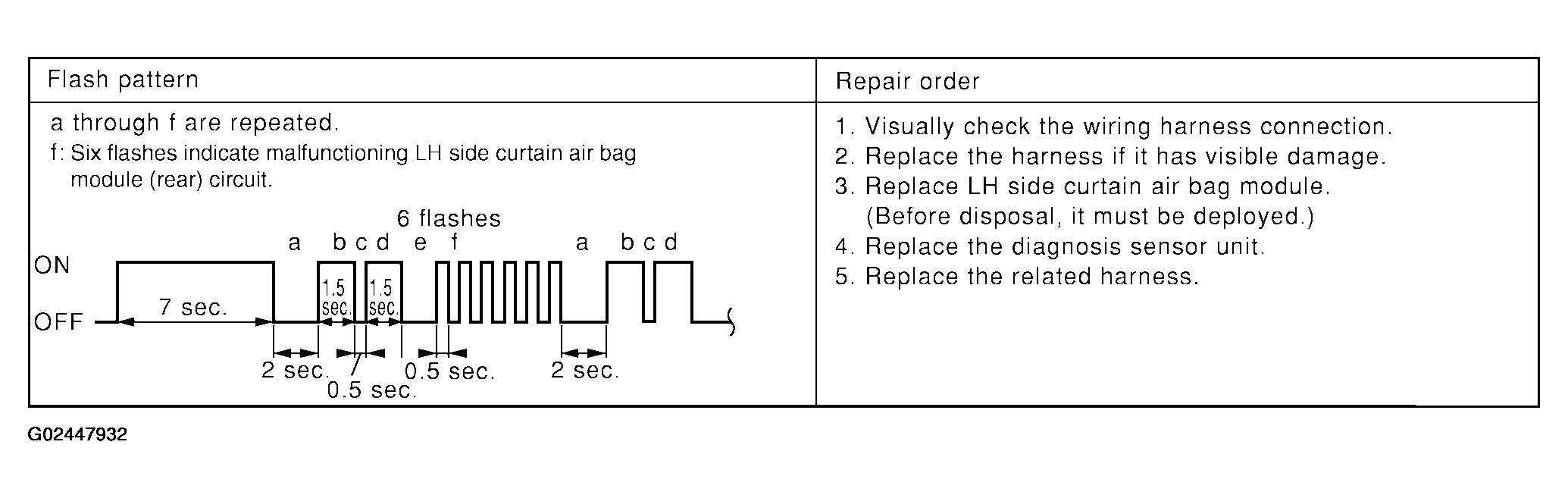

Fig 6: Warning Lamp Flash Code Chart (6 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

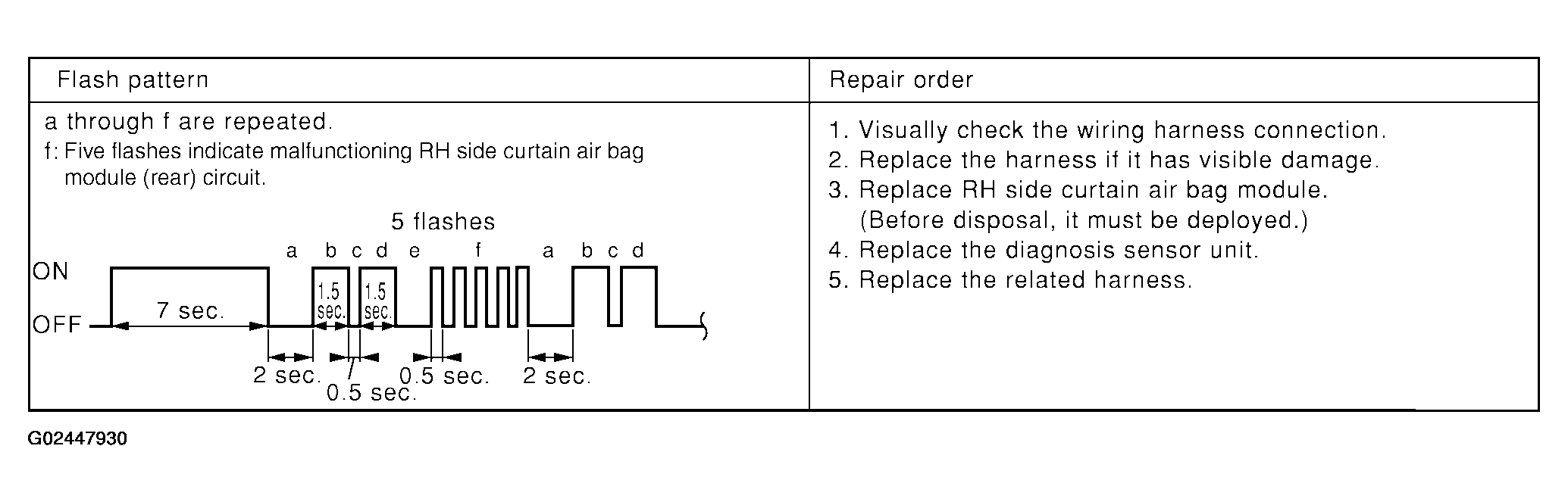

Fig 7: Warning Lamp Flash Code Chart (7 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

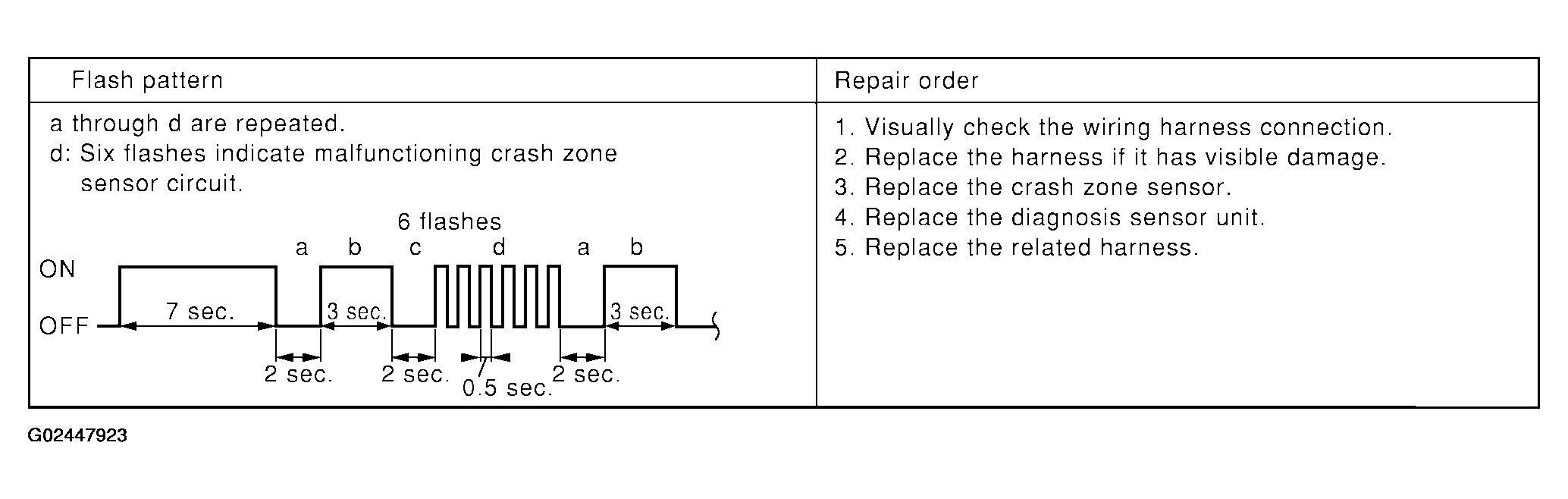

Fig 8: Warning Lamp Flash Code Chart (8 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Warning Lamp Flash Code Chart (9 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 10: Warning Lamp Flash Code Chart (10 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 11: Warning Lamp Flash Code Chart (11 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 12: Warning Lamp Flash Code Chart (12 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 13: Warning Lamp Flash Code Chart (13 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Warning Lamp Flash Code Chart (14 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Warning Lamp Flash Code Chart (15 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Warning Lamp Flash Code Chart (16 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 17: Warning Lamp Flash Code Chart (17 Of 17)

Courtesy of NISSAN MOTOR CO., U.S.A.
