Check SRS Intermittent Malfunction Using CONSULT-II-Diagnosis Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II to data link connector.

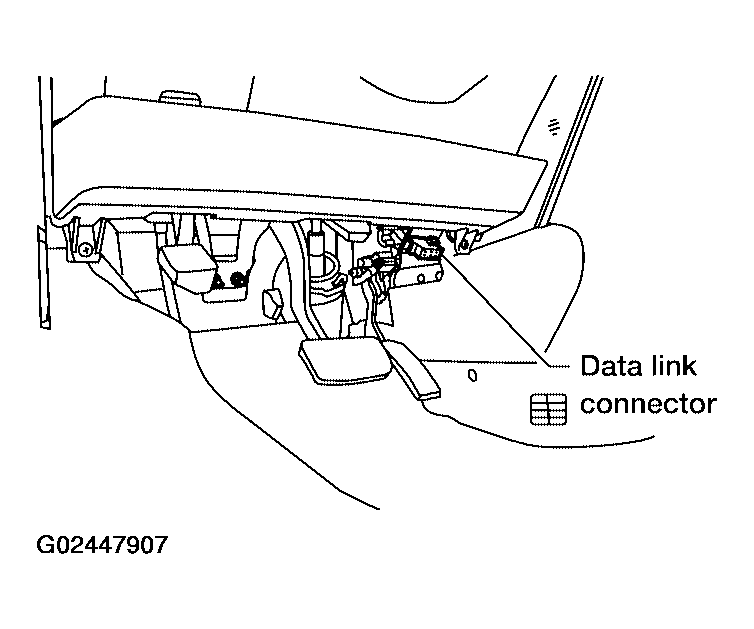

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

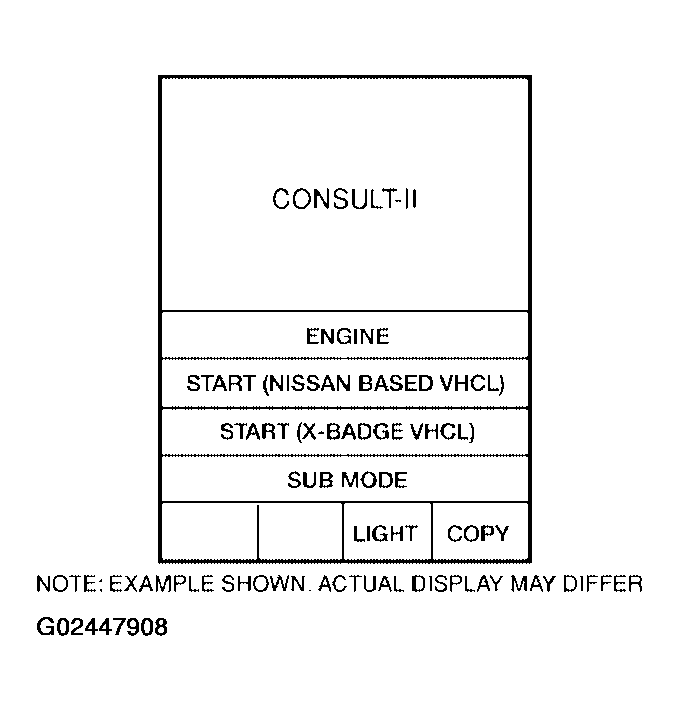

Fig 2: CONSULT-II Display - "START (NISSAN BASED VHCL)" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "AIR BAG".
If "AIR BAG" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

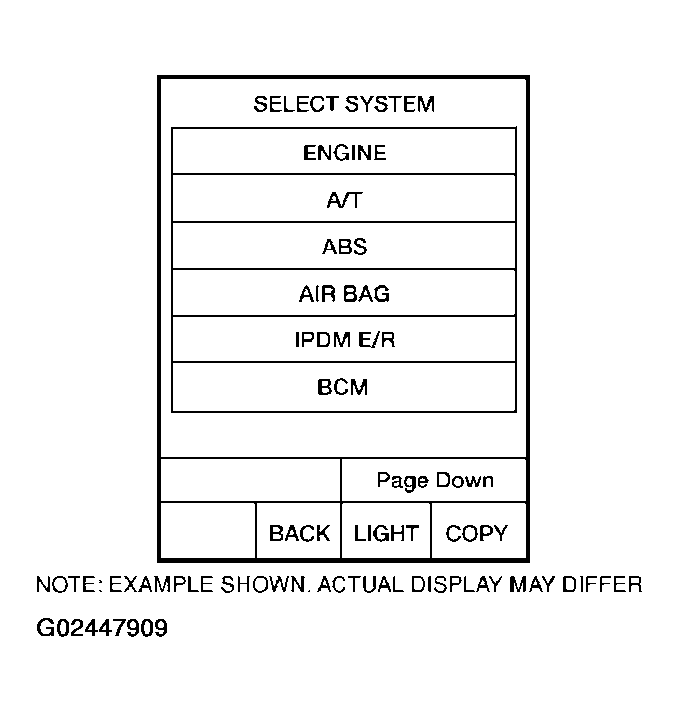

Fig 3: CONSULT-II Display - "AIR BAG" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SELF-DIAG [PAST]".

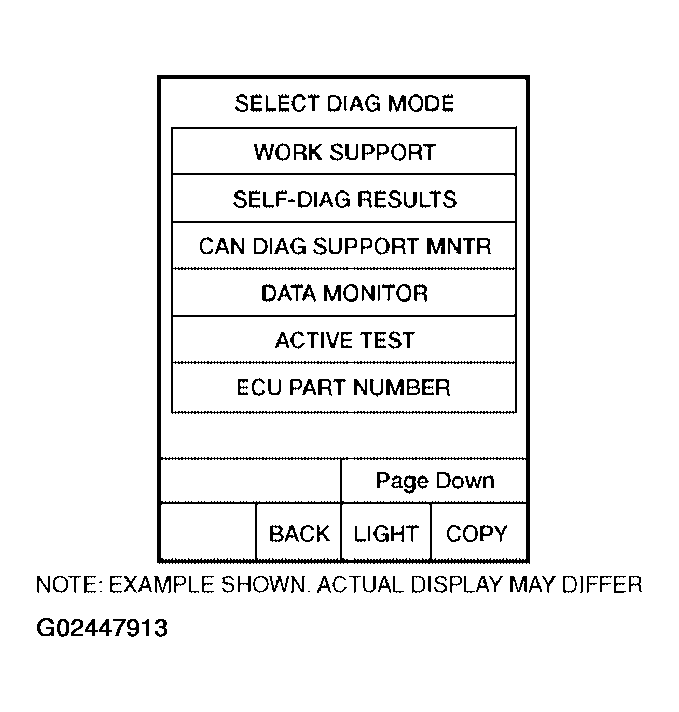

Fig 4: CONSULT-II Display - "SELECT DIAG MODE" Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.

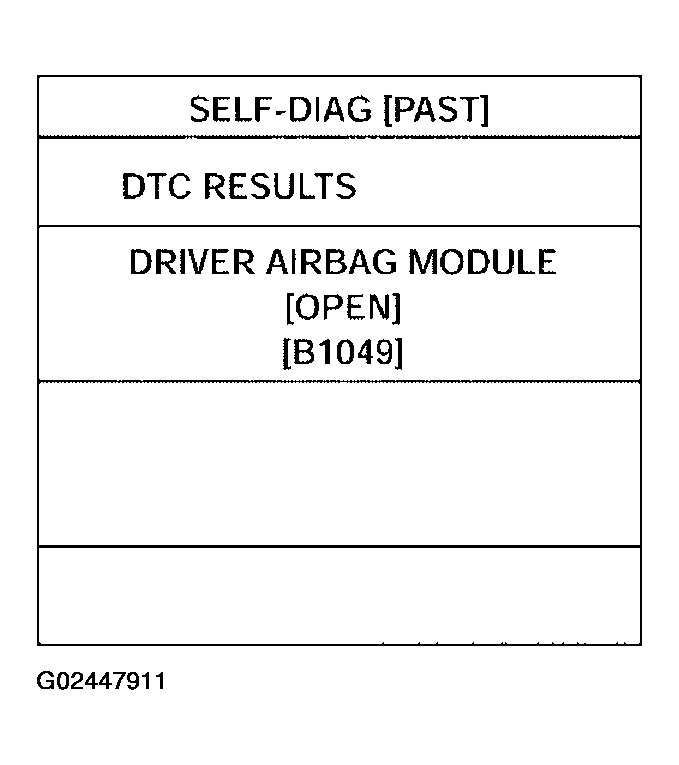

Fig 5: CONSULT-II Display - "SELF-DIAG [PAST]" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.

If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".

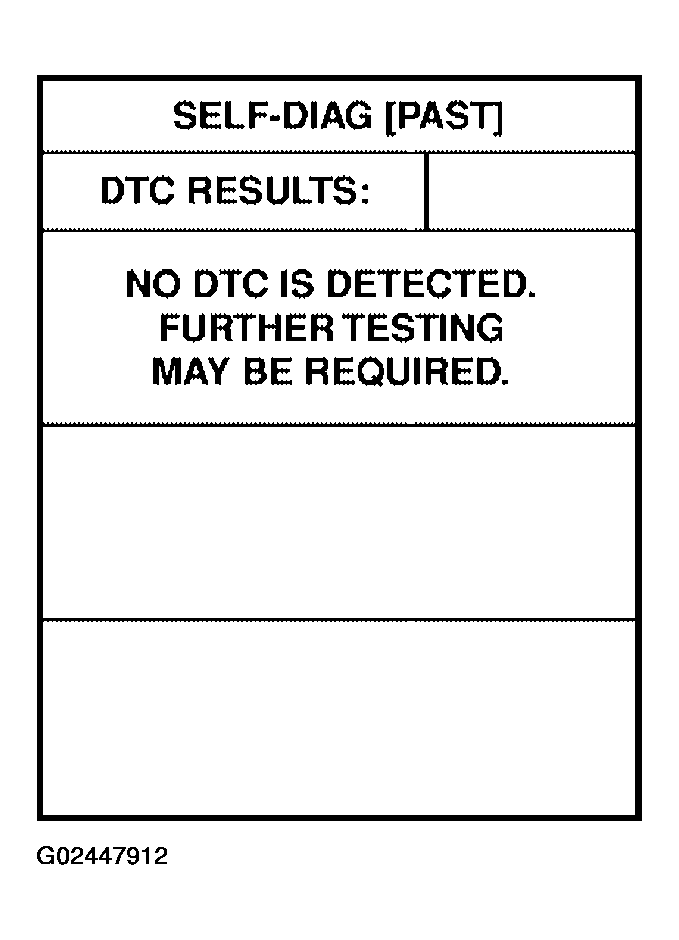

Fig 6: CONSULT-II Display - "SELF-DIAG [PAST]" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "TROUBLE DIAG RECORD".
NOTE: With "TROUBLE DIAG RECORD", diagnosis results previously erased by a reset operation can be displayed.

Fig 7: CONSULT-II Display - "SELECT DIAG MODE" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Diagnostic code is displayed on "TROUBLE DIAG RECORD".
Touch "PRINT".
Compare diagnostic codes to "CONSULT-II Diagnostic Code Chart ("CONSULT-II DIAGNOSTIC CODE CHART ("SELF-DIAG [PAST]" OR "TROUBLE DIAG RECORD") " or "TROUBLE DIAG RECORD")".
Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears.
Turn ignition switch OFF -->, then turn off and disconnect CONSULT-II, and both battery cables.

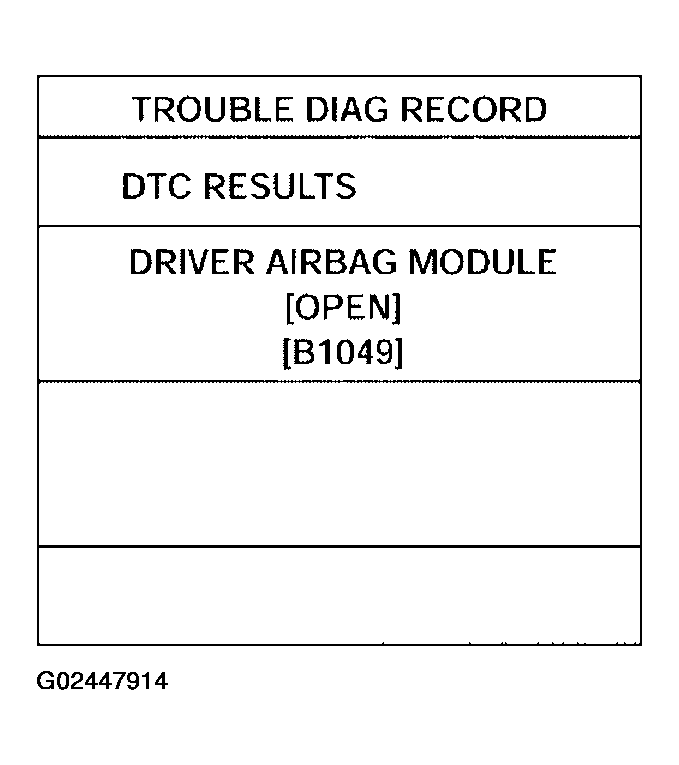

Fig 8: CONSULT-II Display - "TROUBLE DIAG RECORD" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
Repair the system as outlined by the "Repair order" in "Intermittent Malfunction Diagnostic Code Chart", that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to the REMOVAL AND INSTALLATION procedure for the appropriate component.
Go to "DIAGNOSTIC PROCEDURE 3 ", for final checking.
