Final Check of SRS Using CONSULT-II-Diagnosis Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. After repairing SRS, connect both battery cables.
  2. Connect CONSULT-II to data link connector.
  3. Turn ignition switch ON.

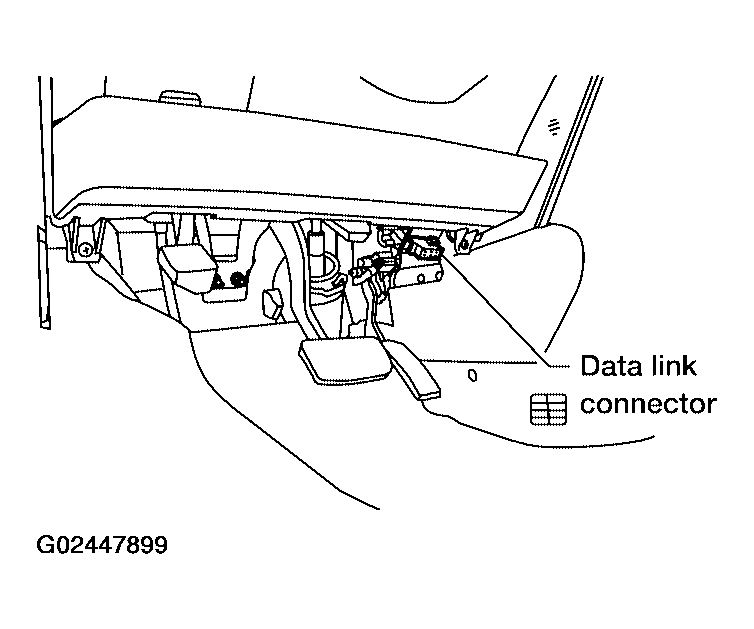

    Fig 1: Identifying Data Link Connector
    G02447899Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "START (NISSAN BASED VHCL)".

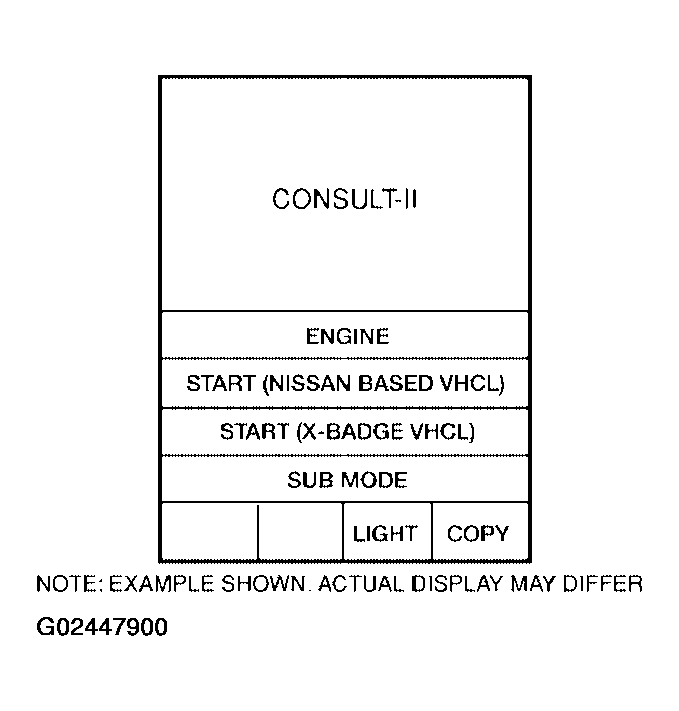

    Fig 2: CONSULT-II Display - "START (NISSAN BASED VHCL)" Mode
    G02447900Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "AIR BAG".

    If "AIR BAG" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

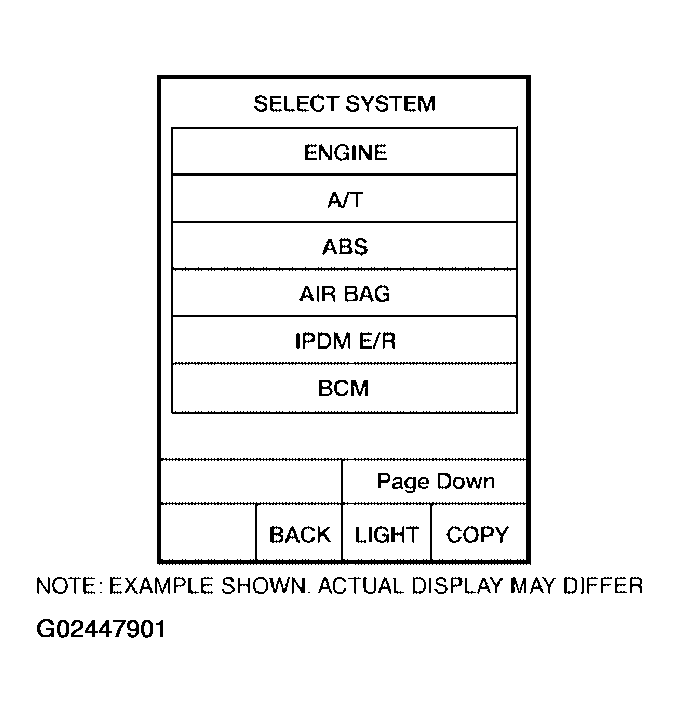

    Fig 3: CONSULT-II Display - "AIR BAG" Mode
    G02447901Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "SELF-DIAG [CURRENT]".

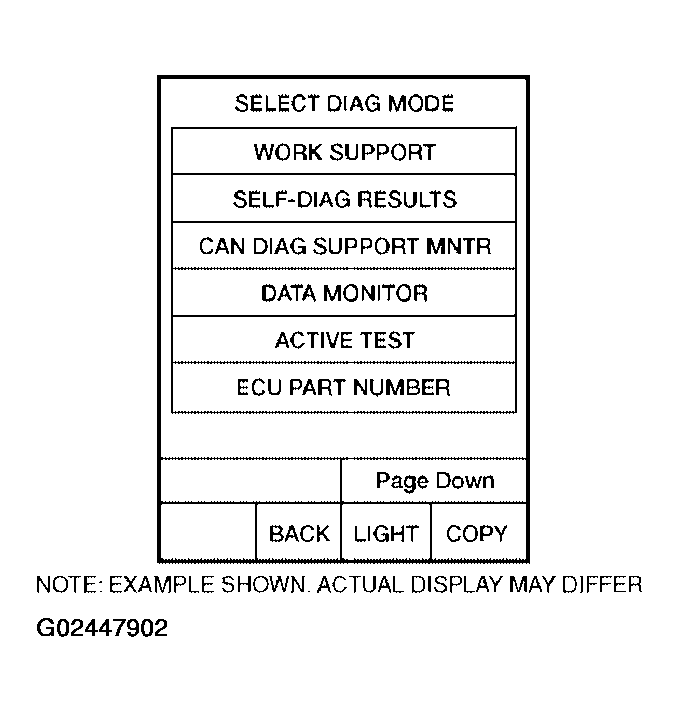

    Fig 4: CONSULT-II Display - "SELF-DIAG [CURRENT]" Mode
    G02447902Courtesy of NISSAN MOTOR CO., U.S.A.
  7. If no malfunction is detected on "SELF-DIAG [CURRENT]", repair of SRS is completed. Go to step 8.

    If any malfunction is detected on "SELF-DIAG [CURRENT]", the malfunctioning part is not repaired completely or another malfunctioning part is detected. Go to "DIAGNOSTIC PROCEDURE 2 ", and repair malfunctioning part completely.

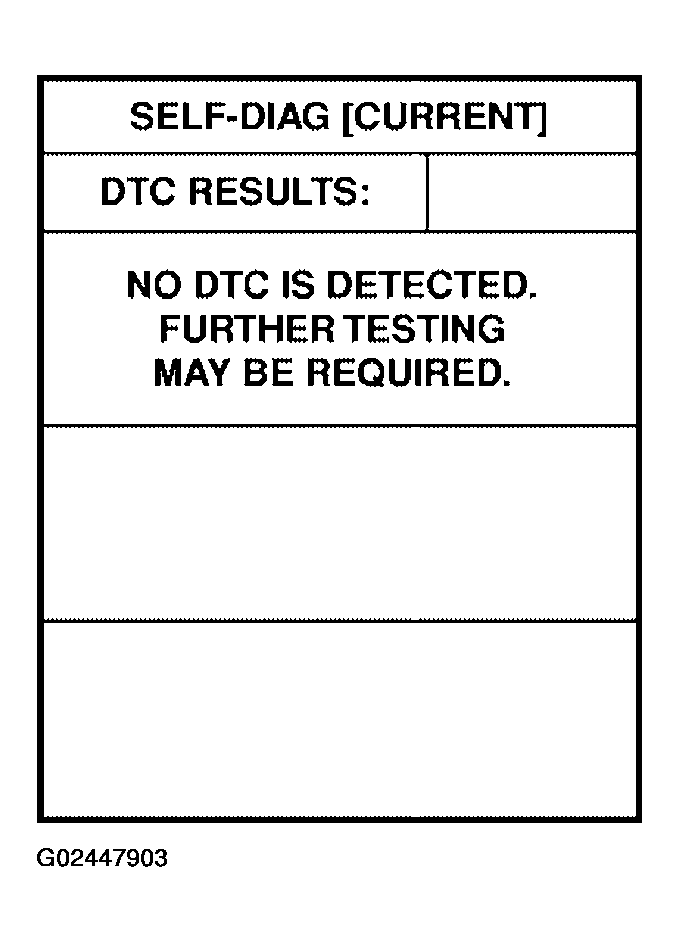

    Fig 5: CONSULT-II Display - "SELF-DIAG [CURRENT]" Mode
    G02447903Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "ERASE".
    NOTE: Touch "ERASE" to clear the memory of the malfunction ("SELF-DIAG [PAST]").

    If the memory of the malfunction in "SELF-DIAG [PAST]" is not erased, the User mode shows the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

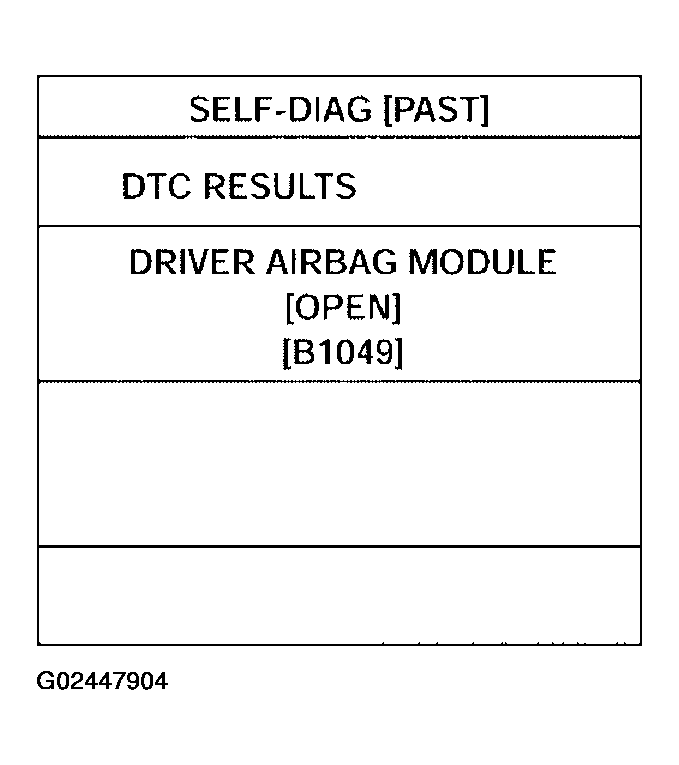

    Fig 6: CONSULT-II Display - "SELF-DIAG [PAST]" Mode
    G02447904Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" key of CONSULT-II to "SELECT DIAG MODE" screen. Touch "SELF-DIAG [PAST]".

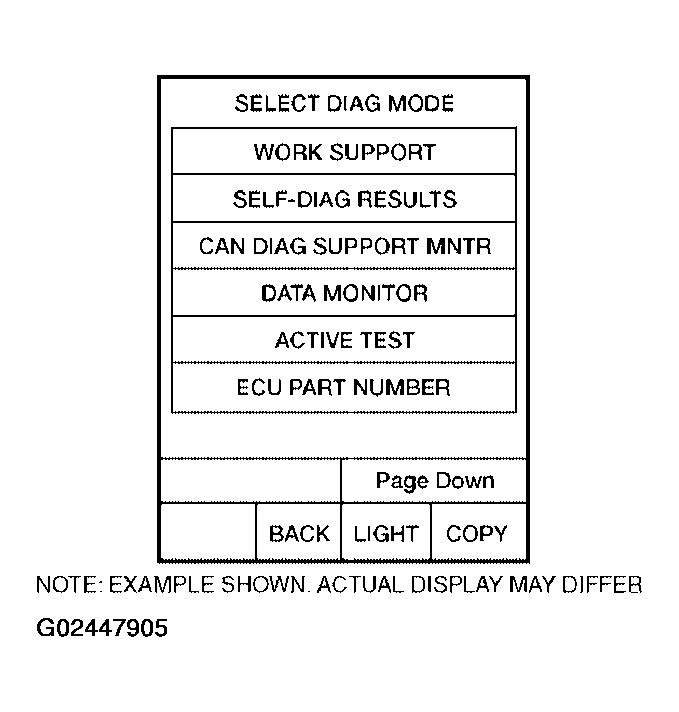

    Fig 7: CONSULT-II Display - "SELECT DIAG MODE" Screen
    G02447905Courtesy of NISSAN MOTOR CO., U.S.A.
  10. Check that no malfunction is detected on "SELF-DIAG [PAST]".
  11. Touch "BACK" key of CONSULT-II until "SELECT SYSTEM" appears in order to return to User mode from Diagnosis mode.
  12. Turn ignition switch OFF then turn off and disconnect CONSULT-II.
  13. Go to "SRS OPERATION CHECK " "Checking SRS Operation Using "CHECKING SRS OPERATION USING "AIR BAG" WARNING LAMP-USER MODE" Warning Lamp-User Mode".

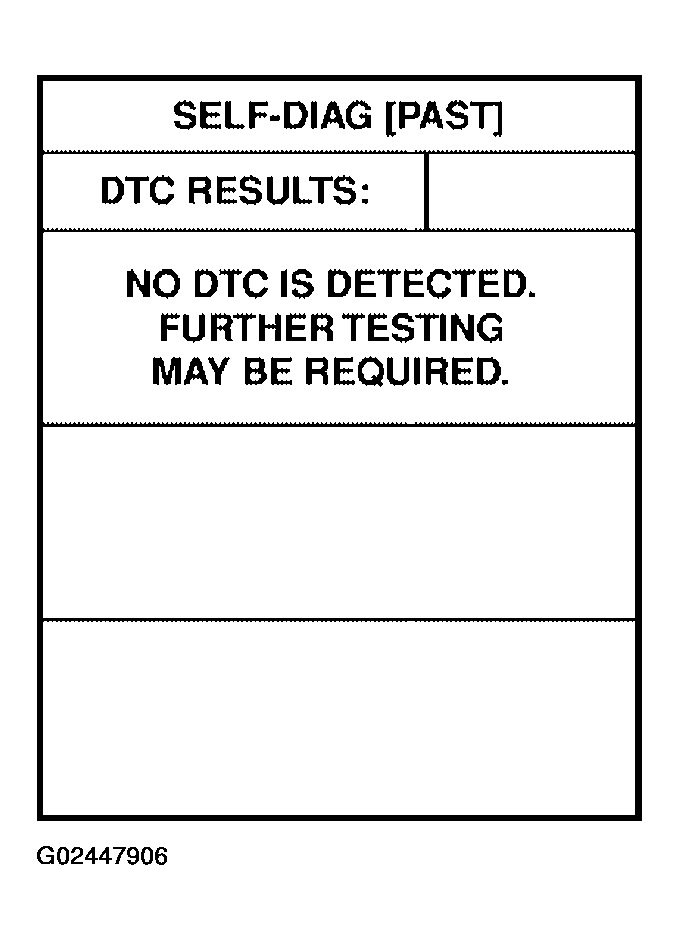

    Fig 8: CONSULT-II Display - "SELF-DIAG [PAST]" Mode
    G02447906Courtesy of NISSAN MOTOR CO., U.S.A.
