How To Erase Self-Diagnosis Results

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

"SELF-DIAG [CURRENT]"
A current self-diagnosis result is displayed on the CONSULT-II screen in real time.

After the malfunction is repaired completely, no malfunction is detected on "SELF-DIAG [CURRENT]".

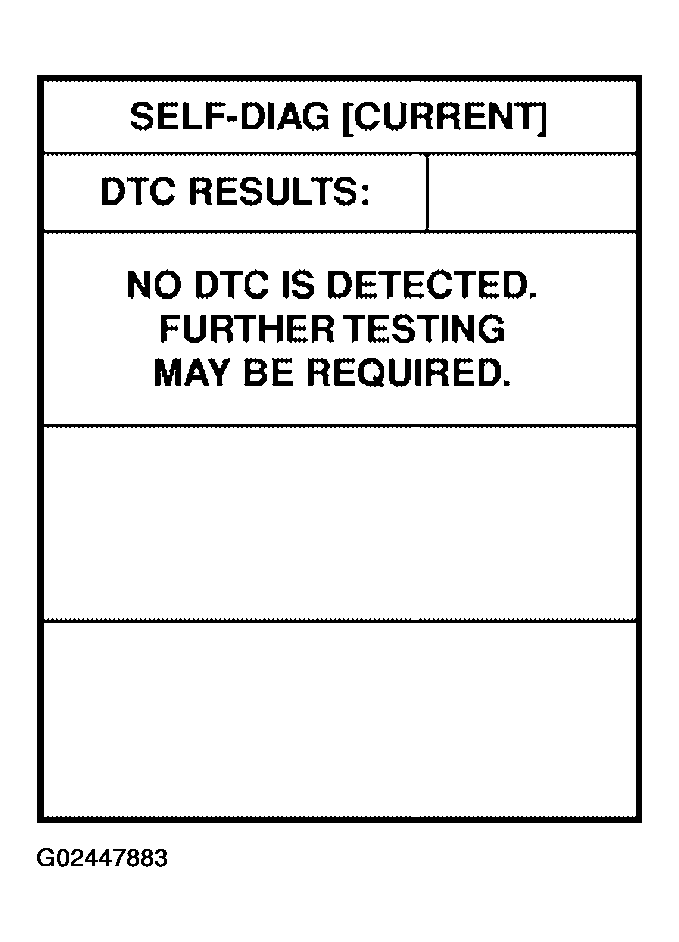

Fig 1: Displaying "SELF-DIAG [CURRENT]" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
"SELF-DIAG [PAST]"
Return to the "SELF-DIAG [CURRENT]" CONSULT-II screen by touching "BACK" key of CONSULT-II and select "SELF-DIAG [CURRENT]" in SELECT DIAG MODE. Touch "ERASE" in "SELF-DIAG [CURRENT]" mode.

NOTE: If the memory of the malfunction in "SELF-DIAG [PAST]" is not erased, the User mode will continue to show the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

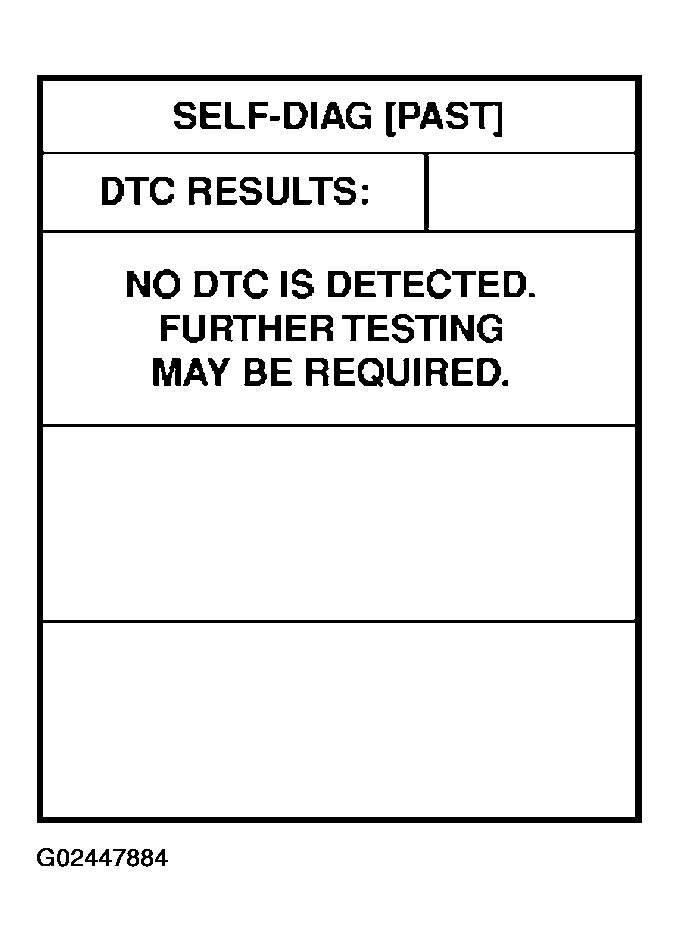

Fig 2: Displaying "SELF-DIAG [PAST]" Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
"TROUBLE DIAG RECORD"
The memory of "TROUBLE DIAG RECORD" cannot be erased.
