Deployment Procedures For Air Bag Module (Outside Of Vehicle): Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Unless the vehicle is being scrapped, deploying the air bag in the vehicle is not recommended. This may cause damage to the vehicle interior.

Anchor the deployment Tool in a vise secured to a firm foundation during deployment.

Tool number KV99105300 (J-41246)

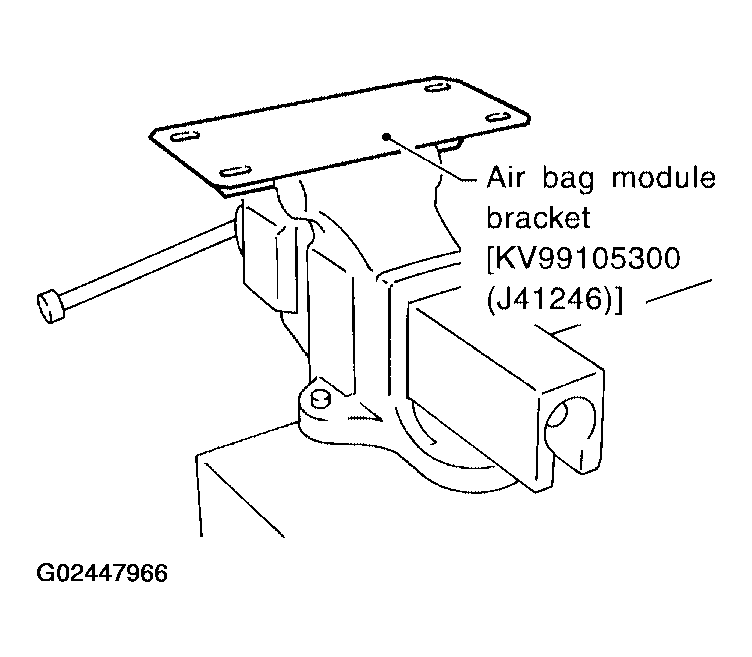

Fig 1: Anchoring Air Bag Module Bracket In Vise

Courtesy of NISSAN MOTOR CO., U.S.A.
