Deployment of Front Passenger Air Bag Module (Outside of vehicle)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Firmly secure the Tool A in a vise, then secure Tool B to Tool A.
- Tool number
  - A: KV99105300 (J-41246)
  - B: J-39401-100

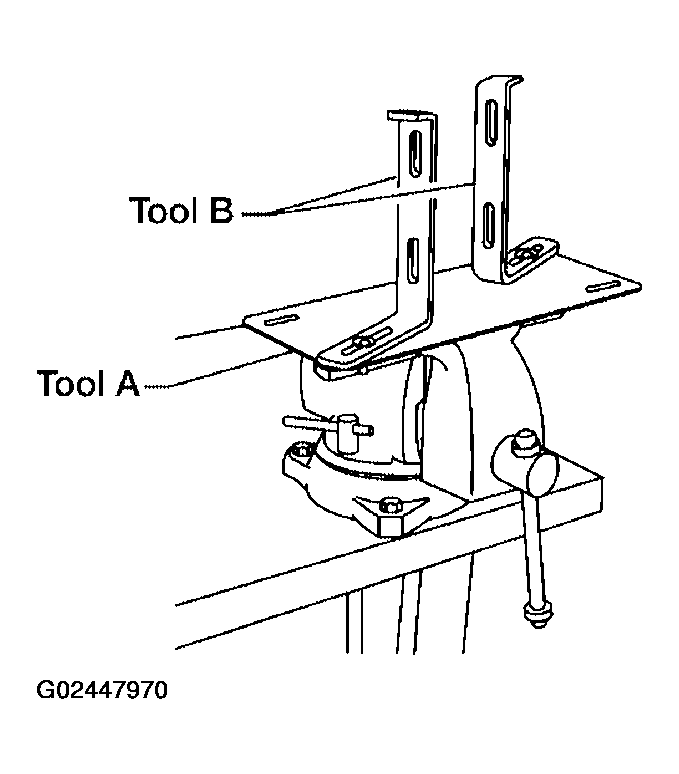

Fig 1: Securing Air Bag Module Bracket In Vise
Courtesy of NISSAN MOTOR CO., U.S.A.
Match the two holes in the Tool and front passenger air bag module and fix them with two bolts.
- Tool number J-39401-100

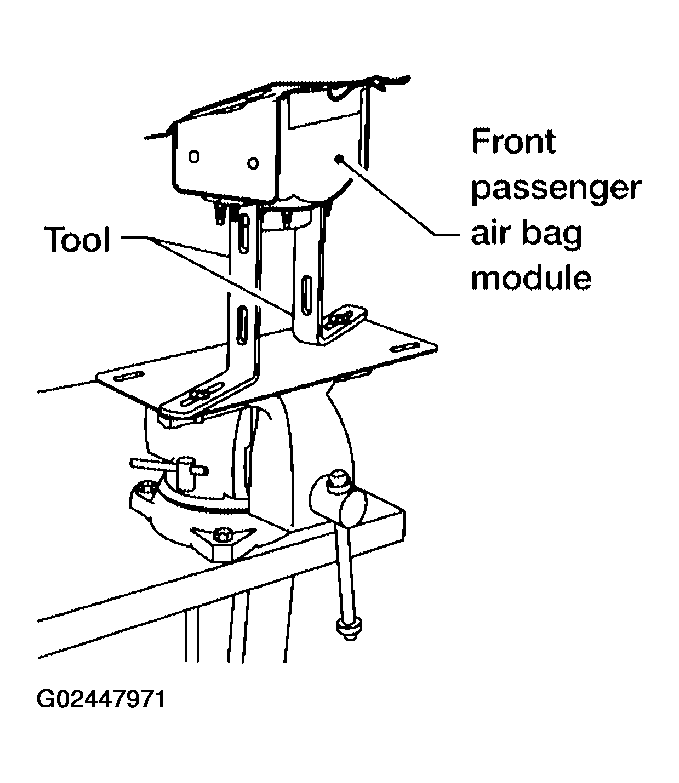

Fig 2: Securing Front Passenger Air Bag Module To Bracket
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect deployment tool to front passenger air bag module using Tool.
- Tool number KV99105300 (J-38381-80)

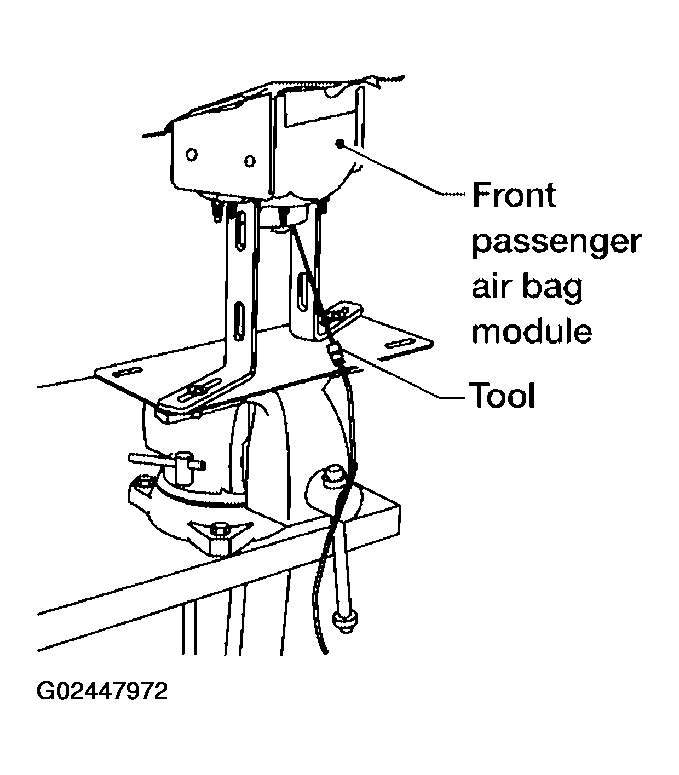

Fig 3: Connecting Deployment Tool To Front Passenger Air Bag Module
Courtesy of NISSAN MOTOR CO., U.S.A.
Connect red clip of the Tool to battery positive terminal and black clip to negative terminal.

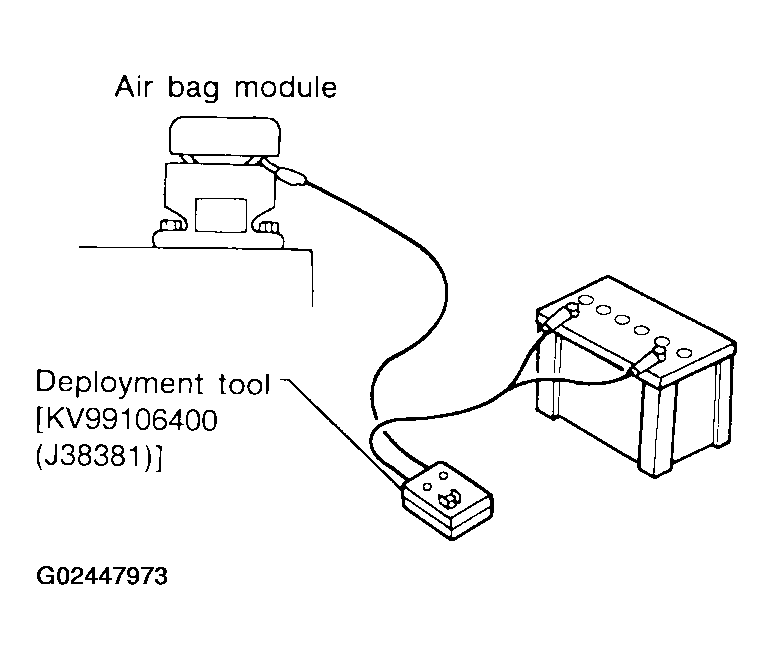

Fig 4: Connecting Red Clip Of Tool To Battery Positive Terminal & Black Clip To Negative Terminal
Courtesy of NISSAN MOTOR CO., U.S.A.
- Tool number KV99106400 (J-38381)
The lamp on the right side of the Tool, marked "deployment tool power", should glow green, not red.
Press the button on the Tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.
CAUTION:
When deploying the front passenger air bag module,
- Stand at least 5 m (16 ft) away from the air bag module. Do not stand on the deploying side.
- Make sure the air bag module has sufficient clearance to inflate. The air bag inflates upward and outward from the high side of the air bag module. Be sure to point high side towards the open area away from shelves, wall hangings, etc.
