Deployment of Driver Air Bag Module (Outside of vehicle)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using wire, secure air bag module to the Tool at two places.
    • Tool number KV99105300 (J-41246)
    CAUTION: Use wire of at least 1 mm (0.04 in) diameter.
  2. Firmly secure Tool with air bag module attached, in a vise.
    • Tool number KV99105300 (J-41246)

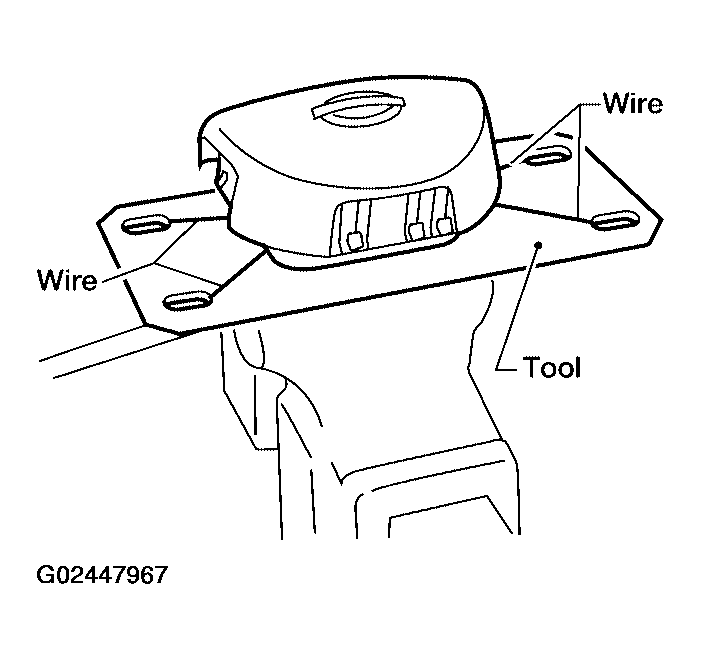

    Fig 1: Securing Tool With Air Bag Module Attached
    G02447967Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Connect deployment Tool A to air bag module connector using Tool B.
    • Tool number
      • A: KV99106400 (J-38381)
      • B: KV99105300 (J-38381-80)

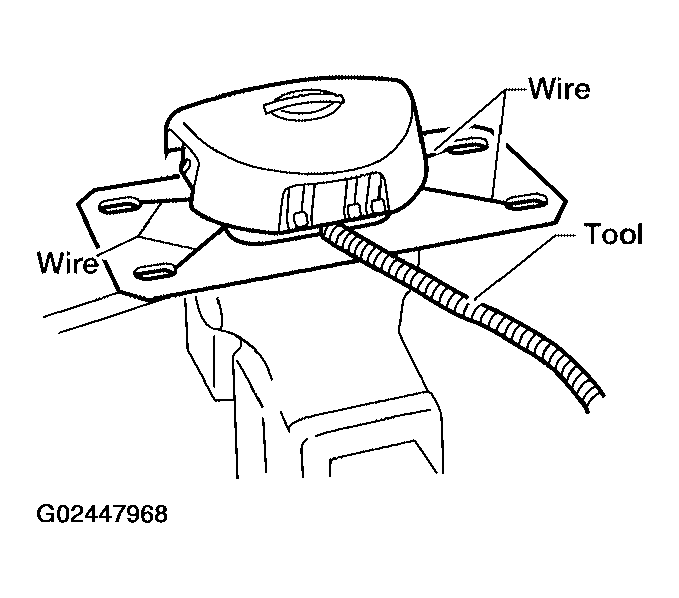

    Fig 2: Securing Air Bag Module To Air Bag Module Bracket With Wire
    G02447968Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Connect red clip of Tool to battery positive terminal and black clip to negative terminal.
    • Tool number KV99106400 (J-38381)

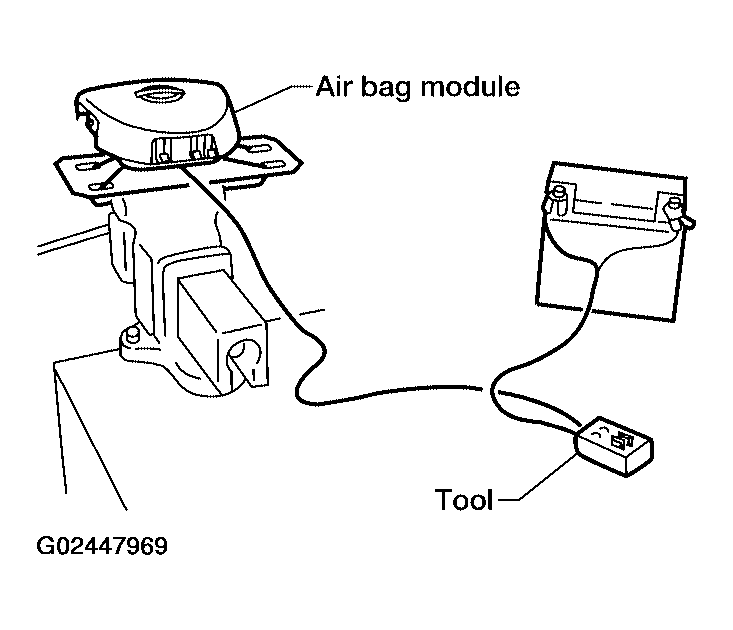

    Fig 3: Connecting Deployment Tool Adapter To Air Bag Module Connector
    G02447969Courtesy of NISSAN MOTOR CO., U.S.A.
  5. The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
  6. Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module will deploy.
    CAUTION: When deploying the driver air bag module, stand at least 5 m (16 ft) away from the air bag module.
