Deployment Of Air Bag Modules And Seat Belt Pre-TENSIONERS While Mounted In Vehicle
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
When disposing of a vehicle, deploy air bag modules and seat belt pre-tensioners while they are mounted in vehicle.
CAUTION:
When deploying air bag module or seat belt pre-tensioner, ensure vehicle is empty.
- Disconnect both the vehicle battery cables and wait 3 minutes.
- Disconnect all air bag module and seat belt pre-tensioner harness connectors.

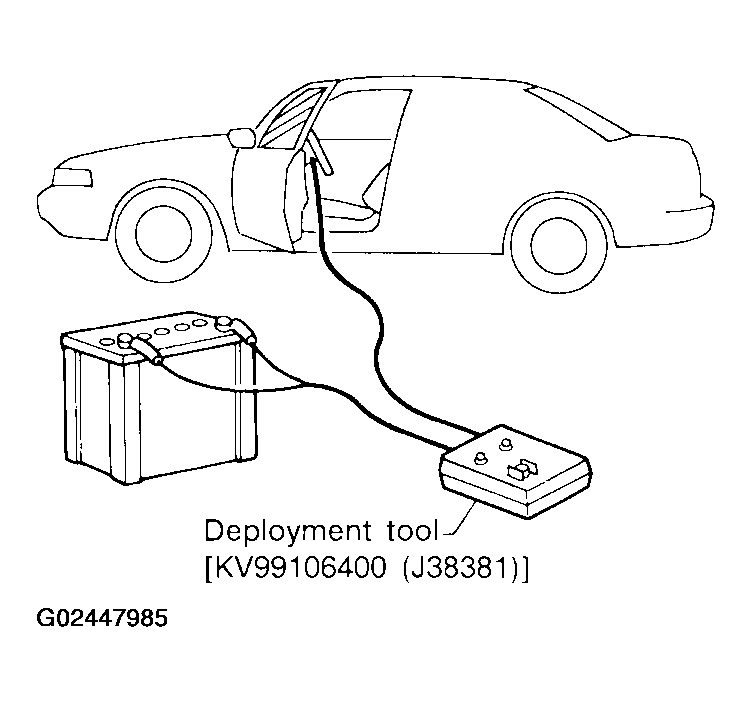

- Connect deployment tool [SST: KV99106400 (J-38381)] to air bag module or seat belt pre-tensioner.
For driver air bag module, use deployment tool adapter (J-38381-80).
For front passenger air bag module, use deployment tool adapter (J-38381-80).
For side curtain air bag module, use deployment tool adapter (J-38381-80).
For side air bag module, use deployment tool adapter [SST: KV99109000 (J-44230)].
For seat belt pretensioner, use deployment tool adapter (J-38381-80).
- Connect red clip of deployment tool to battery positive terminal and black clip to negative terminal.
- The lamp on the right side of the tool, marked "deployment tool power", should glow green, not red.
- Press the button on the deployment tool. The left side lamp on the tool, marked "air bag connector voltage", will illuminate and the air bag module or seat belt pre-tensioner will deploy.CAUTION: Deploy only one air bag module or seat belt pre-tensioner at a time.
